6-60 Designjet Z Series — Service Manual
Removal and Installation
Service Station

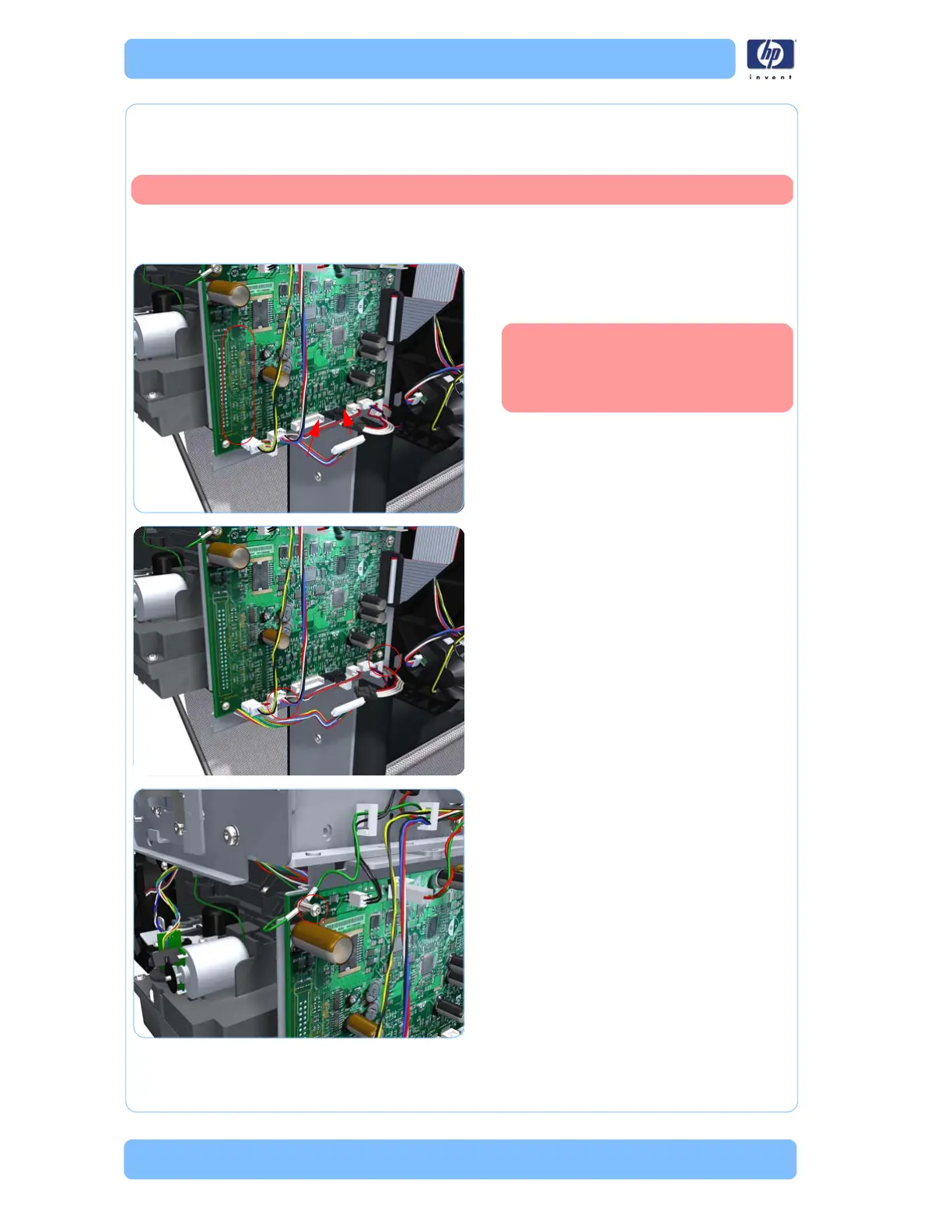

Removal
1. Remove the Right Cover (refer to page 6-
27).
2. Disconnect the Ink Supply Station ribbon
connector and two lower connectors from
the PrintMech PCA.
3. Unroute the two cables disconnected in
step
2 from the two cable clamps below
the PrintMech PCA.
4. Remove the grounding cable attachment
screw from the PrintMech PCA.
Switch off the printer and remove the power cable.
The Ink Supply Station ribbon
connector has to be
disconnected so the other
cables can an be unrouted
To Next Page
