Designjet Z Series — Service Manual 6-61
Removal and Installation - Service Station

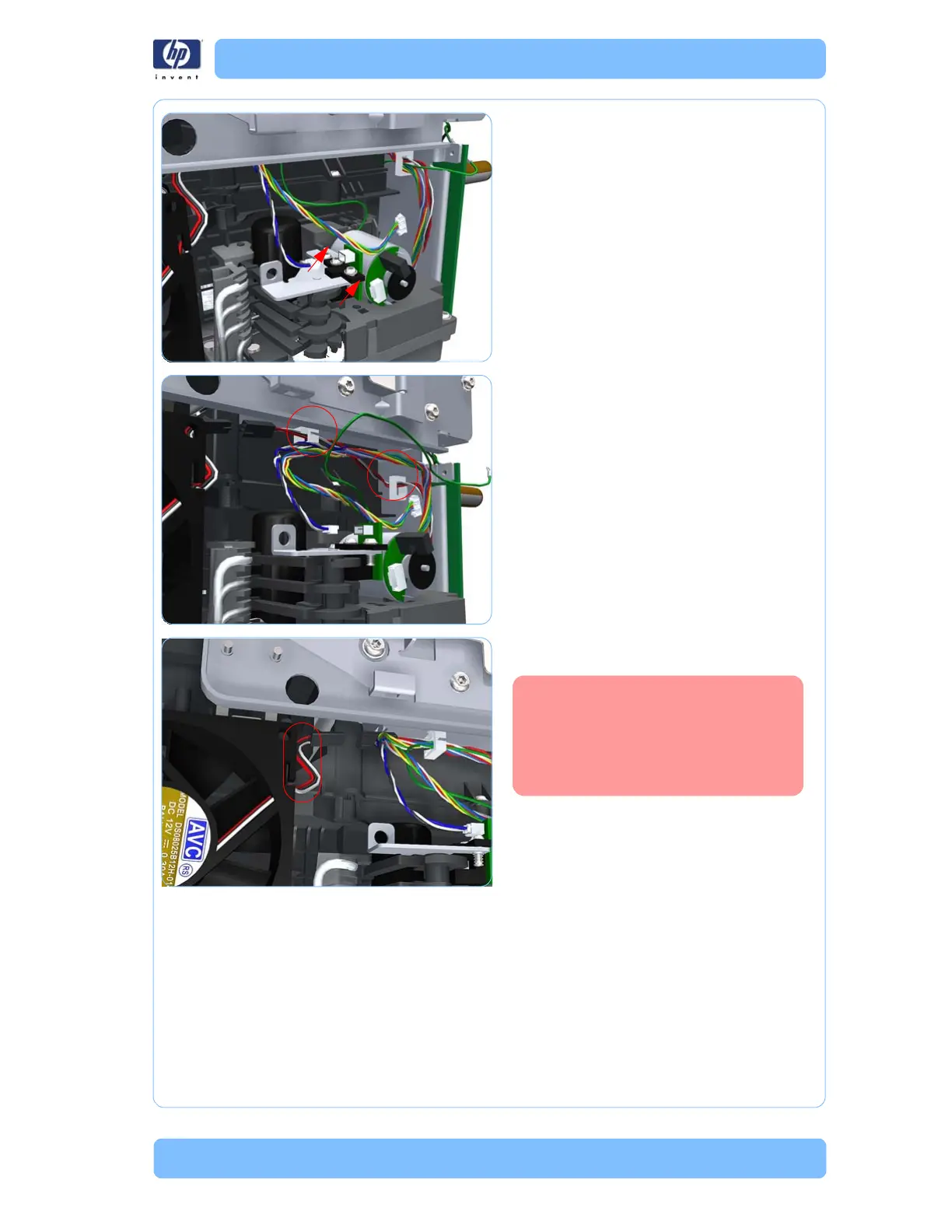

5. Disconnect connector from the Drop
Detector Motor and Drop Detector Sensor.
6. Unroute the cables disconnected in steps 4
and 5 from the two cable clamps.
7. Disconnect the Aerosol Fan Assembly
inline connector.
Some printers function without an
aerosol fan. If the printer does not
have an aerosol fan, make the
inline connection during
installation even though there is
no fan.
