Designjet Z Series — Service Manual 3-47
Service Tests (Diagnostics)

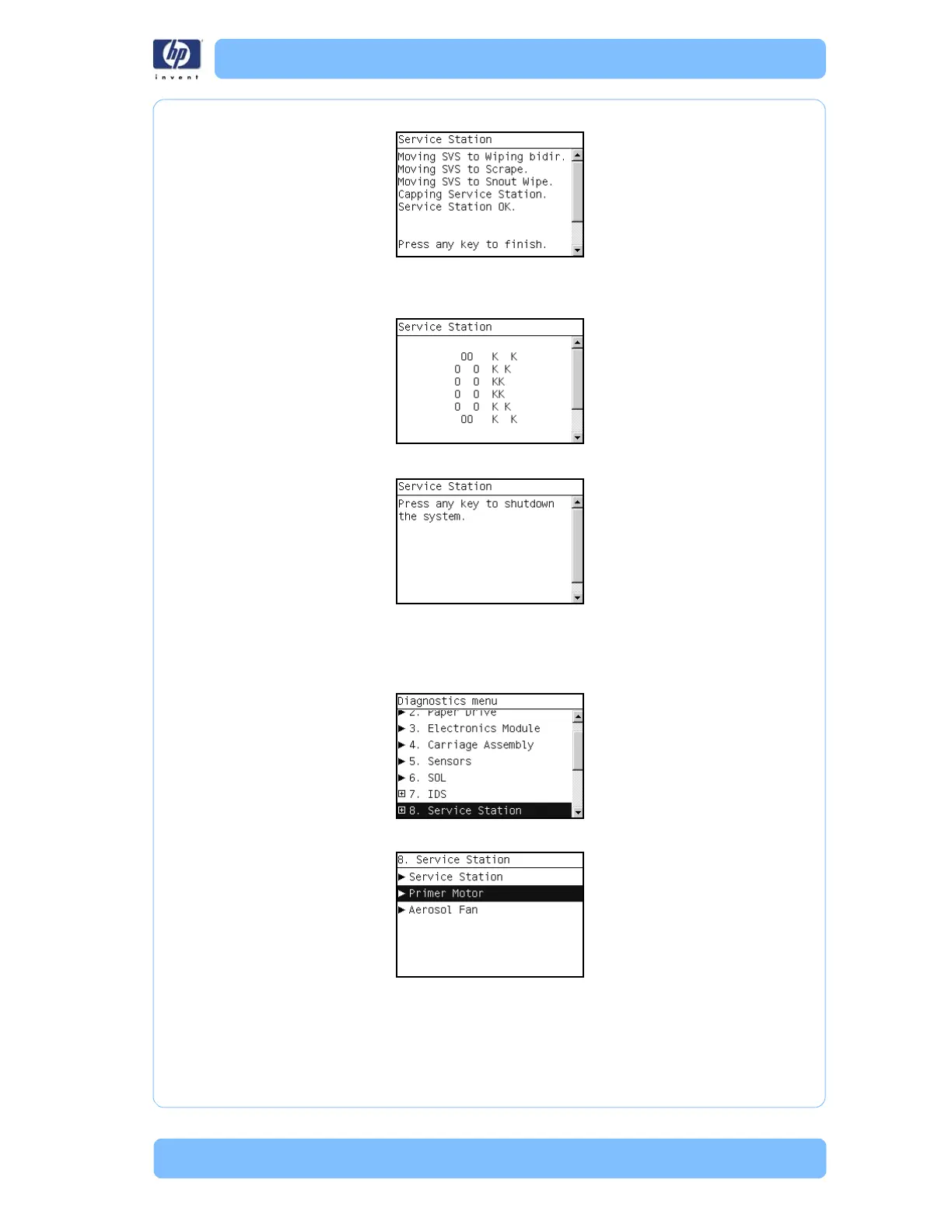

12 The Front Panel displays the Service Station test results.
13 Press any key to finish the test.
14 The Front Panel shows the test complete display for a few seconds.
15 The Front Panel prompts you to shutdown the printer to complete the test.
16 Press any key to shutdown the printer.
Primer Motor
1 In the Diagnostics menu, scroll to 8. Service Station and press OK.
2 The Front Panel will show the 8. Service Station submenu.
3 In the 8. Service Station submenu, scroll to Primer Motor and press
OK to start the test.
4 The Primer Motor test starts and the front Panel displays the following
messages:
To Next Page
