Designjet Z Series — Service Manual 6-151
Removal and Installation - Ink Supply Tubes
Ink Supply Tubes
Removal
1. Remove the Right Cover (refer to page 6-
27).
2. Remove the Left Cover (refer to page 6-30).
3. Remove the Front Panel (refer to page 6-
48).
4. Remove the Top Cover (refer to page 6-51).

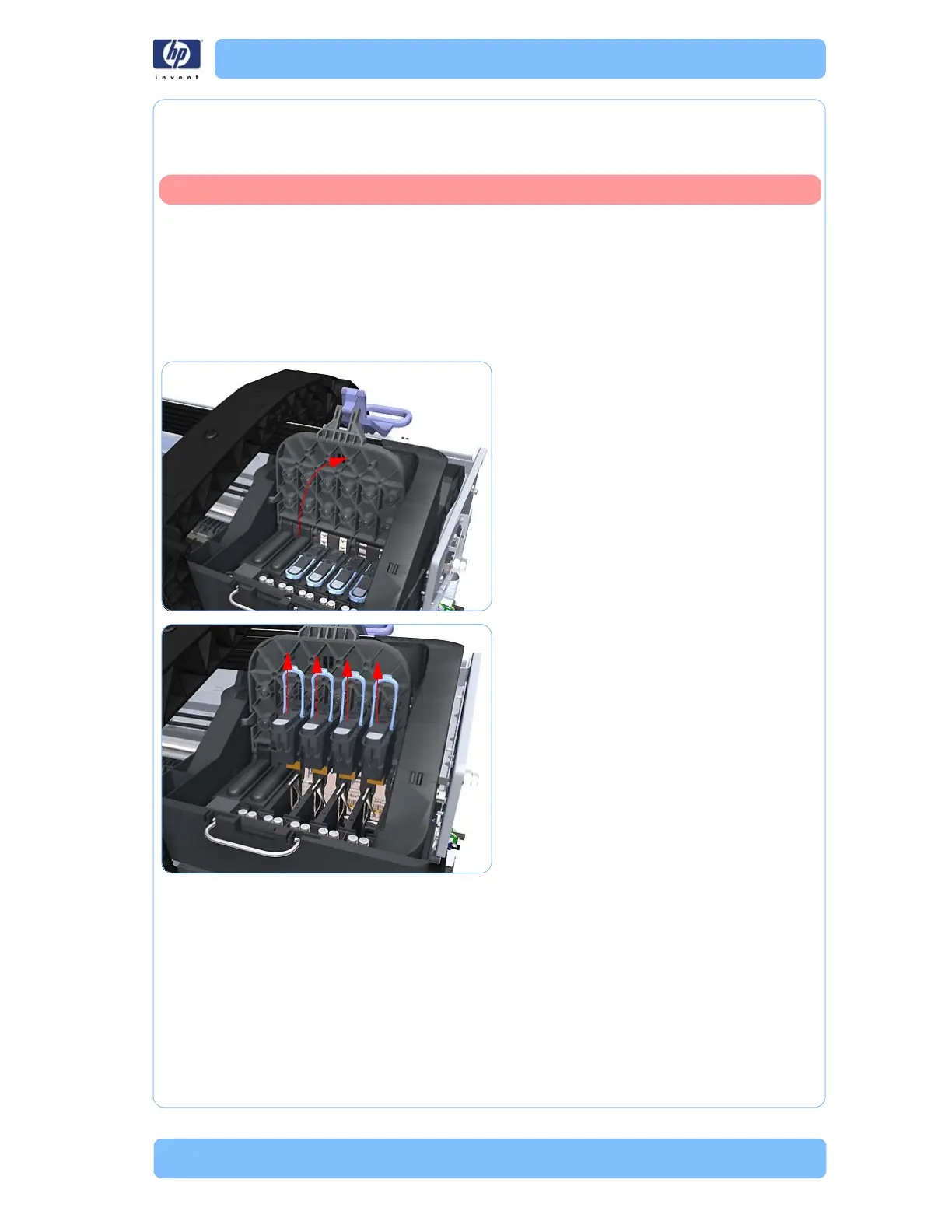

5. Open the Carriage Cover.
The illustration shows the Z2100 which only
has four Printheads, for the Z3100 there
are six Printheads.
6. Remove all the Printheads.
Switch off the printer and remove the power cable.
To Next Page
