6-152 Designjet Z Series — Service Manual
Removal and Installation

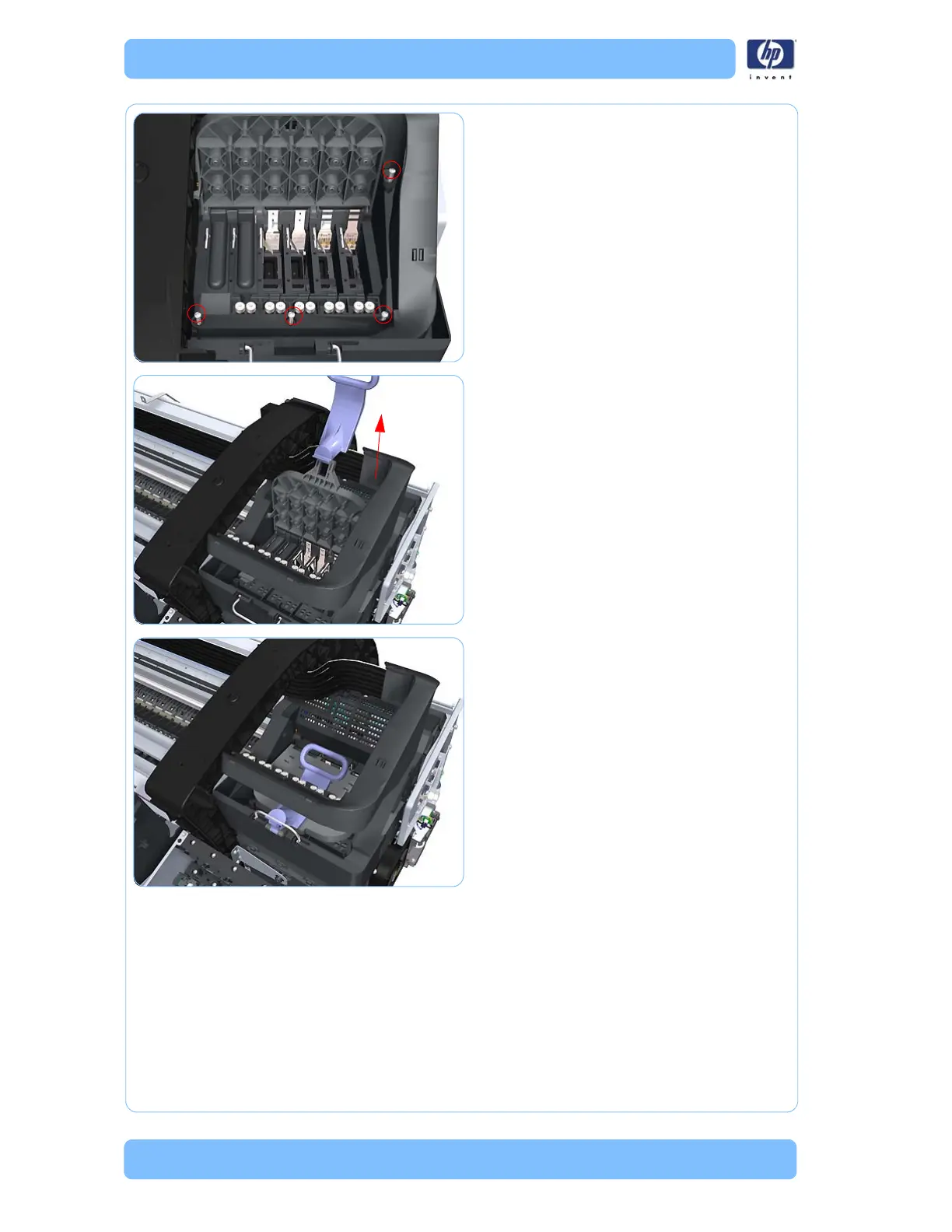

7. Remove the four T-15 screws that secure the
Ink Supply Tubes to the Carriage
Assembly.
8. Carefully lift out the Ink Supply Tubes and
close the carriage cover at the same time.
9. Close and lock the Carriage Assembly
cover.
