Designjet Z Series — Service Manual 1-26
Reading the Diagnostic Print Results

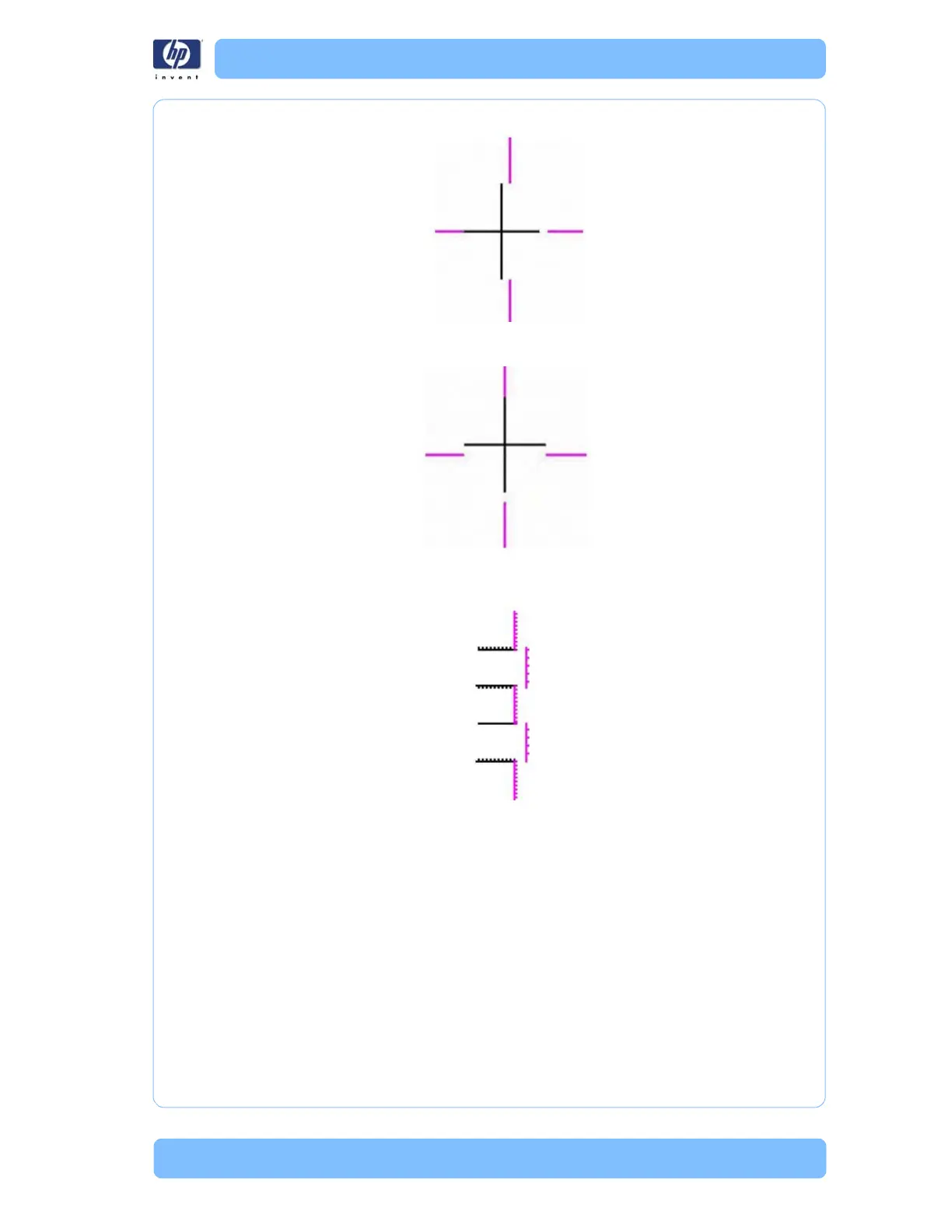

Alignment Test will show something like this:
2 If the Printer is experiencing vertical misalignment problems, the Alignment
Test will show something like this:
3 If the Printer is experiencing bi-directional misalignment problems, the
Alignment Test will show something like this:
Corrective Action
Perform the Printhead Alignment (Main Menu/Image Quality Maintenance/
Align Printheads), using the same paper type with which you were
experiencing unacceptable image quality, if feasible (some paper types are
not suitable for Printhead Alignment).
Diagnostic Part 3: Printheads & Paper Advance
This test is designed to check whether the Printheads and the Paper Advance
Mechanism are working correctly. This part of the Image Quality Test should
NOT be used to check for color consistency or accuracy.
