Designjet Z Series — Service Manual 4-7
Service Calibrations

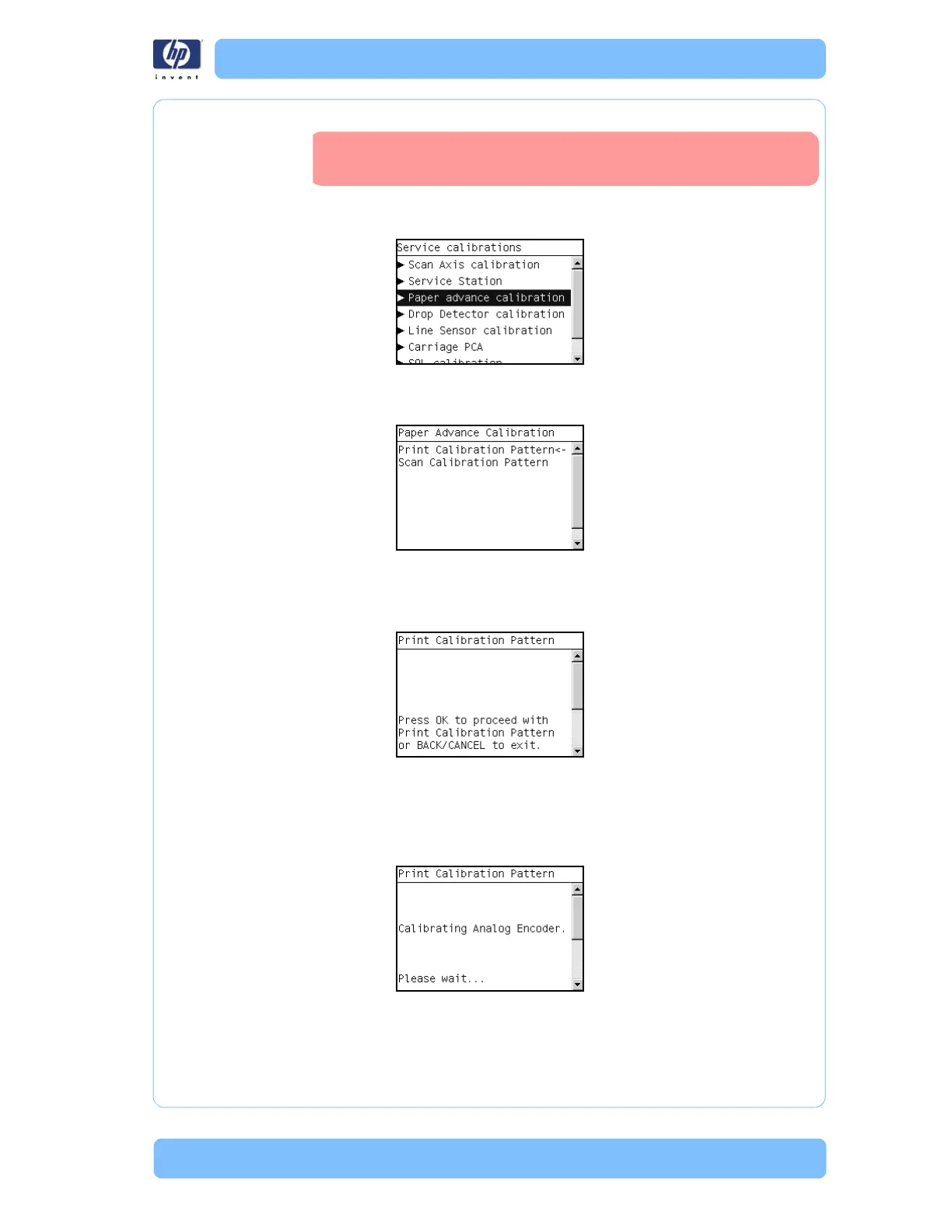

Perform the Paper Advance Calibration as follows:
1 In the Service Calibrations submenu, scroll to “Paper Advance Calibration”
and press OK.
2 In the Paper Advance Calibration submenu, scroll to Print Calibration
Pattern and press OK.
3 When the following message appears on the front panel, you must select
whether you would like to continue with the calibration by pressing the OK
key. Press Back or Cancel to exit the calibration.
4 If paper is detected, the printer will prompt you to remove the media. If
paper is NOT detected, the calibration will continue.
5 The Printer will start to calibrate the Analog Encoder and the following
message will be displayed on the Front Panel.
If the Calibration is not done or if the values are out of the limits, a warning
message will appear on the Front Panel. In this case, try the following:
Check that the Printer has the latest Firmware version. If not, update the
Firmware to the latest version.
Make sure that you unload media from the Printer before
performing the Paper Advance Calibration.
