Designjet Z Series — Service Manual 6-29
Removal and Installation - Right Cover

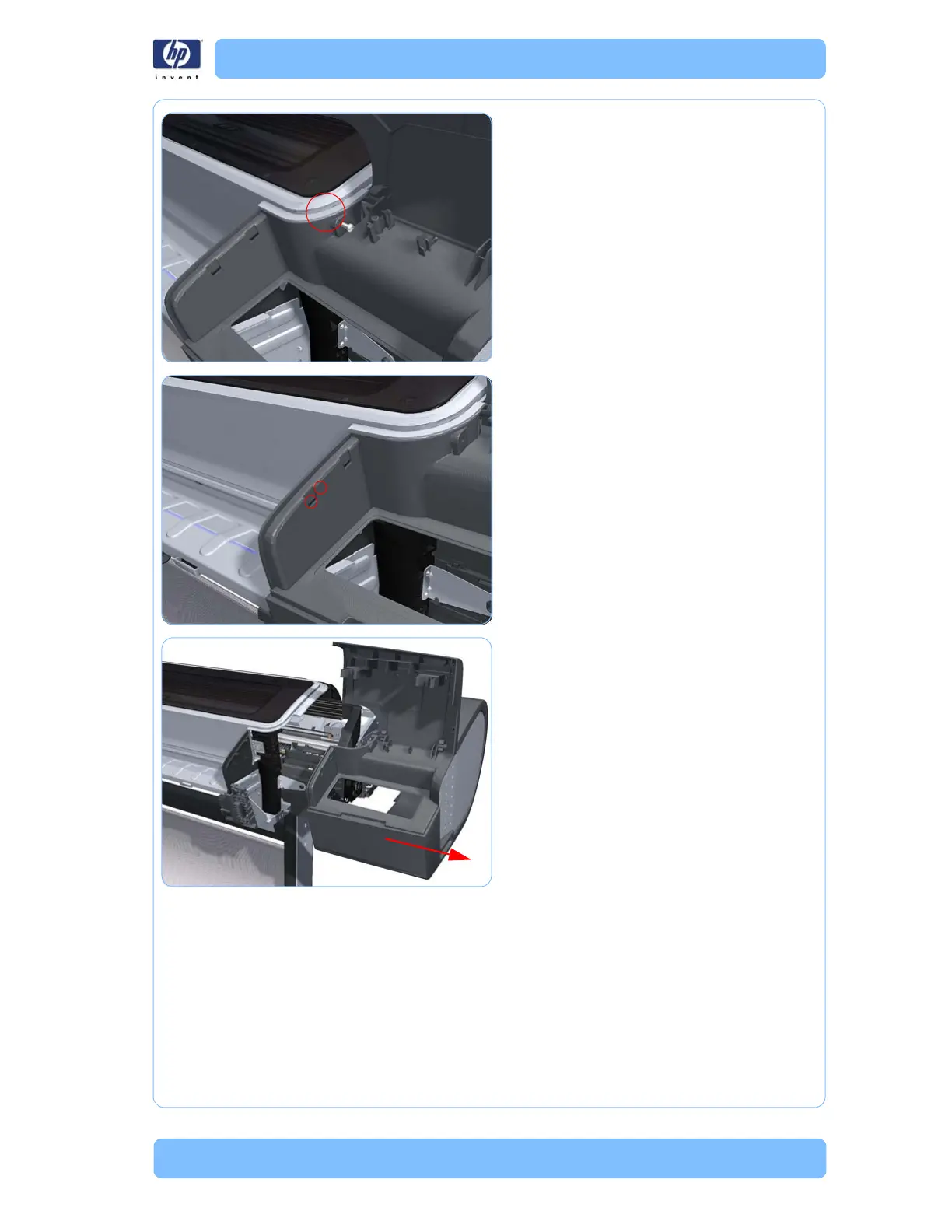

8. Remove one T-15 screw that secures the
Right Cover to the printer (accessible from
within the cartridge bay).
9. Unclip the Right Trim.
10. Remove the Right Cover from the printer.
To Next Page
