6-34 Designjet Z Series — Service Manual
Removal and Installation

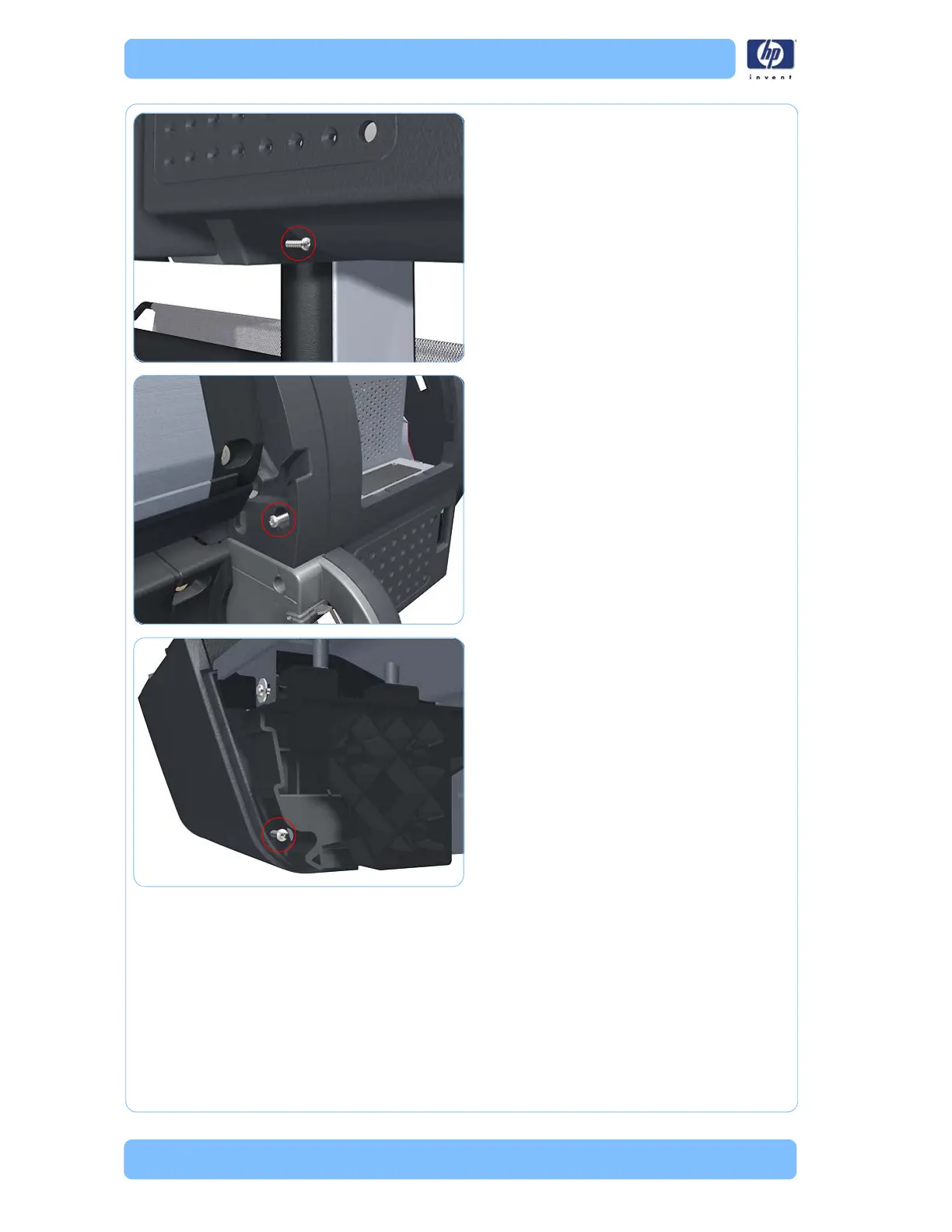

14. Remove one T-15 screw that secures the Left
Cover (bottom rear).
15. Remove one T-15 screw that secures the Left
Cover (bottom rear).
16. Remove one T-15 screw that secures the Left
Cover (bottom front, accessible under Front
Cover).
