Removal and Installation - Trailing Cable (with Carriage PCA Cover)

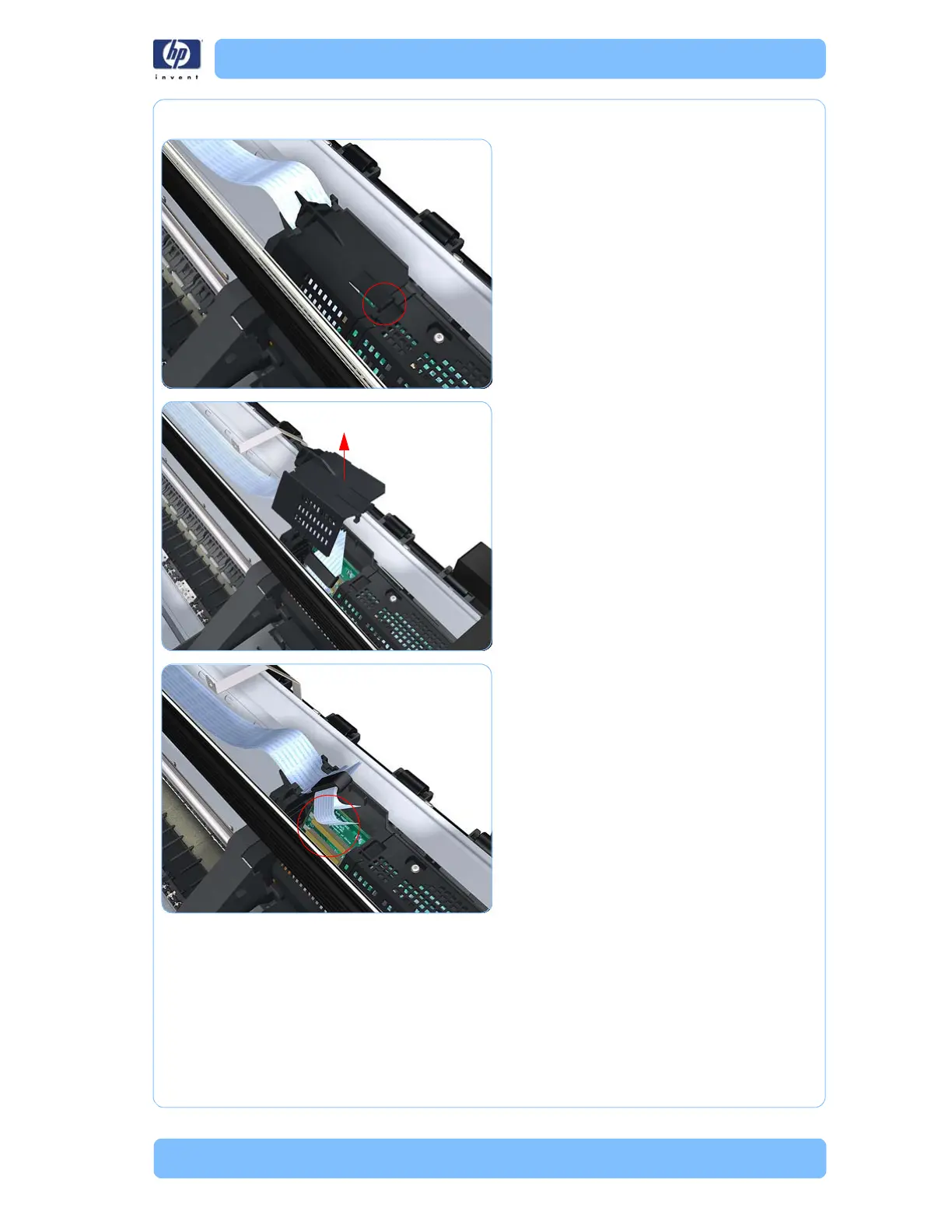

9. Unclip the small cover of the Carriage
PCA.
10. Remove the small cover of the Carriage
PCA.
11 . Disconnect the two ribbon cables of the
Trailing Cables from the Carriage PCA.
