Designjet Z Series — Service Manual 6-103
Removal and Installation - Carriage Assembly and Trailing Cable
19. Unroute the Trailing Cables.

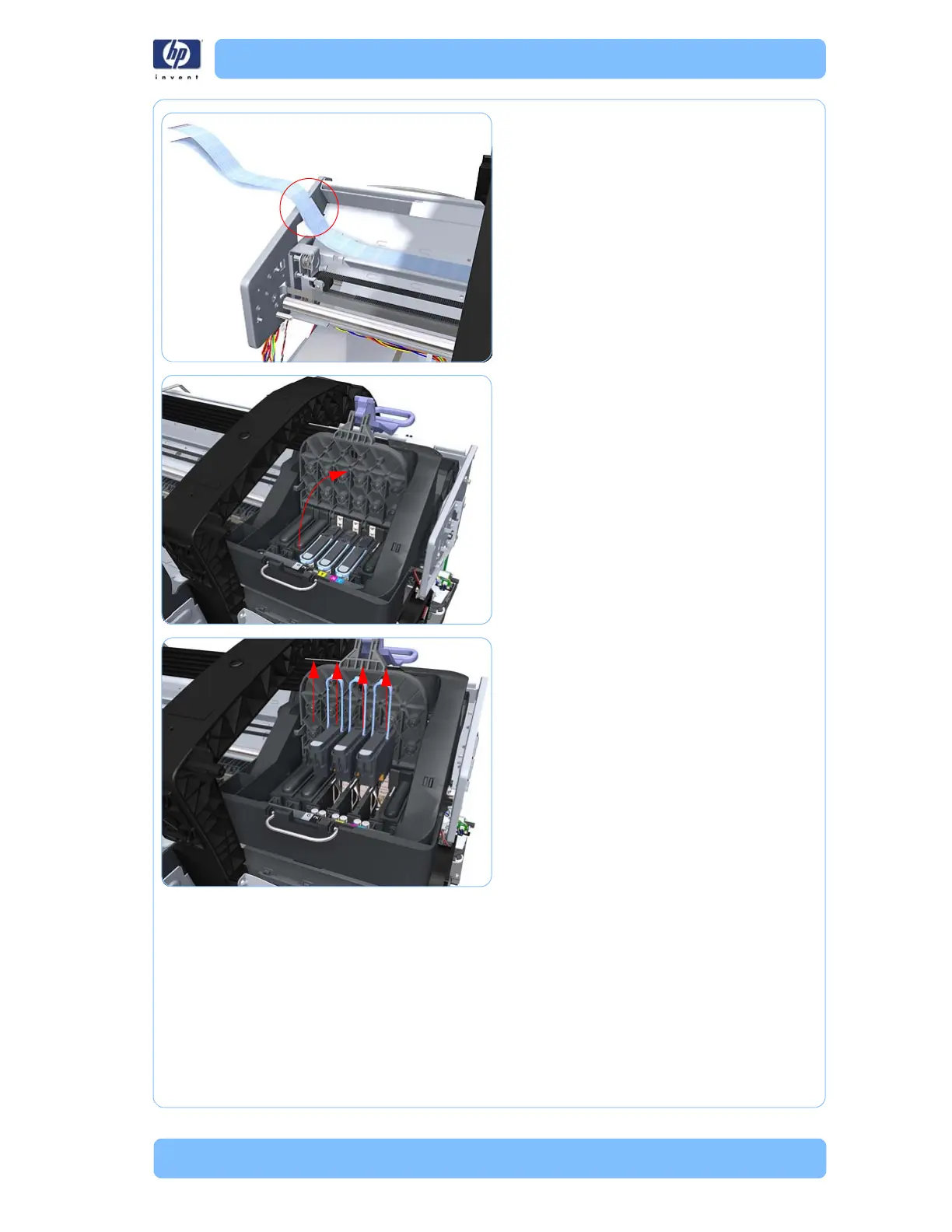

20.Open the Carriage Cover. The illustration
shows the Z2100 which has four
Printheads. For the Z3100, there are six
Printheads.
21. Remove all the Printheads.
To Next Page
