Designjet Z Series — Service Manual 6-127
Removal and Installation - Color Sensor ESP (spectrophotometer)

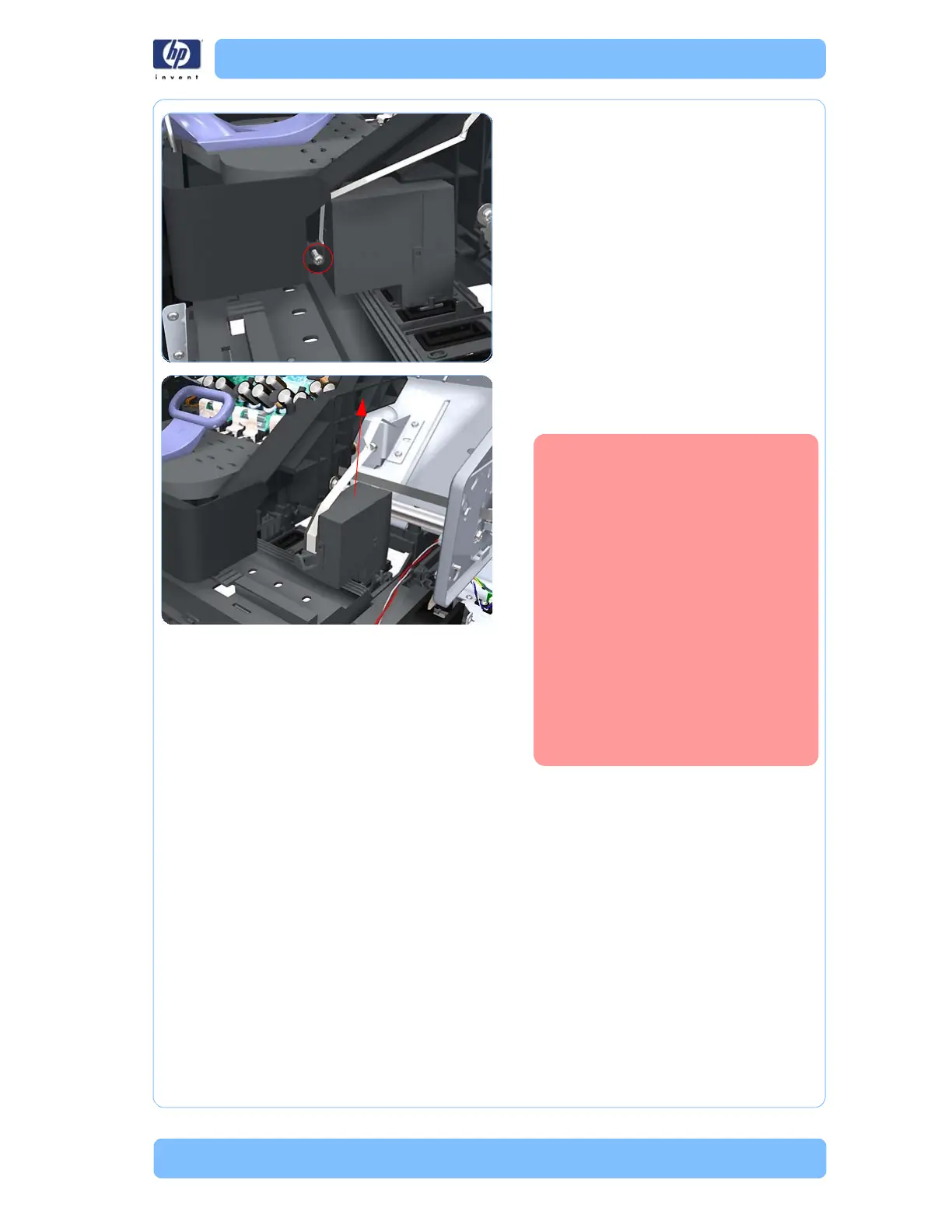

21. Remove one T-10 screw that secures the
Color Sensor ESP (spectrophotometer) to
the Carriage Assembly.
22. Remove the Color Sensor ESP
(spectrophotometer) from Carriage
Assembly.
When you reinstall the Color
Sensor ESP
(spectrophotometer), be very
careful not to overtighten the
attachment screw because this
can cause irreparable damage
to it.
Take care when you route the
Color Sensor ESP
(spectrophotometer) cable so it
lays flat and is not twisted.
This ensures that when you
reconnect it to the connector in
the Carriage Assembly it is
connected correctly. If the
cable has been twisted during
