Removal and Installation

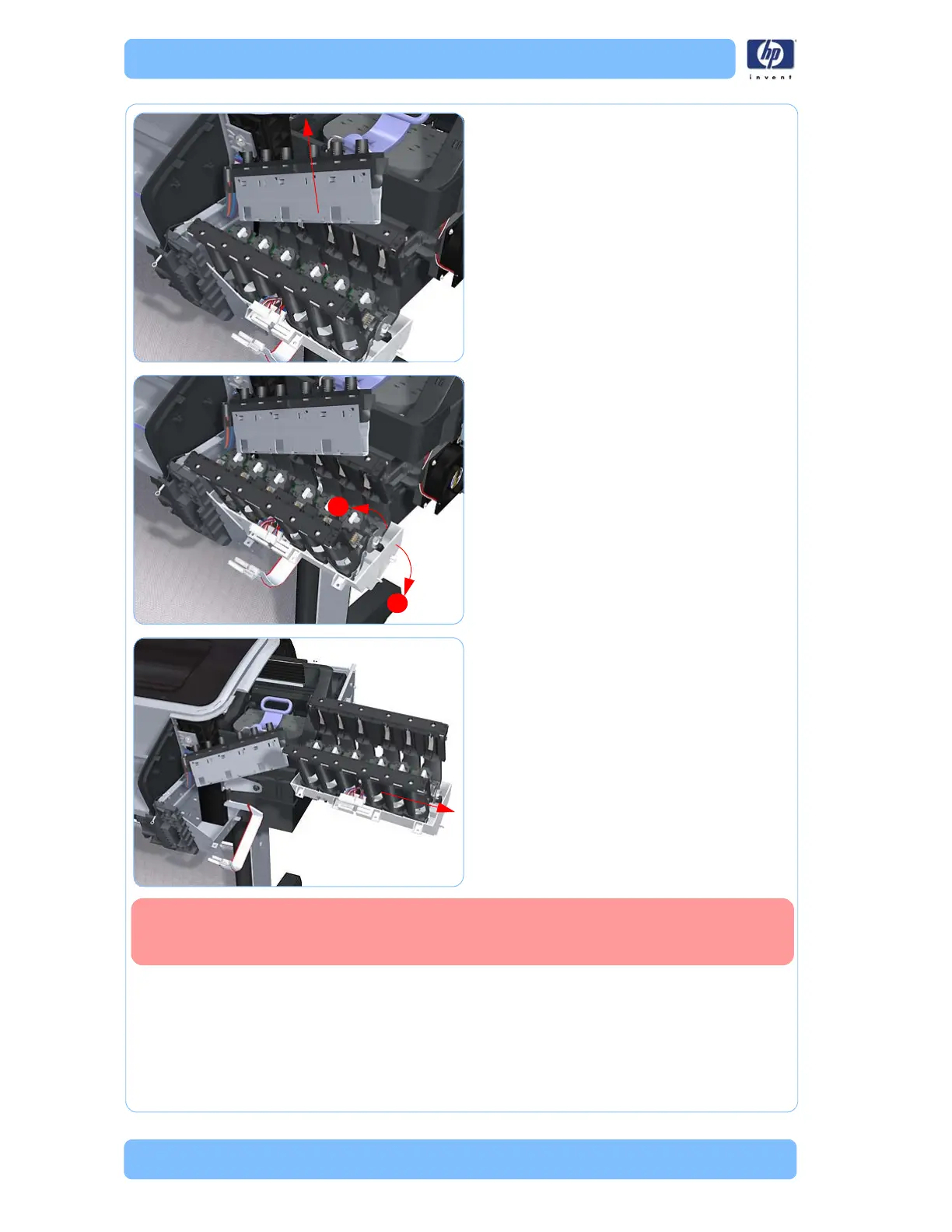

11 . Carefully lift the Cartridge Tubes Connector
out of the Right Ink Supply Station.
12. Carefully lift the Right Ink Supply Station
enough so that you can rotate it clockwise
to release the front attachment from the
printer.
13. Carefully lift the Right Ink Supply Station
completely out of the printer.
When you finish installing or replacing this component, you must perform the
necessary Service Calibrations. To find which calibrations you must perform,
Refer to page 6-8,
Service Calibration Guide to Removal and Installation
.
