Designjet Z Series — Service Manual 6-173
Removal and Installation - Print Zone Overdrive

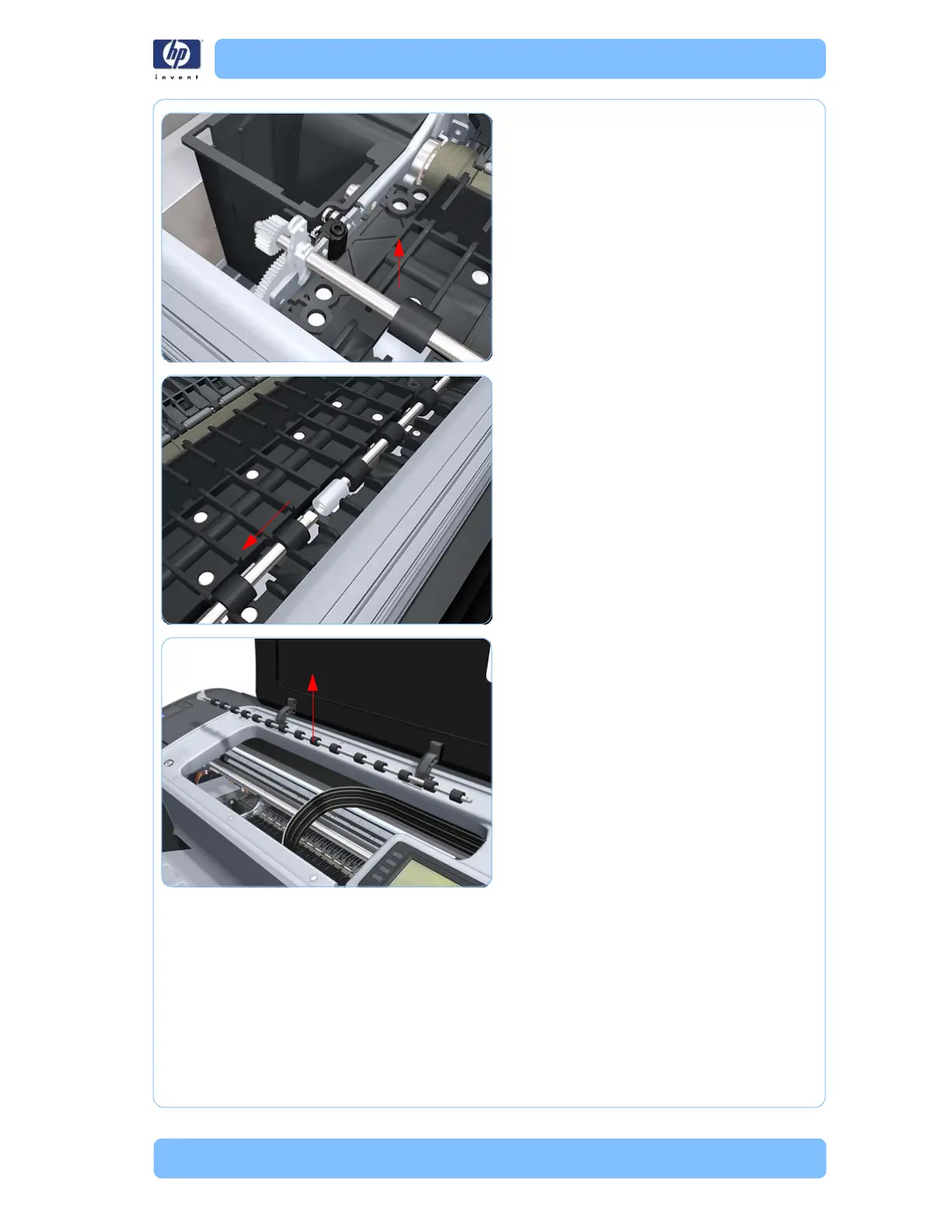

7. Carefully lift the left Print Zone Overdrive
enough 10
mm) so you can slide it to the
left.
8. Slide the left Print Zone Overdrive to the left
disengage the center coupling.
9. Carefully left Print Zone Overdrive out of
the printer.
