6-184 Designjet Z Series — Service Manual
Removal and Installation

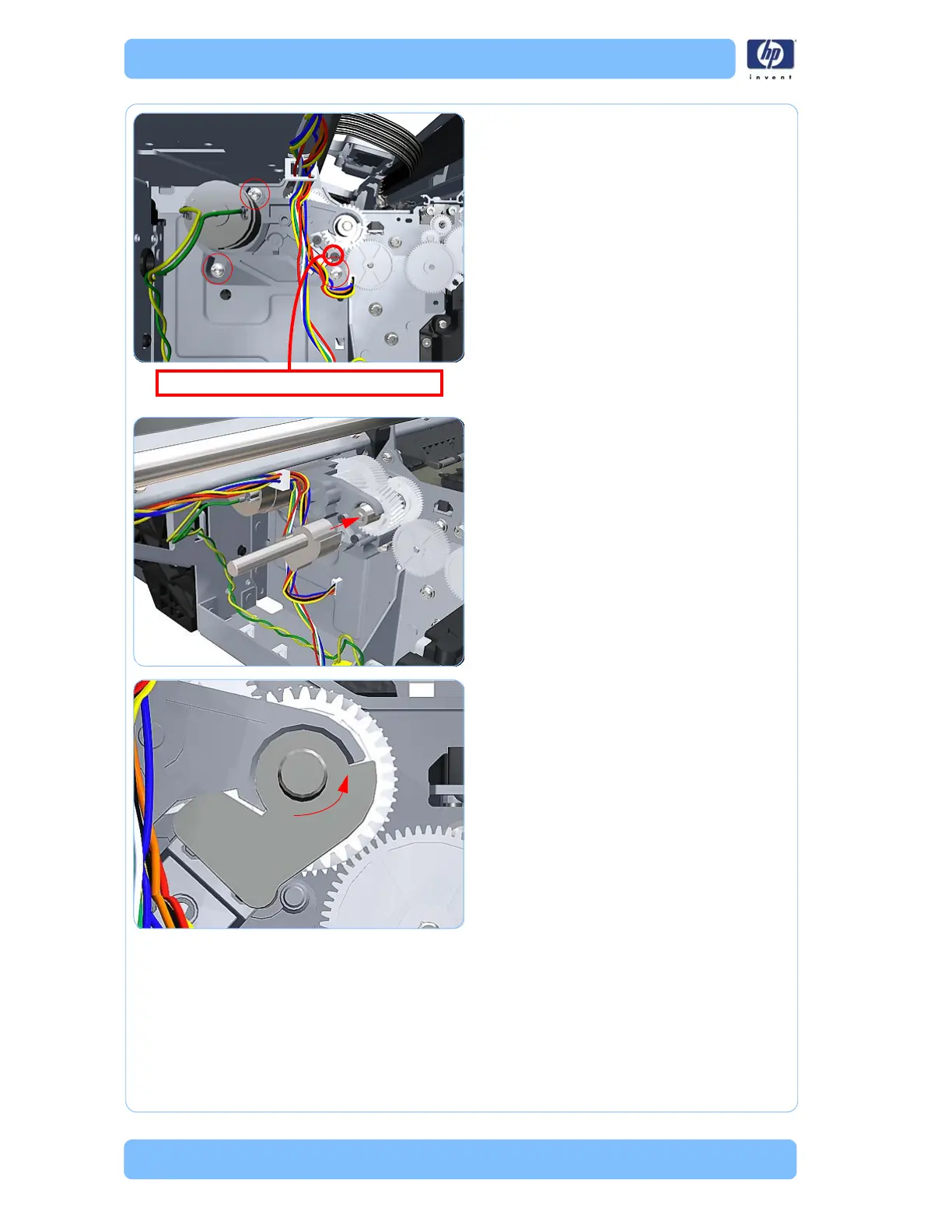

3. Insert the three T-15 attachment screws and
the encoder sensor position adjustment
screw, but do NOT fully tighten them.
4. Position the Media Advance Drive
Adjustment Tool on the end Media
Advance Roller shaft, push it firmly onto the
shaft and maintain a constant pressure to
ensure it is flush to the Media Advance
Drive.
5. Rotate the Media Advance Drive
Adjustment Tool fully counter-clockwise to
ensure its flat surface of the tool is firmly
against the flat surface of the Media
Advance Drive mounting.
Encoder sensor position adjustment screw
