6-194 Designjet Z Series — Service Manual
Removal and Installation

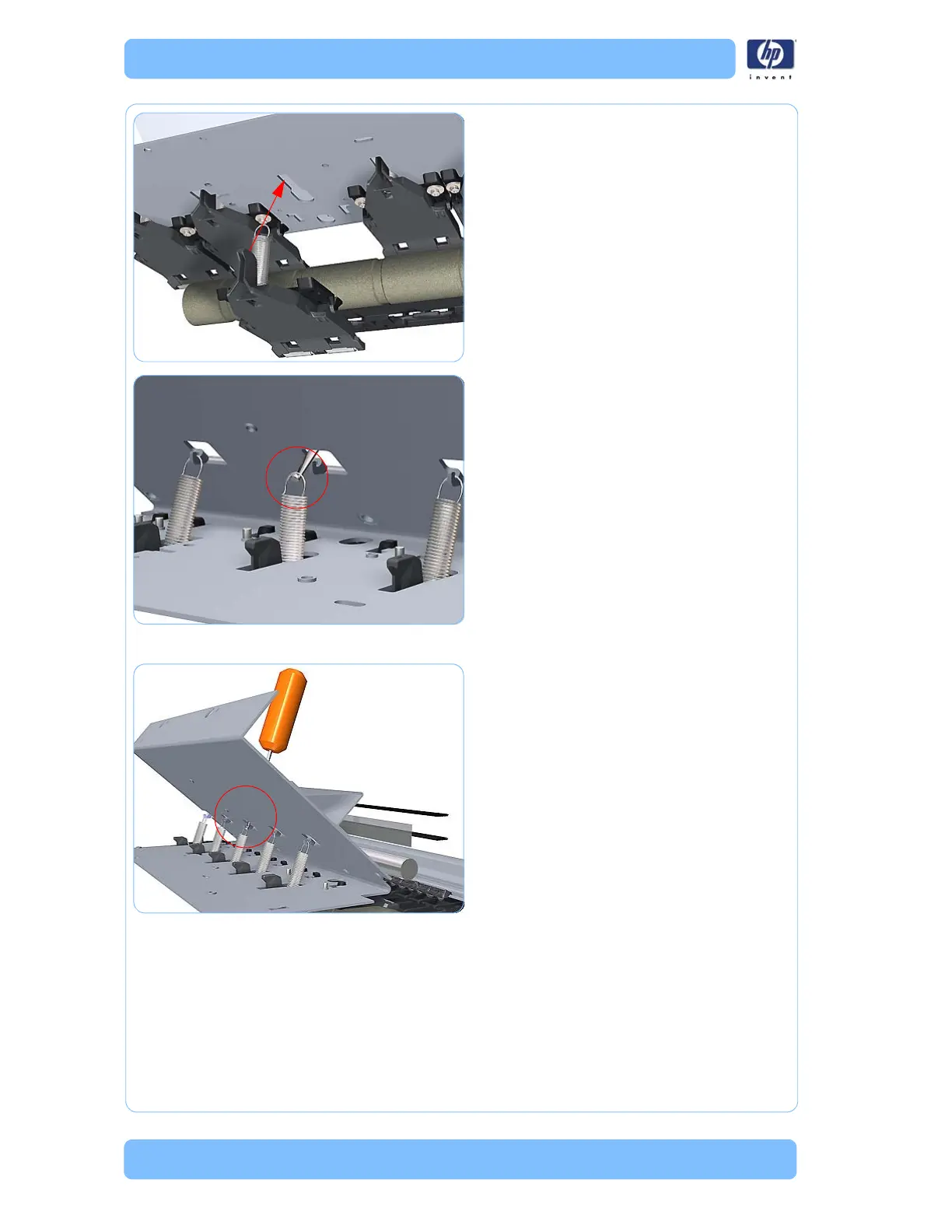

2. Position the new Pinchwheel Assembly
correctly on its hanger.
3. Hook the spring of the Pinchwheel
Assembly you are installing with the
Pinchwheel Insertion Tool.
4. Attach the spring to its attachment point on
the hanger and remove the Pinchwheel
Insertion Tool.
