Designjet Z Series — Service Manual 6-213
Removal and Installation - Starwheel Motor

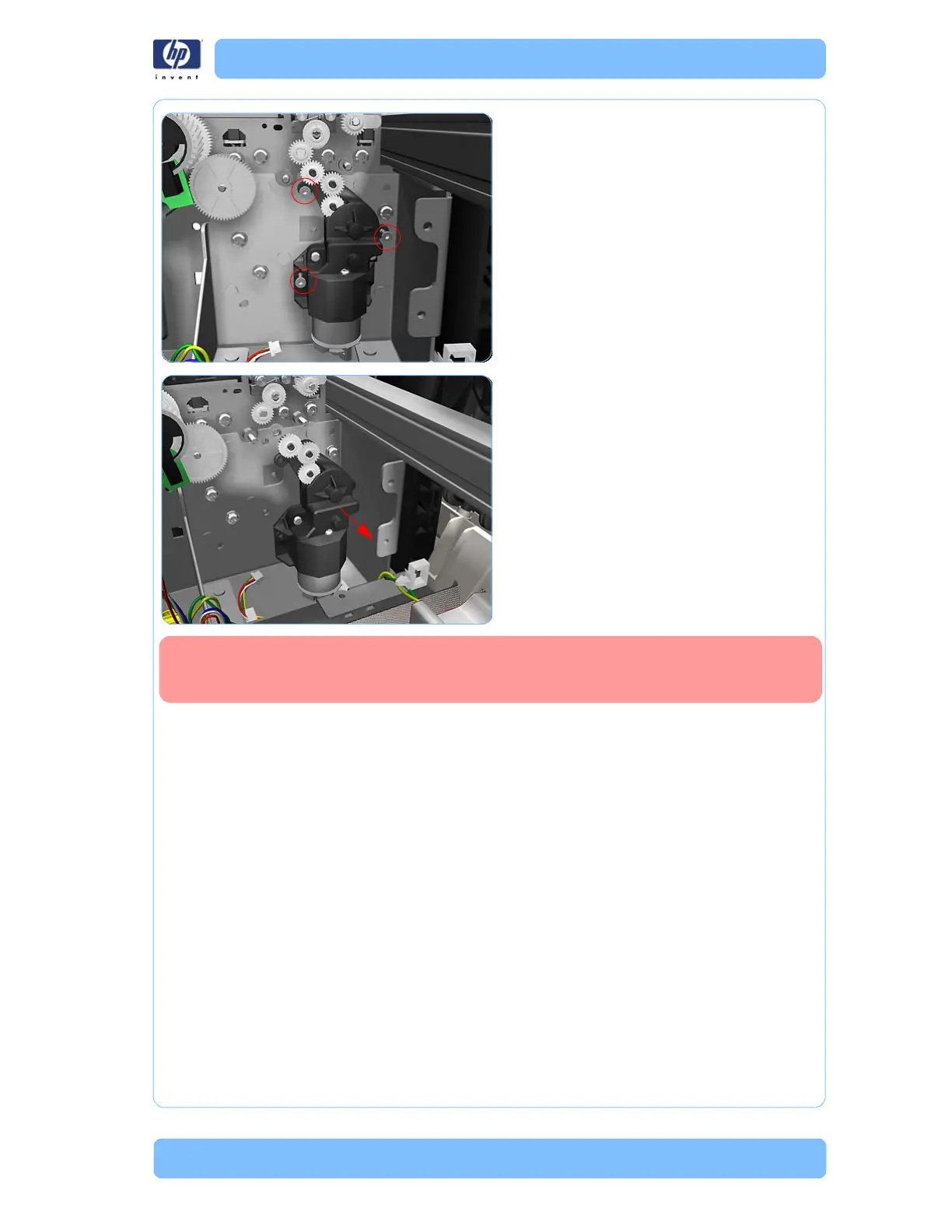

7. Remove three T-15 screws that secure the
Starwheel Motor to the printer.
8. Lift the Starwheel Motor out of the printer.
When you finish installing or replacing this component, you must perform the
necessary Service Calibrations. To find which calibrations you must perform,
Refer to page 6-8,
Service Calibration Guide to Removal and Installation
.
