4. Using both hands, slide the power supply into the chassis until you feel resistance.
5. Twist the ejector handles at the upper corners of the power supply faceplate clockwise
until they stop.
6. Tighten the captive screws at the lower corners of the power supply faceplate to
secure the power supply in the chassis.
7. Repeat the procedure for the upper power supply.

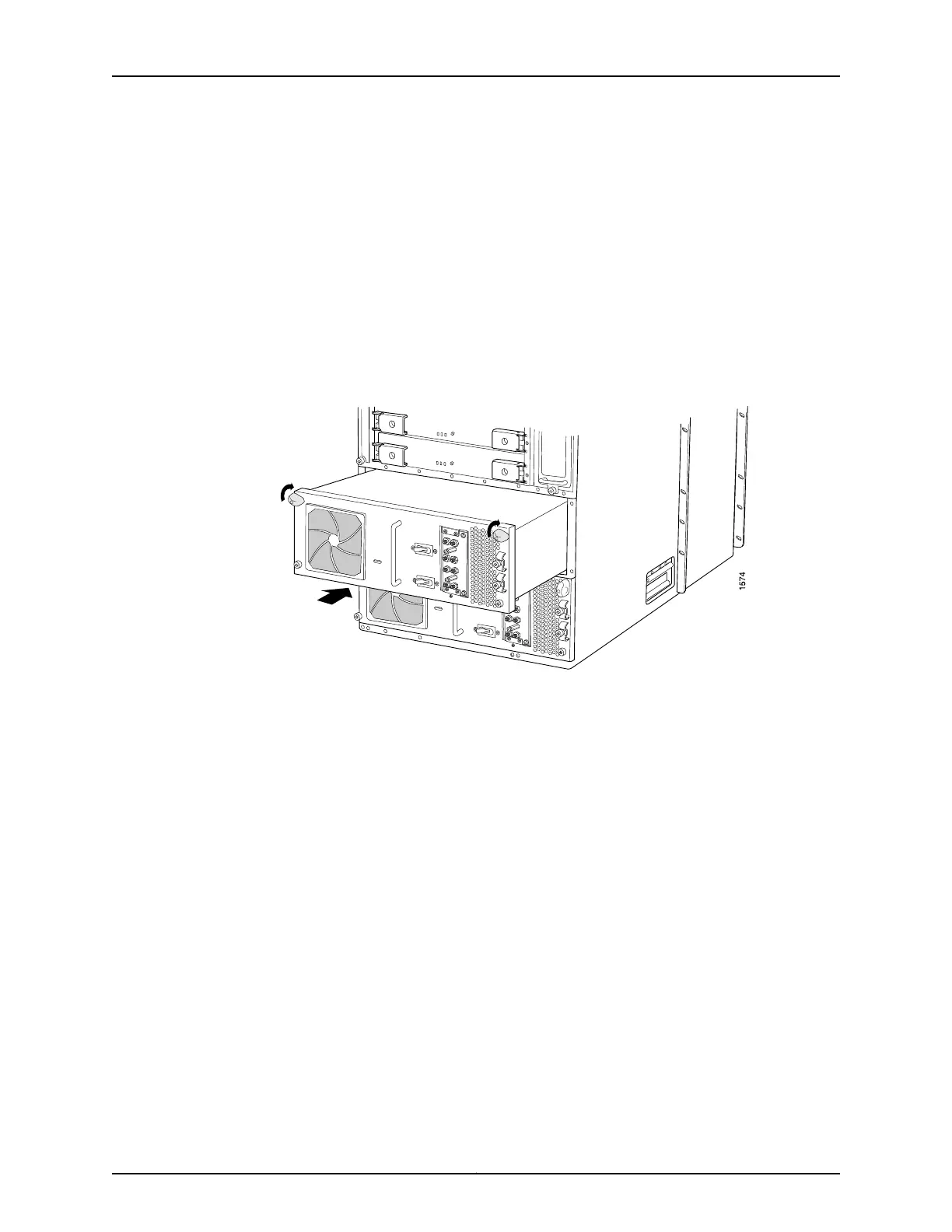

Figure 68: Reinstalling a Power Supply
Related
Documentation
• T640 Preventing Electrostatic Discharge Damage on page 506
• T640 Router Installation Summary on page 151
• T640 Installation Safety Guidelines on page 511
177Copyright © 2017, Juniper Networks, Inc.
Chapter 18: Installing the T640 Router With a Mechanical Lift
