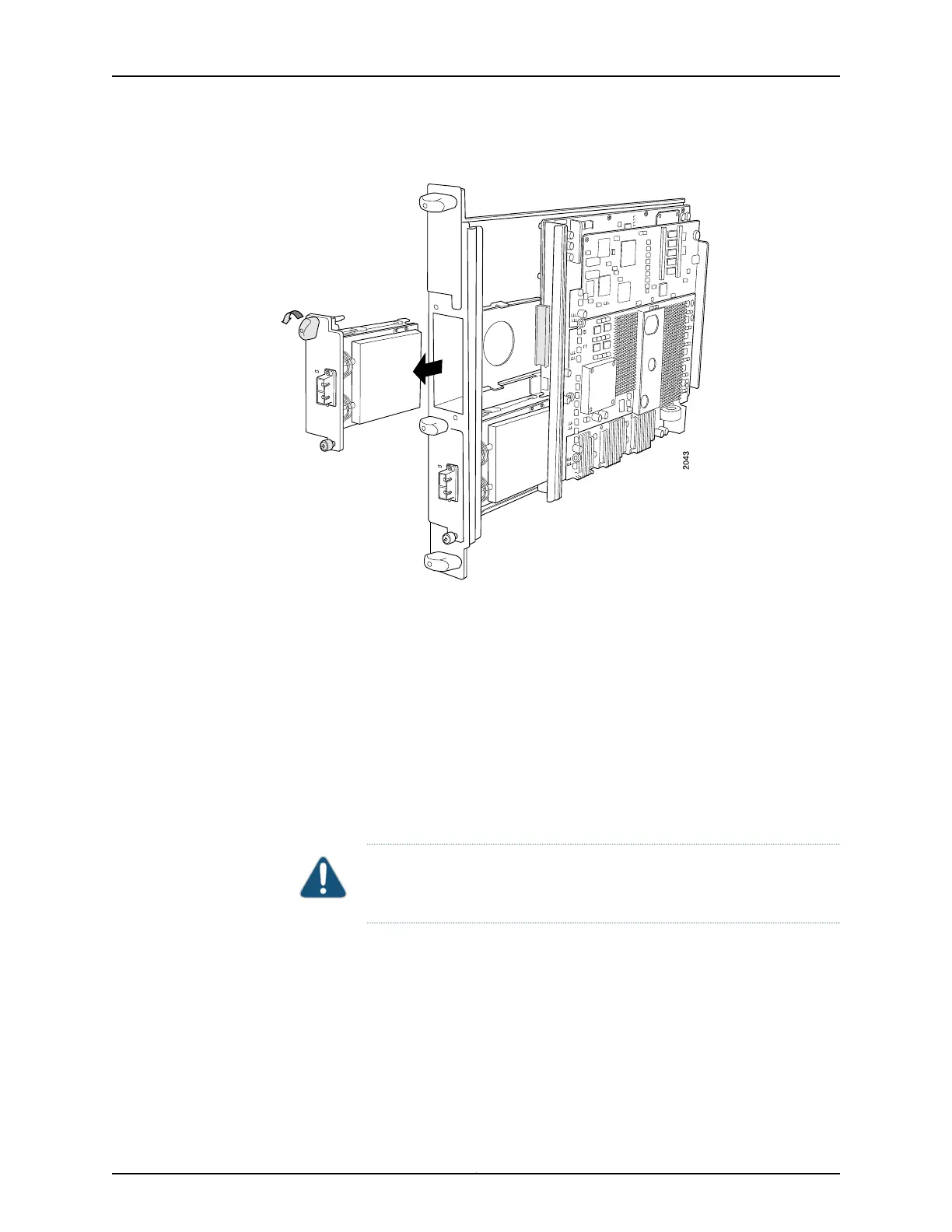

Figure 167: Removing a PIC
Installing a T640 PIC
To install a PIC (see Figure 168 on page 345):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
the strap to one of the ESD points on the chassis.
2. If the PIC uses fiber-optic cable, verify that there is a rubber safety cap over each
transceiver on the faceplate. Install a cap if necessary.
3. Align the notches in the connector at the rear of the PIC with the notches in the PIC
slot in the FPC and then slide the PIC in until it lodges firmly in the FPC.
CAUTION: Slide the PIC straight into the slot to avoid damaging the
components on the bottom of the PIC.
343Copyright © 2017, Juniper Networks, Inc.
Chapter 28: Replacing Line Card Components
