• T640 DB-9 Connector Pinouts for the Routing Engine AUXILIARY and CONSOLE Ports
on page 146
• T640 Routing Engine Interface Cable and Wire Specifications on page 145
Connecting the T640 Router to a Network for Out-of-Band Management
To connect the Routing Engine to a network for out-of-band management, connect an
Ethernet with RJ-45 connectors to the ETHERNET port on the CIP. One cable is provided
with the router.
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
the strap to one of the ESD points on the chassis.
2. Turn off the power to the management device.
3. Plug one end of the Ethernet cable (Figure 95 on page 212 shows the connector) in to
the appropriate ETHERNET port on the CIP (see Figure 96 on page 213). The ports
labeled HOST 0 connect to the Routing Engine in the upper Routing Engine slot (RE0),
and the ports labeled HOST 1 connect to the Routing Engine in the lower Routing
Engine slot (RE1).
4. Plug the other end of the cable into the network device.

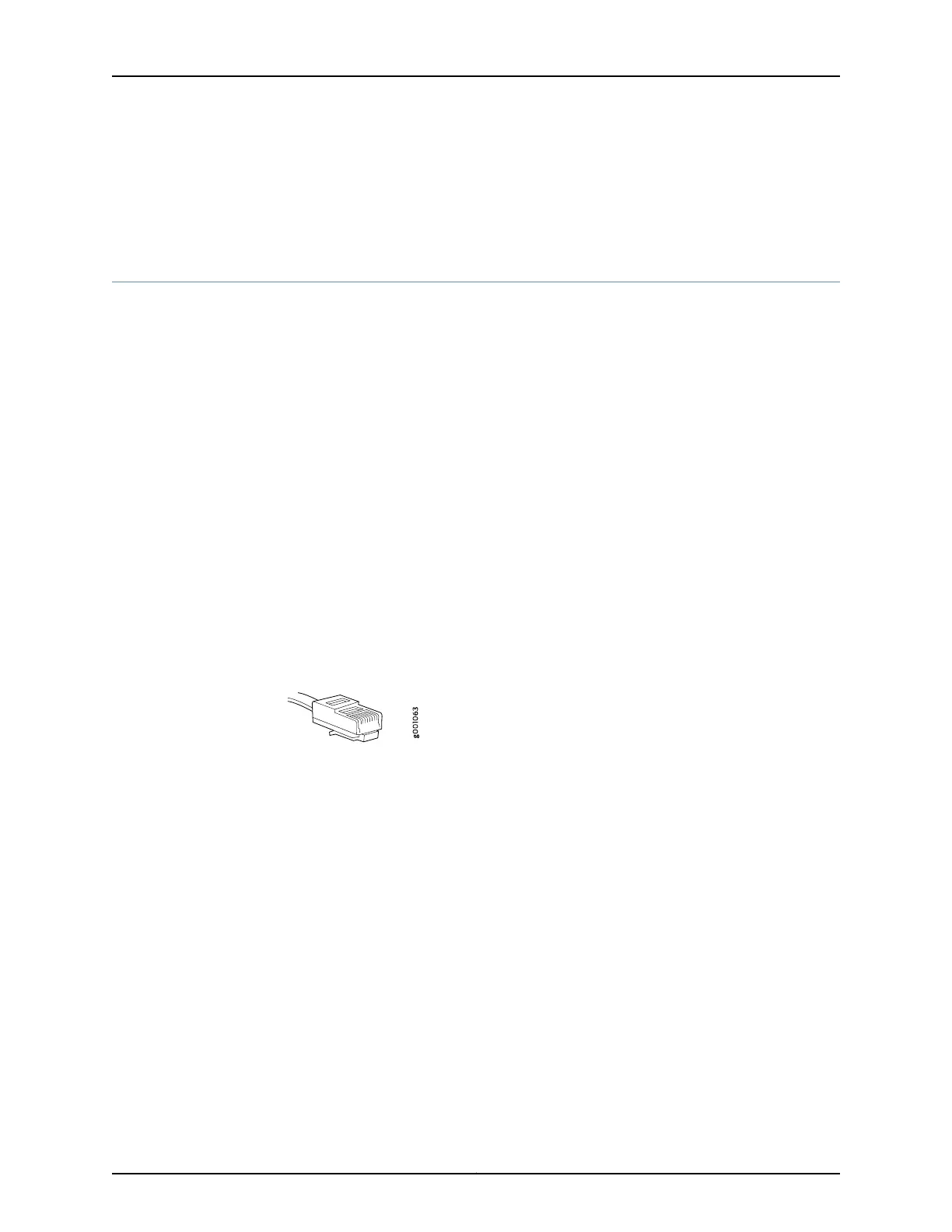

Figure 95: Routing Engine Ethernet Cable Connector
Copyright © 2017, Juniper Networks, Inc.212
T640 Core Router Hardware Guide
