Juniper T640 - Installing the T640 Mounting Hardware for an Open-Frame Rack; Figure 61: Installing the Mounting Hardware for a Four-Post Rack or Cabinet

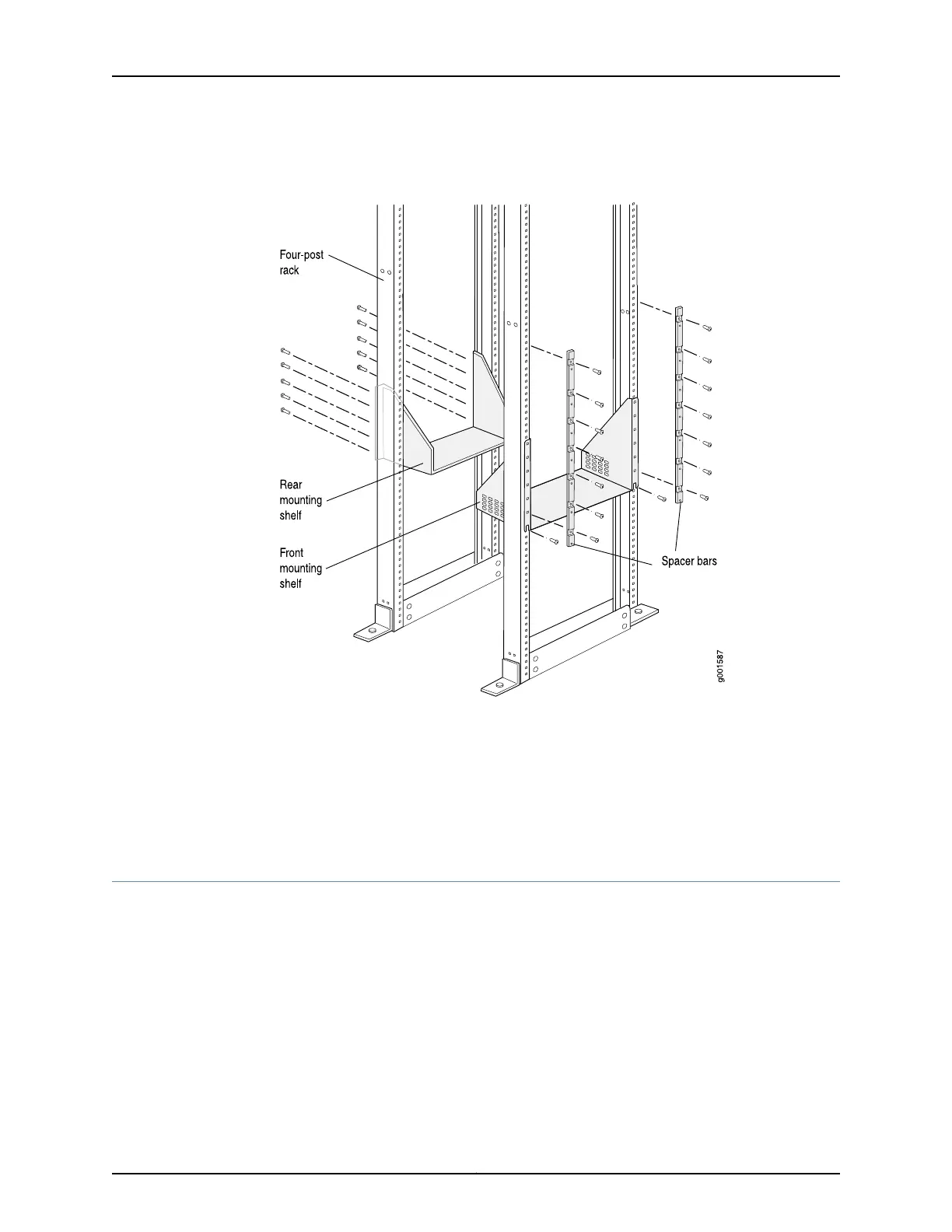

Figure 61: Installing the Mounting Hardware for a Four-Post Rack or
Cabinet
Related
Documentation
T640 Chassis Description on page 15•
• Verifying the T640 Router Parts Received on page 155
• Installing the T640 Mounting Hardware for an Open-Frame Rack on page 162
• T640 Site Preparation Checklist on page 117
Installing the T640 Mounting Hardware for an Open-Frame Rack
Before installing the T640 router into an open-frame rack, you must first install the large
mounting shelf on the rack. If you are front-mounting the router, you must remove the
center-mounting brackets from the chassis. In an open-frame rack, center-mounting is
generally preferable to front-mounting because the more even distribution of weight
provides greater stability. The small mounting shelf and the spacer bars are not needed.
