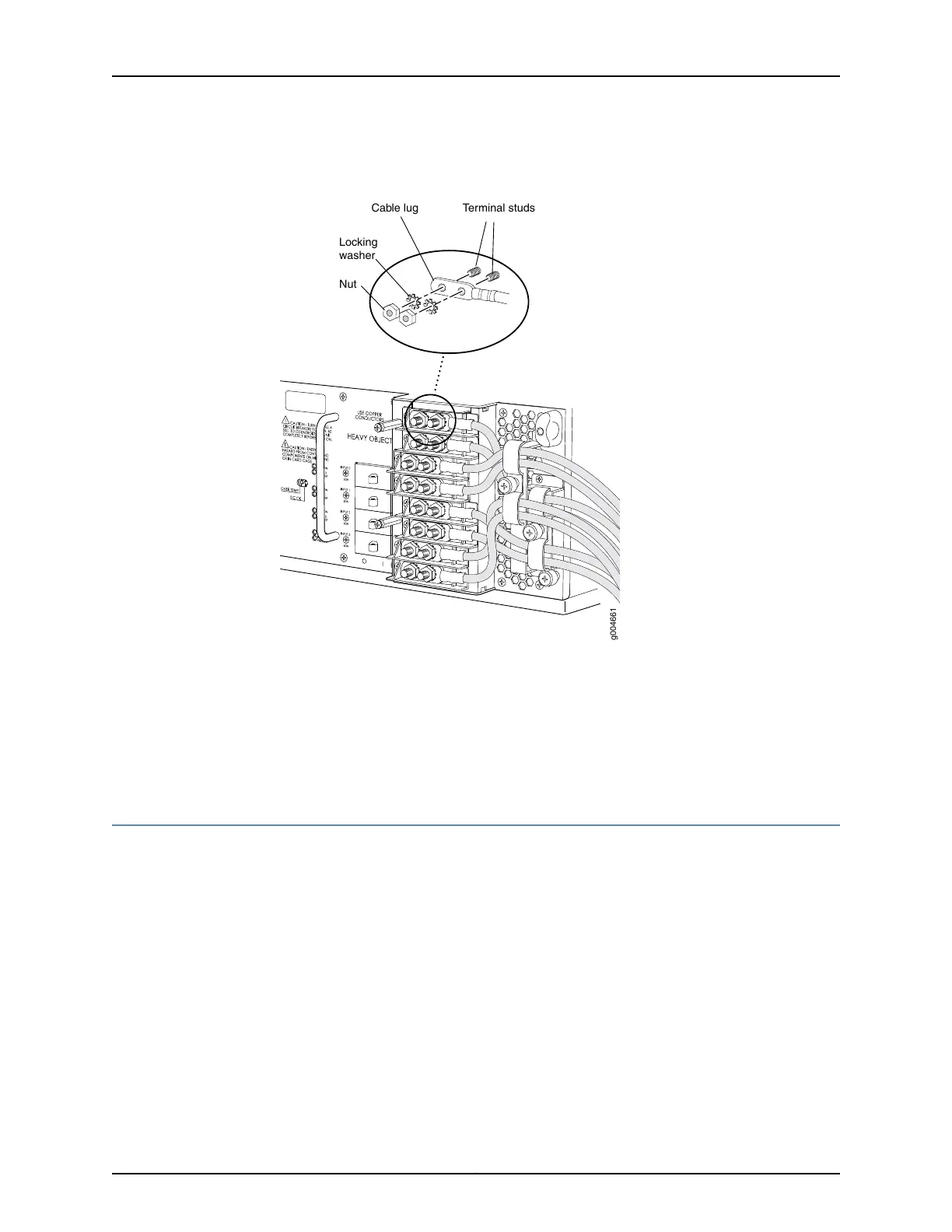

Figure194: Connecting a DC Power Cable to a Four-Input 240-A DC Power
Supply
g004661
Terminal studsCable lug
Locking
washer
Nut
Related
Documentation
T640 Power System Description on page 95•
• Maintaining the T640 Power Supplies on page 456
• T640 DC Power Supply Electrical Specifications on page 126
• Site Electrical Wiring Guidelines for Juniper Networks Devices on page 538
Replacing a T640 Six-Input DC Power Supply
1.
Removing a T640 Six-Input DC Power Supply on page 381
2.
Installing a T640 Six-Input DC Power Supply on page 383
Copyright © 2017, Juniper Networks, Inc.380
T640 Core Router Hardware Guide
