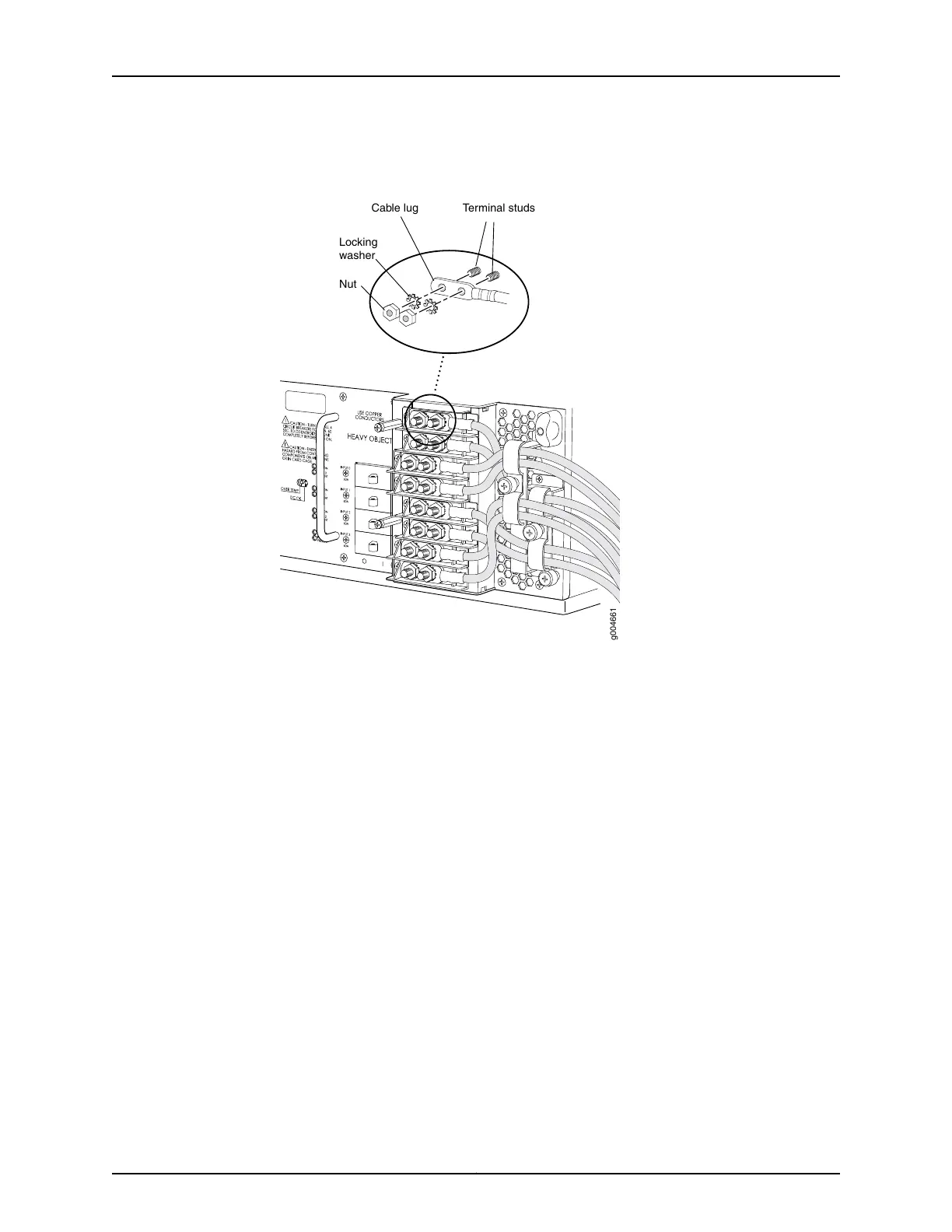

Figure 184: Disconnecting Power Cables from the Four-Input 240-A DC
Power Supply
g004661
Terminal studsCable lug
Locking
washer
Nut
6. Remove the cable lugs from the terminal studs.
7. Loosen the captive screw or screws on the cable restraint on the right edge of the
power supply faceplate.
8. Carefully move the power cables out of the way.
9. Loosen the captive screws on the lower corners of the power supply faceplate
completely.
10. Twist the ejector handles on the upper corners of the faceplate counterclockwise to
unseat the power supply.
11. Grasp the handle on the power supply faceplate and pull firmly. Slide it halfway out
of the chassis (see Figure 185 on page 369).
Copyright © 2017, Juniper Networks, Inc.368
T640 Core Router Hardware Guide
