located on the right side of the PIC (see Figure 243 on page 489), when the PIC is vertically
oriented (as it would be installed in the router).

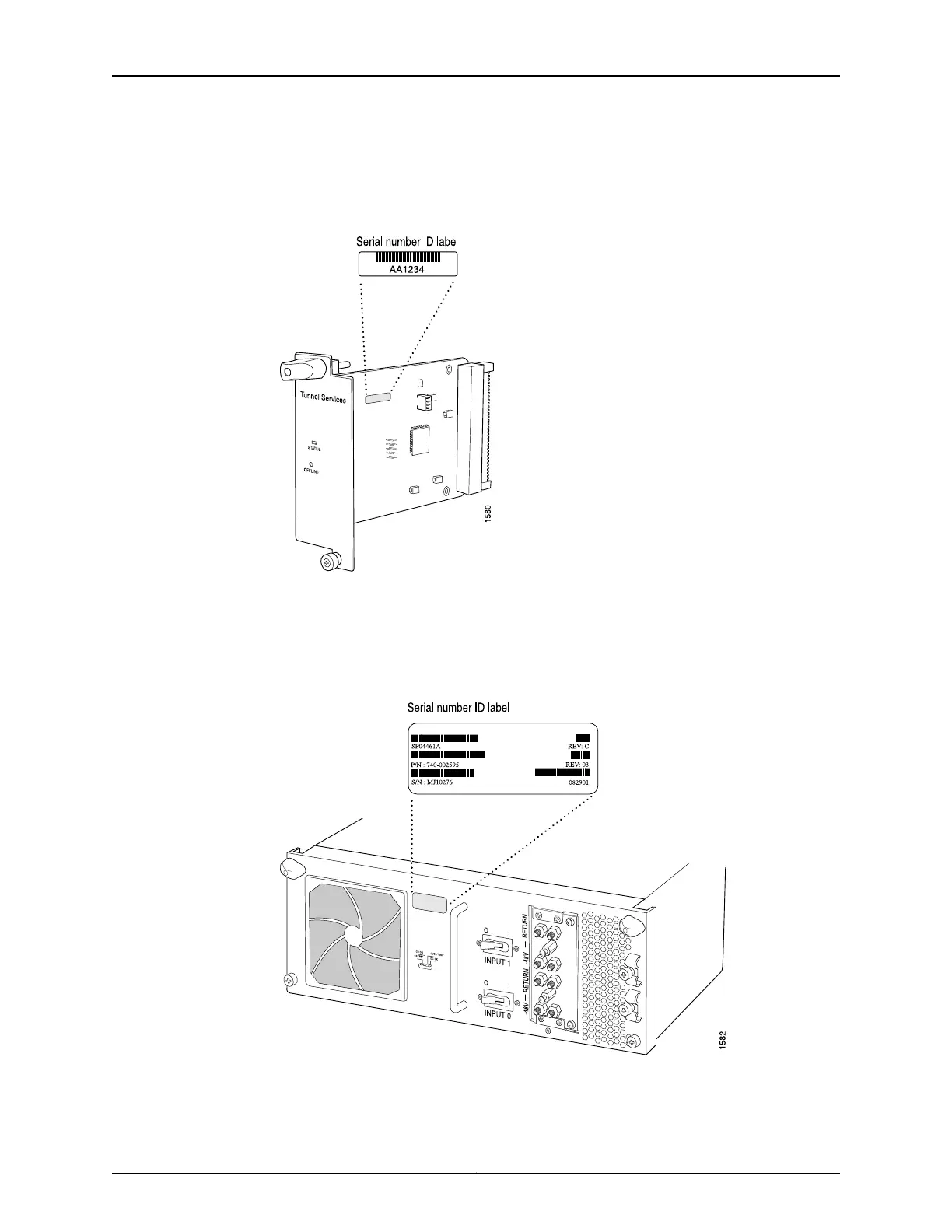

Figure 243: PIC Serial Number Label
Power Supply Serial Number Label
For the two-input 160-A DC power supply, the serial number label is located on the left
side of the power supply faceplate (see Figure 244 on page 489 and Figure 245 on page 490).
Figure 244: Two-Input 160-A DC Power Supply Serial Number Label
For the three-input 240-A DC power supply, the serial number label is located on the left
side of the power supply faceplate (see Figure 245 on page 490).
489Copyright © 2017, Juniper Networks, Inc.
Chapter 35: Locating Component Serial Numbers
