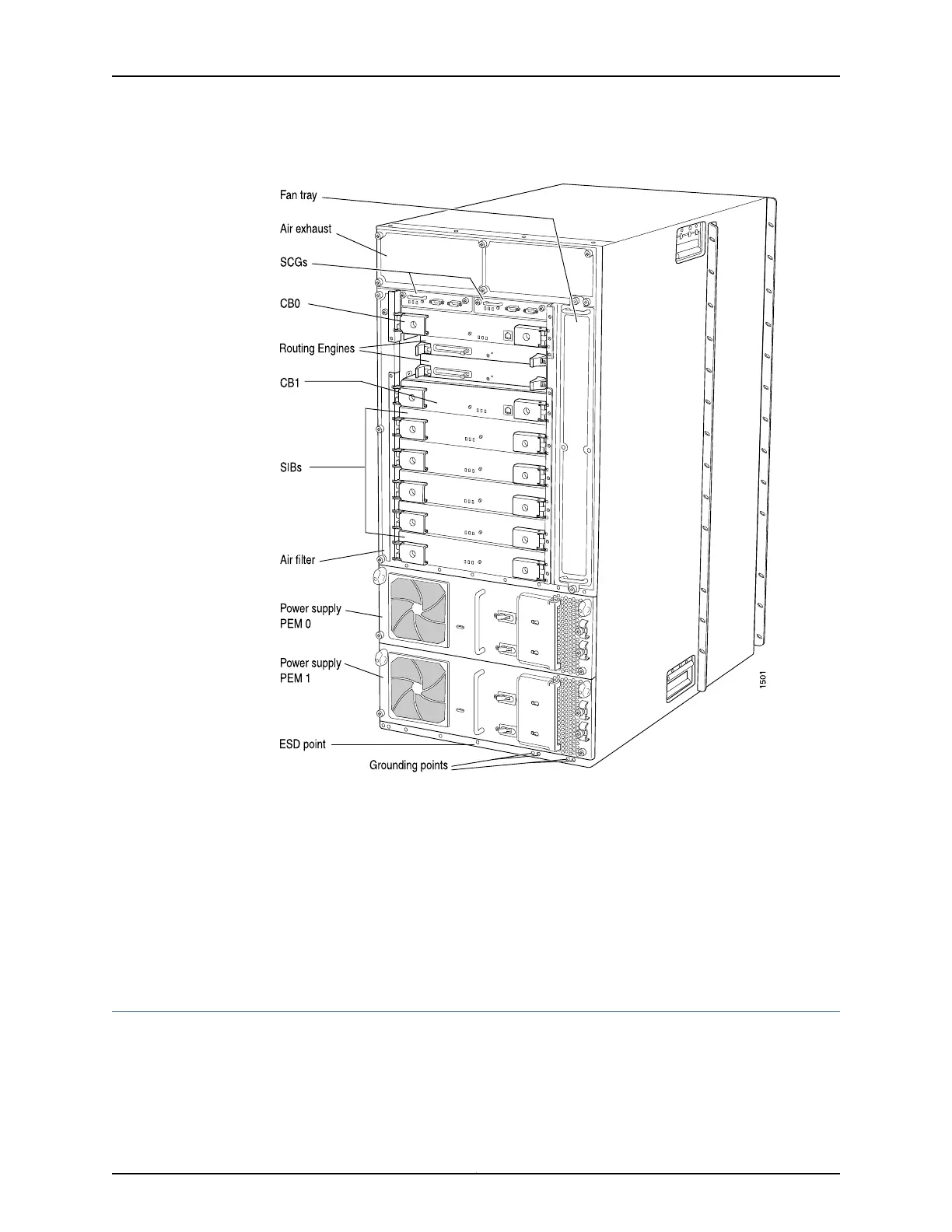

Figure 5: Rear View of T640 Chassis
For chassis serial number information , see “Locating T640 Component Serial Numbers
Using the CLI” on page 485.
Related
Documentation
T640 Hardware Component Overview on page 13•
• T640 Physical Specifications on page 119
• T640 Chassis Grounding Cable and Lug Specifications on page 118
• T640 Installation Safety Guidelines on page 511
T640 Midplane Description
The T640 Core Router midplane is located in the center of the chassis and forms the
rear of the FPC card cage (see Figure 6 on page 18). The FPCs install into the midplane
from the front of the chassis, and the SIBs, Routing Engines, control boards, and SCGs
17Copyright © 2017, Juniper Networks, Inc.
Chapter 3: Chassis Components and Descriptions
