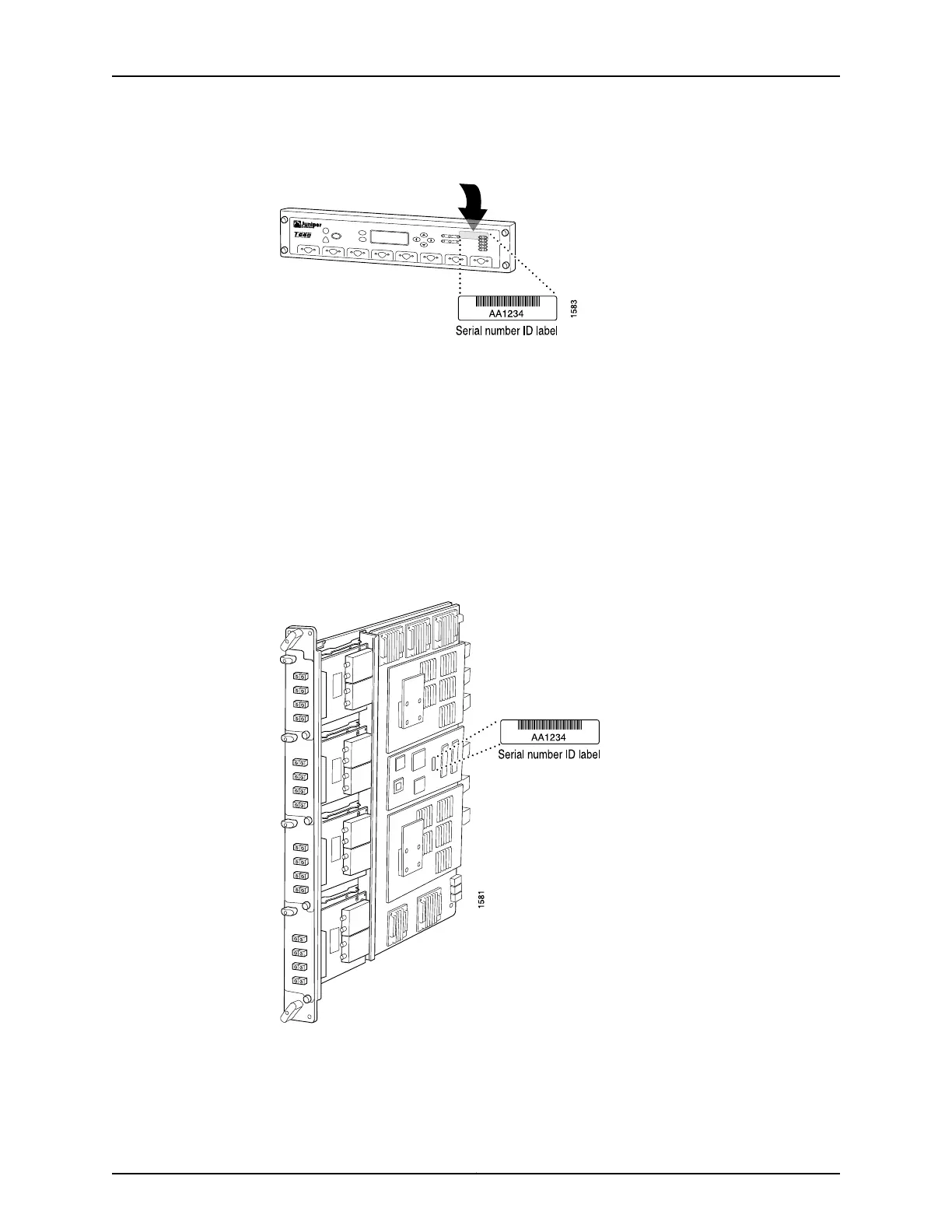

Figure 241: Craft Interface Serial Number Label
FPC Serial Number Label
The location of the serial number label varies depending on the FPC:
•
Type 1 FPCs: located near the top PIC slot
•
Type 2 FPCs: located near the top PIC slot
•
Type 3 FPCs: located center of the right side
•
Type 4 FPCs: located center left near the top of the FPC
For example, Figure 242 on page 488 shows the serial number location for a Type 4 FPC.
Figure 242: FPC Serial Number Label
PIC Serial Number Label
The exact location serial number label is different on different PICs, depending on the
placement of components on the PIC board. In this example, the serial number label is
Copyright © 2017, Juniper Networks, Inc.488
T640 Core Router Hardware Guide
