7.2.7 Saving and loading formularies
You can save equation sets with up to 5 formularies in the internal storage of the instru-
ment, or to USB flash drive, and load them later. Furthermore, you can move or copy
saved equation sets from internal storage to USB flash drive, and vice versa, see
Chapter 10.6, "Export and import", on page 225.
To save an equation set
1. In the "Mathematics" menu, tap "Save".
2. Select the "Destination": internal storage or USB, and the directory.
The destination /USB_FRONT is only active, if a USB flash drive is connected to the
front USB port.
3. Enter the filename.
4. Optionally, enter a comment.
5. Tap "Save".
7.3 Reference waveforms
To compare waveforms and analyze differences between them, you can display refer-
ence waveforms.
Reference waveforms are waveform data stored in the internal reference storages.
Four reference waveforms are available and can be displayed: R1 to R4.
The display of a reference waveform is independent from the display of the source
waveform; you can change the vertical and also horizontal scales and positions. The
current scale values are shown in the waveform label of the reference waveform.

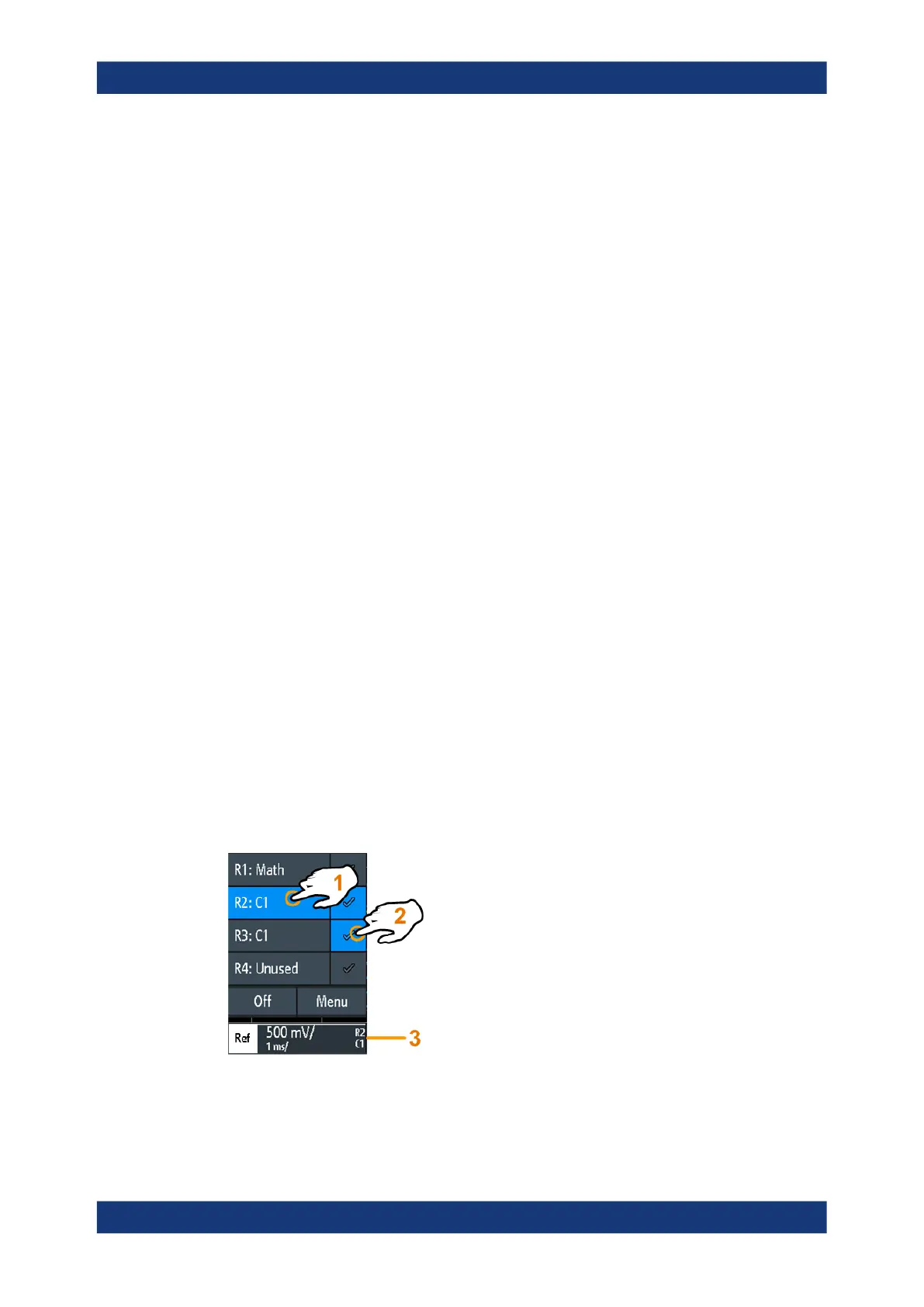

Short menu
The short menu shows the status of all reference waveforms.
1
= select a reference waveform
2 = display a reference waveform
3 = Reference waveform label with vertical and horizontal scale, reference number and source waveform
Reference waveforms
