Signal generation (option R&S RTM-B6)
R&S
®
RTM3000
416User Manual 1335.9090.02 ─ 09
16.2.4 Settings for arbitrary pattern
Access: "Menu" > "Pattern Gen." > "Pattern" = "Arbitrary"
● General settings....................................................................................................416
● Pattern setup.........................................................................................................417
● Timing setup..........................................................................................................418

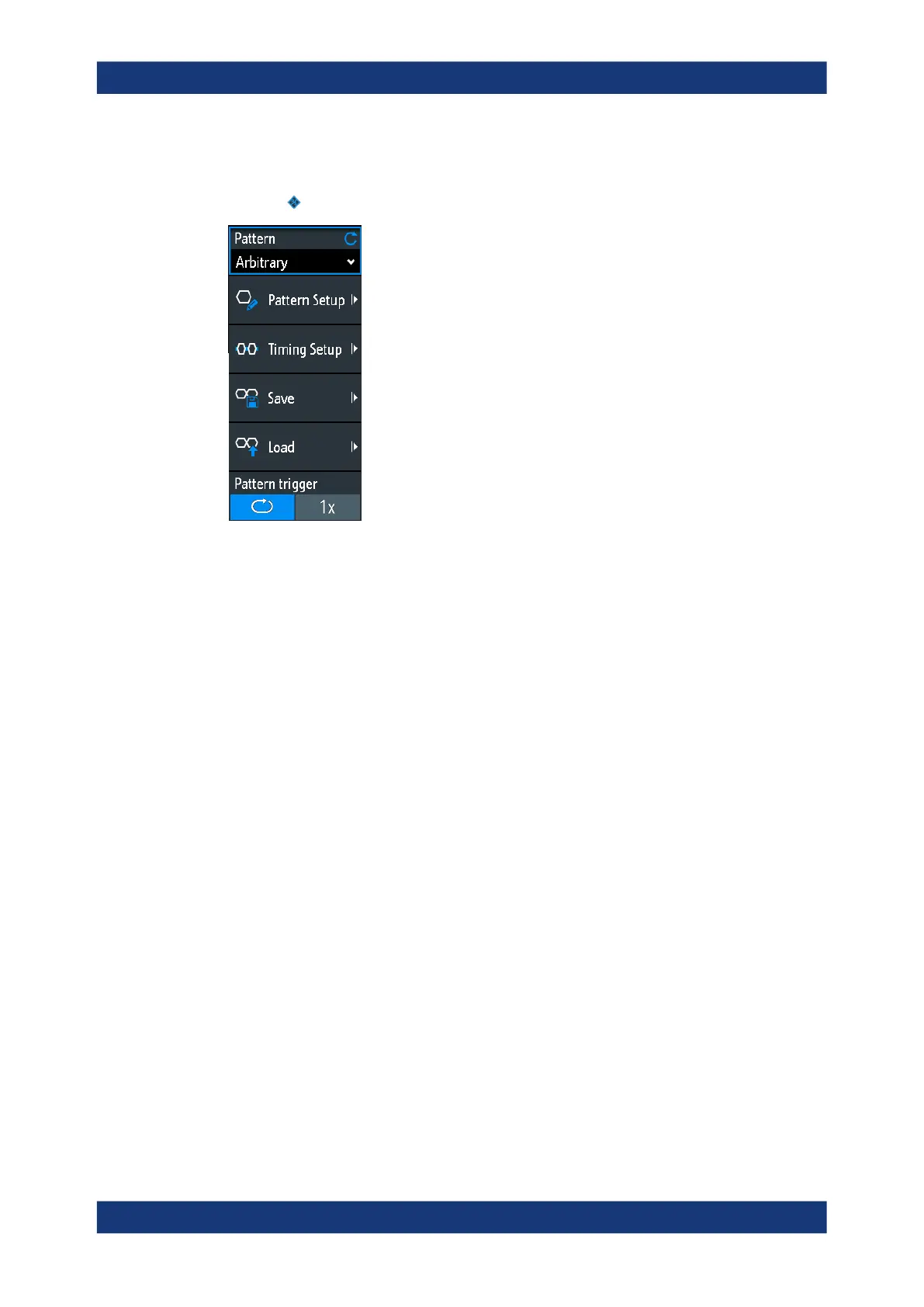

16.2.4.1 General settings
Pattern Setup
Opens the menu to define the individual bit values of the pattern.
See Chapter 16.2.4.2, "Pattern setup", on page 417.
Timing Setup
Opens the menu to define the timing parameters.
See Chapter 16.2.4.3, "Timing setup", on page 418.
Save
Opens a dialog box to save a waveform as an ARB pattern. The text files contatining
remote commands are saved in *.scp format.
You can select the "Location" to which the waveform file (internal or USB) is saved.
Tap "Save" to save the file under the current name.
Tap "New File" and enter the name of the new file you want to save.
You can also delete obsolete files in the dialog box.
Load
Provides functions to load an ARB waveform.
Select the "Location" of the waveform file (internal or USB), and the file. Tap "Load".
You can also delete obsolete files in the dialog box.
Pattern generator
