Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
344User Manual 1335.9090.02 ─ 09

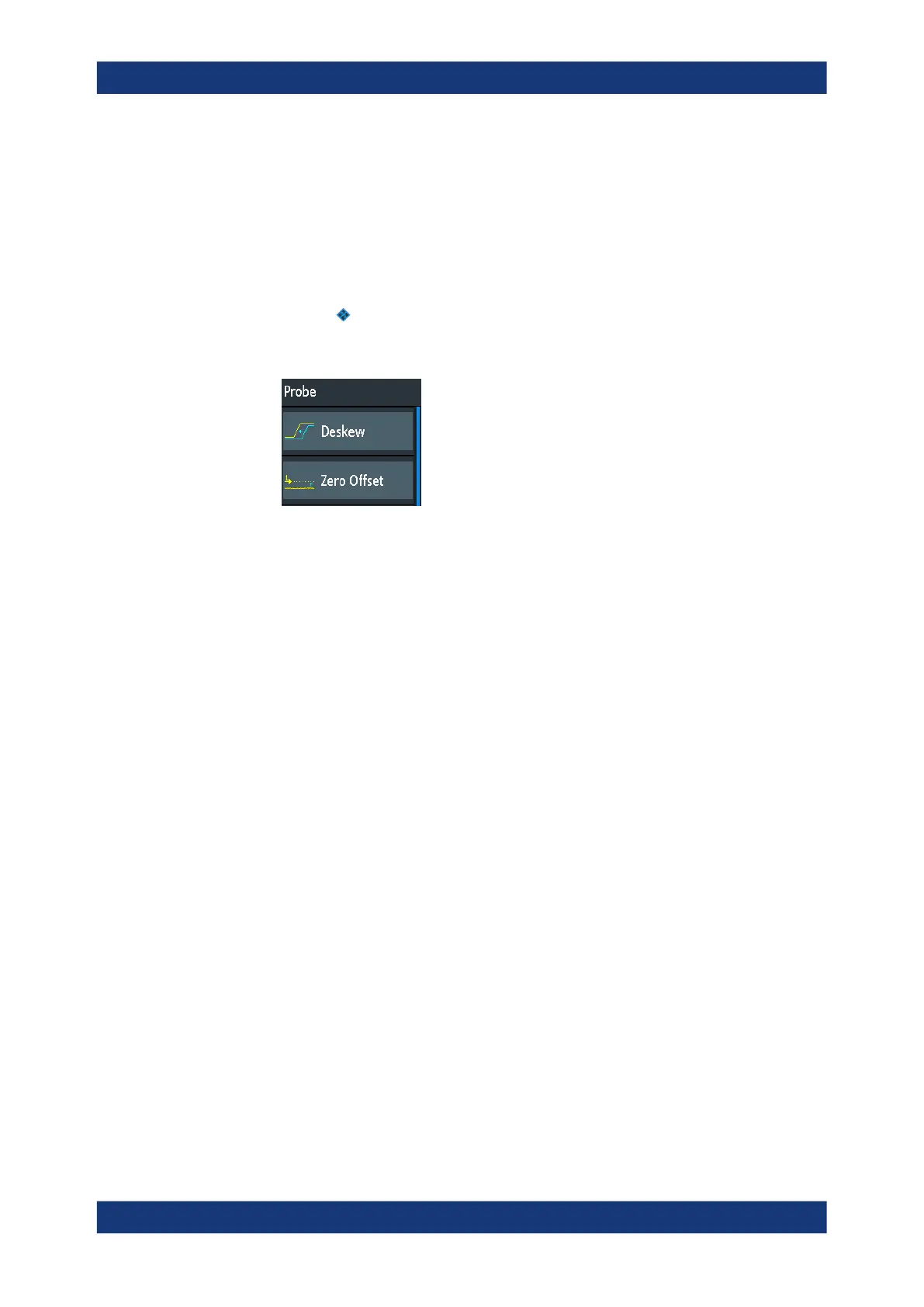

14.1.2 Probe settings for power measurements
► To open the "Probe" settings menu:
a) Press the Apps Selection key. Tap "Power Analysis".
b) Select a measurement.
c) Close the "Power Analysis".
d)
Tap the
menu icon in the lower right corner of the screen.
e) Scroll down. Select "Power".
f) In the "Power" menu, select "Probe".
Deskew
Use the R&S RT-ZF20 power deskew fixture to deskew the probes.
Starts the automatic deskew procedure to align the waveforms of all visible channels. It
is necessary to deskew if a current and a voltage probe is used in the measurement.
Remote command:
POWer:DESKew[:EXECute] on page 716
Zero Offset
Differences in DUT and oscilloscope ground levels may cause larger zero errors affect-
ing the waveform. If the DUT is ground-referenced, the "Zero Offset" corrects the zero
error of the probe to optimize measurement results at small signal levels.
Short the signal pin and the ground pin together and connect them to the ground of the
DUT. Then press "Zero Offset".
Remote command:
POWer:ZOFFset[:EXECute] on page 716
14.2 Report settings
In the "Report" menu you can describe your device under test (DUT) and the test con-
ditions. This information can be used on the title page for a report generated from the
"Power Analysis" measurements.
Report settings
