Signal generation (option R&S RTM-B6)
R&S
®
RTM3000
407User Manual 1335.9090.02 ─ 09
16.1.3 Sweep settings
Access: [Gen] key > "Sweep"

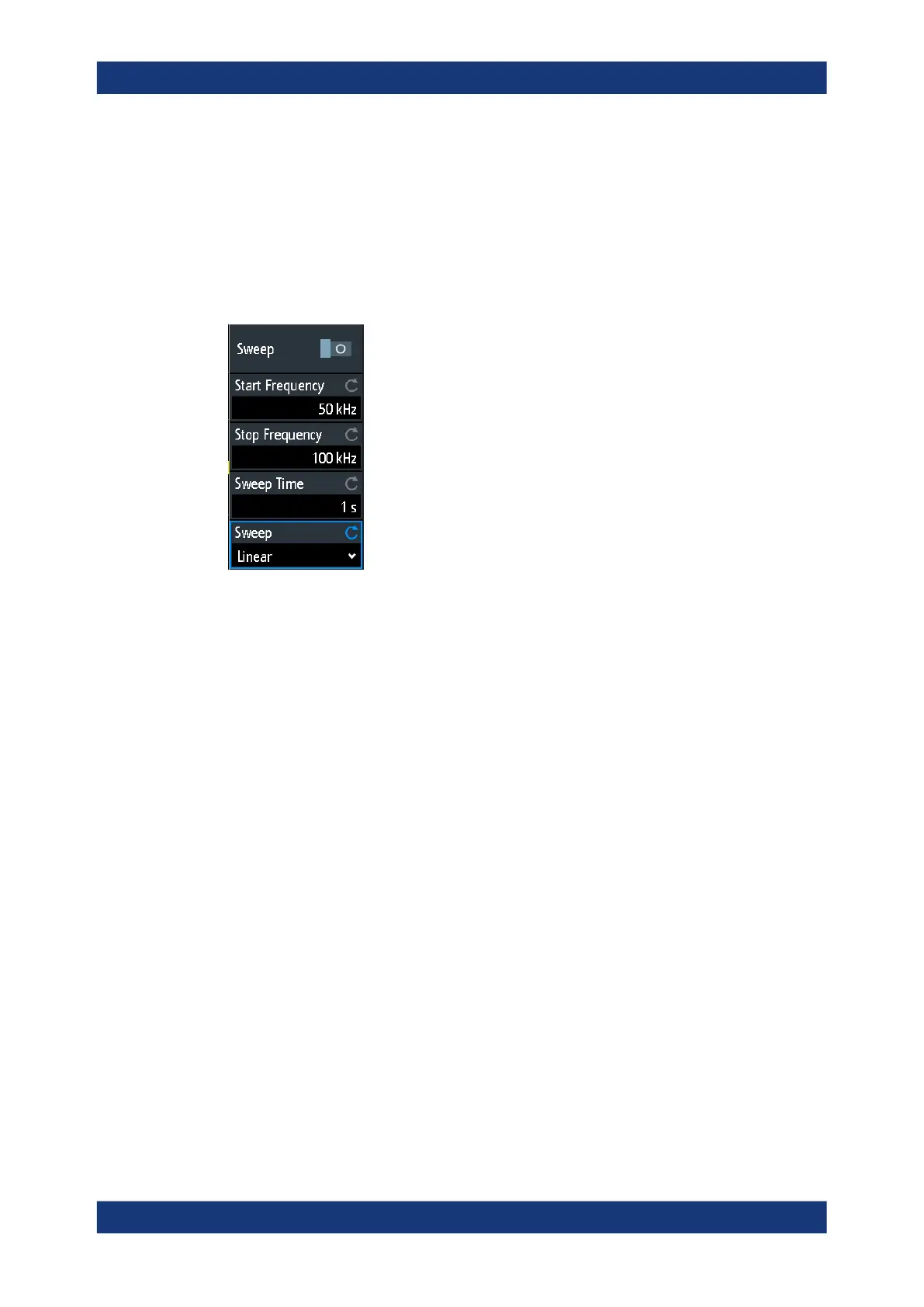

In the sweep mode, the R&S RTM3000 generates a signal whose frequency gradually
changes from the Start Frequency to the Stop Frequency for a certain Sweep Time.
For a step-by-step description of the sweep setup, see "To configure a sweep wave-
form" on page 404.
Sweep
Enables or disables the sweeping.
Remote command:
WGENerator:SWEep[:ENABle] on page 787
Start Frequency
Sets the start frequency of the sweep signal.
Remote command:
WGENerator:SWEep:FSTart on page 786
Stop Frequency
Sets the stop frequency of the sweep signal.
Remote command:
WGENerator:SWEep:FEND on page 786
Sweep Time
Sets the duration of the sweep.
Remote command:
WGENerator:SWEep:TIME on page 787
Sweep
Sets the type of the sweep, a linear, logarithmic or triangle-shaped change of the fre-
quency. The triangle-shaped sweep will run from the "Start Frequency" to the "Stop
Frequency" and then from the "Stop Frequency" back to the "Start Frequency".
Remote command:
WGENerator:SWEep:TYPE on page 787
