5. Tap "Save".
The data is saved to a CSV file.
7.5.2 General search settings
General search settings are independent of the search type. They are described in the
current section. The specific settings for individual search types are described in the
following sections.

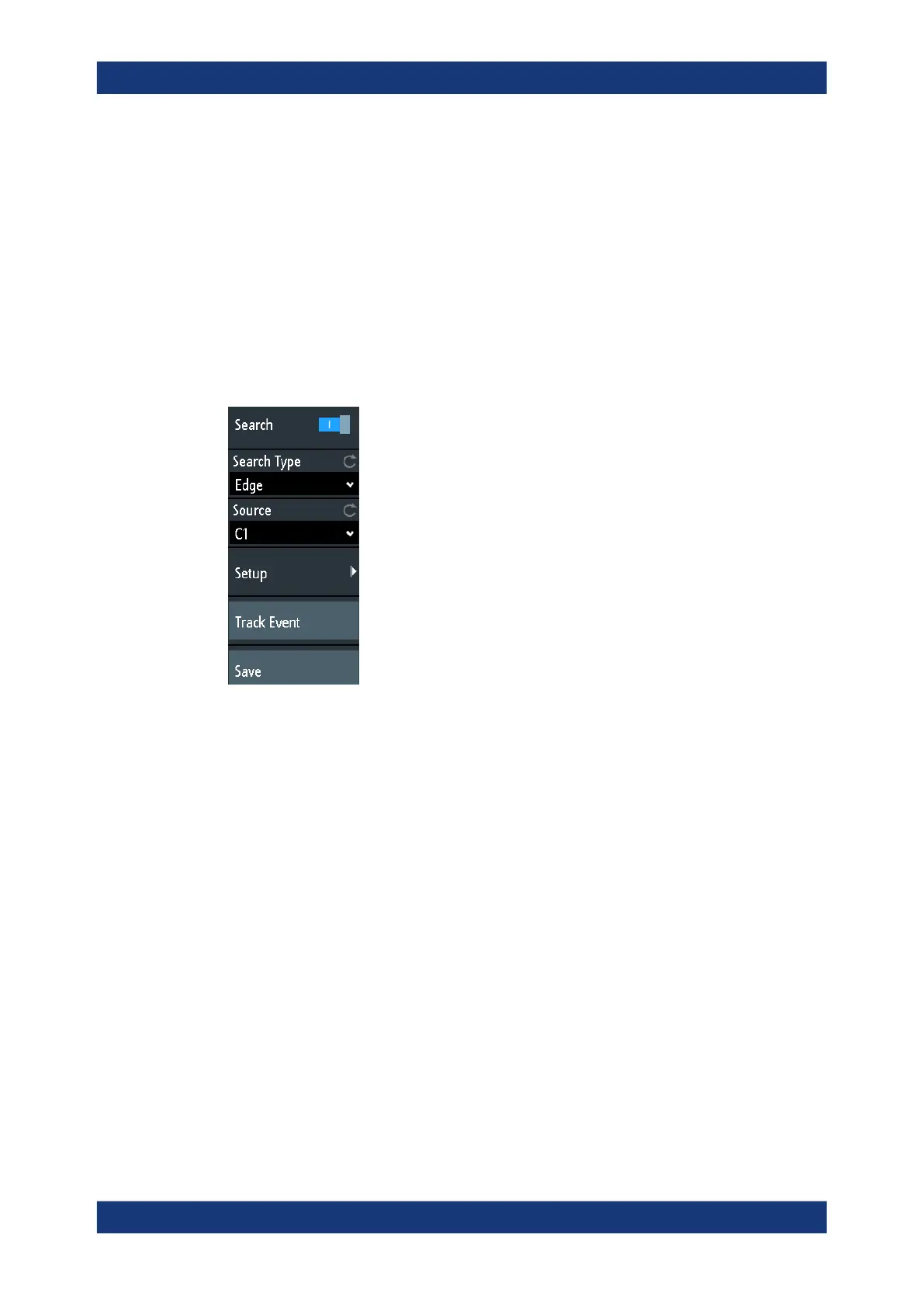

► To open the "Search" menu, press the [Search] key.
Search
Enables and disables the search mode.
Remote command:
SEARch:STATe on page 488
Search Type
Selects the event type you want to search for.
"Edge"
Similar to the edge trigger, an edge search result is found when the
waveform passes the given level in the specified direction.
For settings, see Chapter 7.5.3, "Edge search", on page 135.
"Width"
The width search finds pulses with an exact pulse width, or pulses
shorter or longer than a given time, or pulses inside or outside the
given time range. It is similar to the width trigger.
For settings, see Chapter 7.5.4, "Width search", on page 136.
"Peak"
The peak search finds pulses exceeding a given peak-to peak value.
For settings, see Chapter 7.5.5, "Peak search", on page 137.
"Rise/Fall time"
The rise or fall time search finds slopes with an exact rise or fall time,
or rise/fall times shorter or longer than a given limit, or rise/fall times
inside or outside a given time range.
For settings, see Chapter 7.5.6, "Rise/fall time search", on page 137.
