6.9 Runt trigger
A runt is a pulse lower than normal in amplitude. The amplitude crosses the first
threshold twice in succession without crossing the second one. For example, this trig-
ger can detect logic, digital, and analog signals remaining below a specified threshold
amplitude because I/O ports are in undefined state.

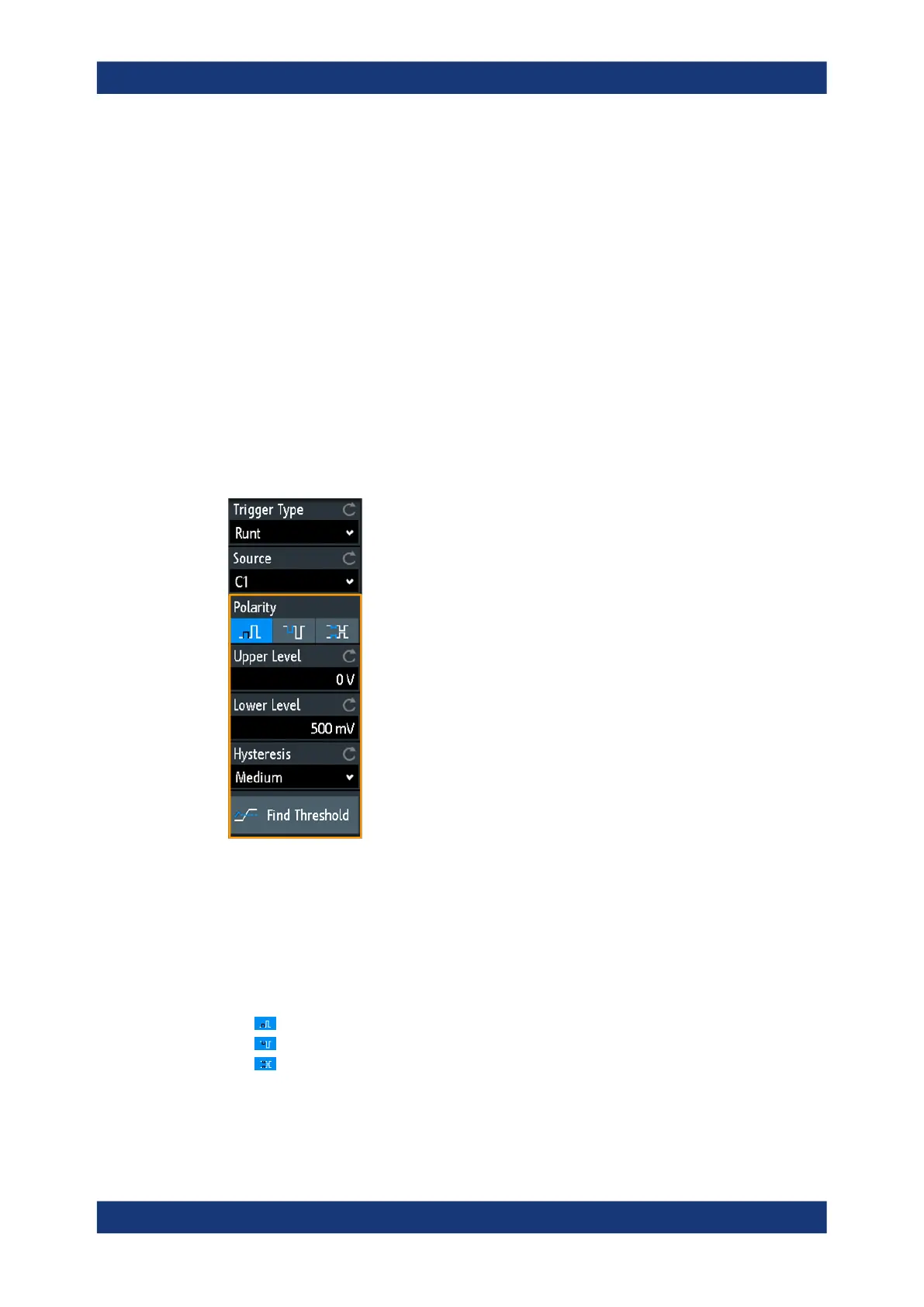

► [Trigger] > "Trigger Type" = "Runt"
Polarity.......................................................................................................................... 93
Upper Level...................................................................................................................94
Lower Level...................................................................................................................94
Hysteresis..................................................................................................................... 94
Find Threshold.............................................................................................................. 94
Polarity
Sets the polarity of a pulse, that is the direction of the first pulse slope.
●
positive going pulse, the width is defined from the rising to the falling slopes.
●
negative going pulse, the width is defined from the falling to the rising slopes.
●
selects both positive and negative going pulses.
Remote command:
TRIGger:A:RUNT:POLarity on page 472
Runt trigger
