"TDM"
The Time Division Multiplexed audio format can transfer of up to 8
audio data channels on one line. On the word select line, it uses
frame synchronization pulses to identify the beginning of a frame. On
the data line, channel blocks of a defined length are transmitted.
Each block contains an audio word.
Remote command:
BUS<b>:I2S:AVARiant on page 667
13.7.3 Setup of audio variants
Depending on the selected audio variant, different settings are available.

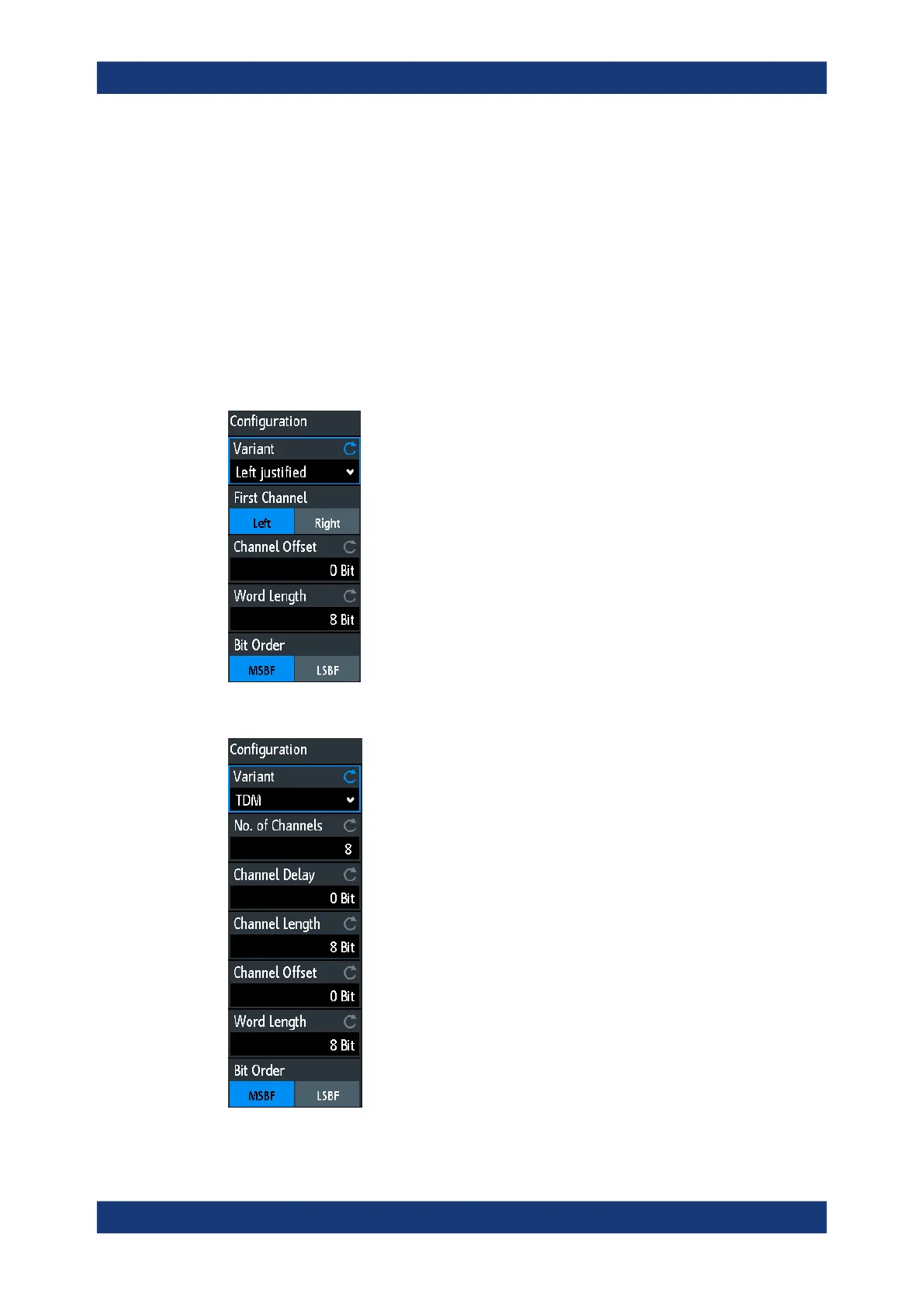

Figure 13-39: Setup menu Audio Left Justified Variant
Figure 13-40: Setup menu Audio TDM Variant
Audio signals (option R&S RTM-K5)
