Waveform setup
R&S
®
RTM3000
59User Manual 1335.9090.02 ─ 09
"Temperature"
Display in temperature colors. Blue corresponds to rare occurrences
of the samples, while white indicates frequent ones.
"Rainbow"
Display in rainbow colors. Blue corresponds to rare occurrences of
the samples, while red indicates frequent ones.
"Fire"
Display in fire colors. Yellow corresponds to rare occurrences of the
samples, while red indicates frequent ones.
"Default"
Displays the waveform in its default monochrome color.
Remote command:
CHANnel<m>:WCOLor on page 439
Probe
See Chapter 5.4.2, "Probe settings for probes with BNC connector", on page 62 and
Chapter 5.4.3, "Probe settings for probes with Rohde & Schwarz interface",
on page 63.
Threshold
See Chapter 5.3.4, "Threshold settings", on page 59.
Label
See Chapter 5.3.5, "Label settings", on page 60.
5.3.4 Threshold settings
A threshold is used for digitization of analog signals. If the signal value is higher than
the threshold, the signal state is high (1 or true for the Boolean logic). Otherwise, the
signal state is considered low (0 or false) if the signal value is below the threshold.
Access: [Ch <n>] > "Threshold" (scroll down).

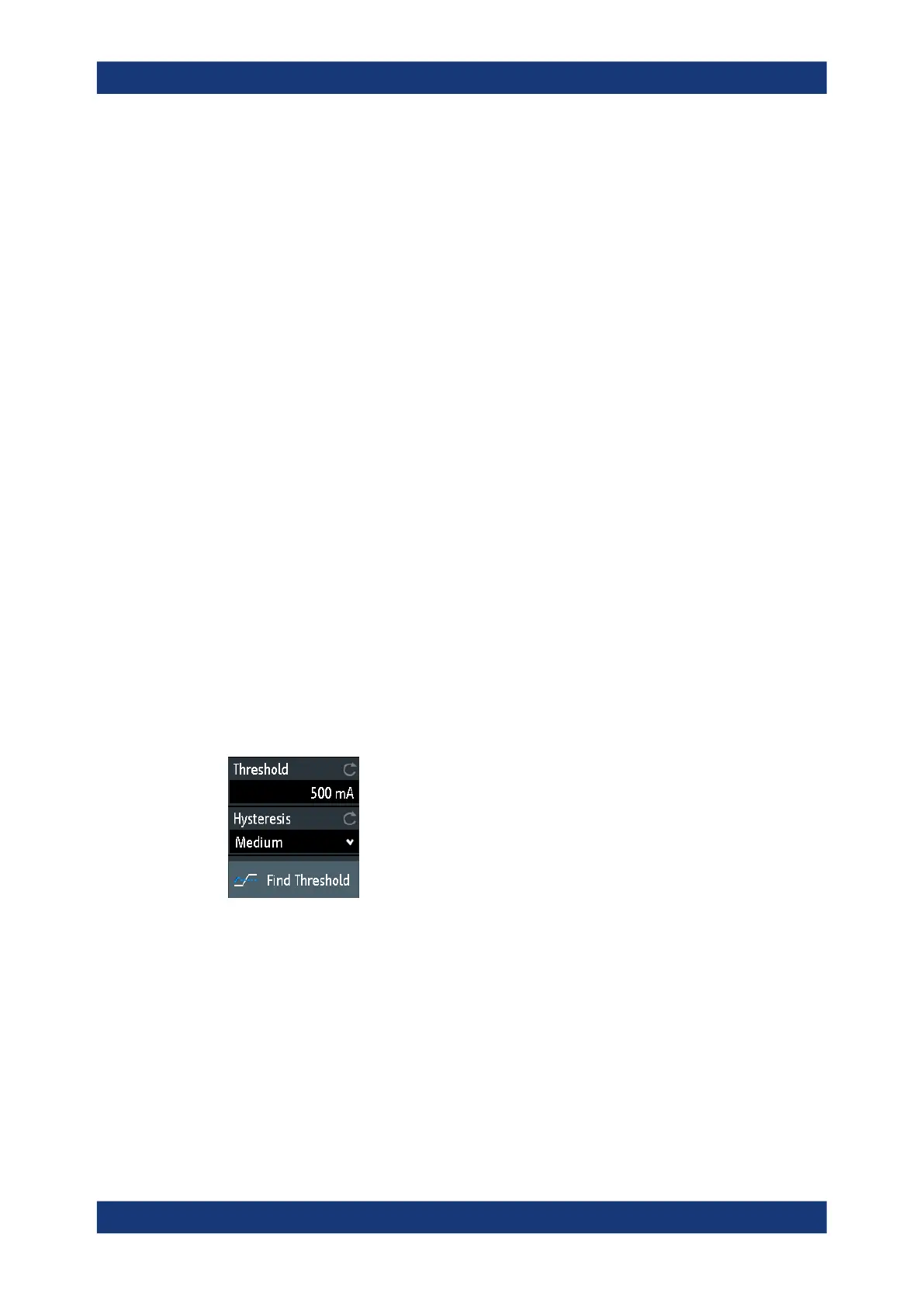

Threshold
A threshold is used for digitization of analog signals. If the signal value is higher than
the threshold, the signal state is high (1 or true for the Boolean logic). Otherwise, the
signal state is considered low (0 or false) if the signal value is below the threshold.
Remote command:
CHANnel<m>:THReshold on page 440
Hysteresis
To avoid the change of signal states due to noise, set the hysteresis. If the signal oscil-
lates inside the hysteresis range and crosses the threshold, no state transition occurs.
Vertical setup
