Operating basics
R&S
®
RTM3000
40User Manual 1335.9090.02 ─ 09
Spread or pinch two fingers in horizontal direction to change the horizontal scale of all
waveforms. In frequency domain, the frequency span is changed.
Swipe two fingers
If the history option R&S RTM-K15 is installed, swipe two fingers in the diagram to
scrolls through the history segments.
4.4 Front panel keys
For an overview of the front panel keys, see figure 3-1 on page 31.
The keys and knobs at the front panel are grouped in functional blocks:
●
Horizontal section: see Chapter 5.2.1, "HORIZONTAL controls", on page 49.
●
Vertical section: see Chapter 5.3.1, "VERTICAL controls", on page 52.
●
Trigger section: see Chapter 6.1, "Trigger controls", on page 78
●
Action section, see Chapter 4.4.1, "Action controls", on page 40.
●
Analysis section, see Chapter 4.4.2, "Analysis controls", on page 41.

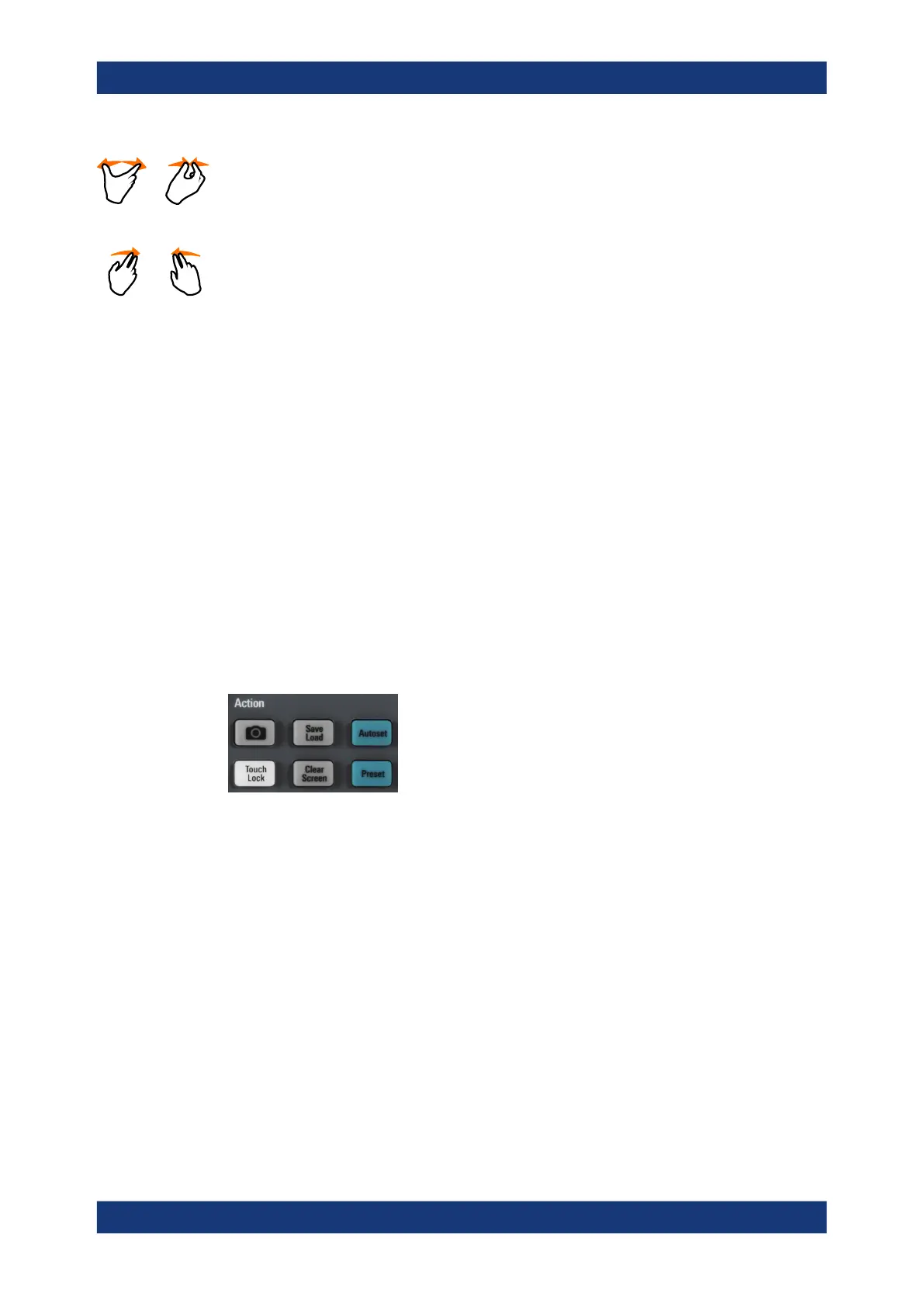

4.4.1 Action controls
The Action keys set the instrument to a defined state, and provide save and load func-
tions.
[Camera]
Saves screenshots, waveforms and/or settings according to the configuration in [Save
Load] > "onetouch".
[Save Load]
Opens the "File" menu, where you can:
●
Save instrument settings, waveforms, reference waveforms, and screenshots
●
Restore (load) data which were saved before
●
Import and export settings and reference waveforms
●
Configure the screenshot output
●
Configure the behavior of the [Camera] key
[Touch Lock]
Locks the touchscreen to prevent unintended use. When the touchscreen is off, the
key is illuminated. Press again to unlock the touchscreen.
Front panel keys
