Signal generation (option R&S RTM-B6)
R&S
®
RTM3000
419User Manual 1335.9090.02 ─ 09

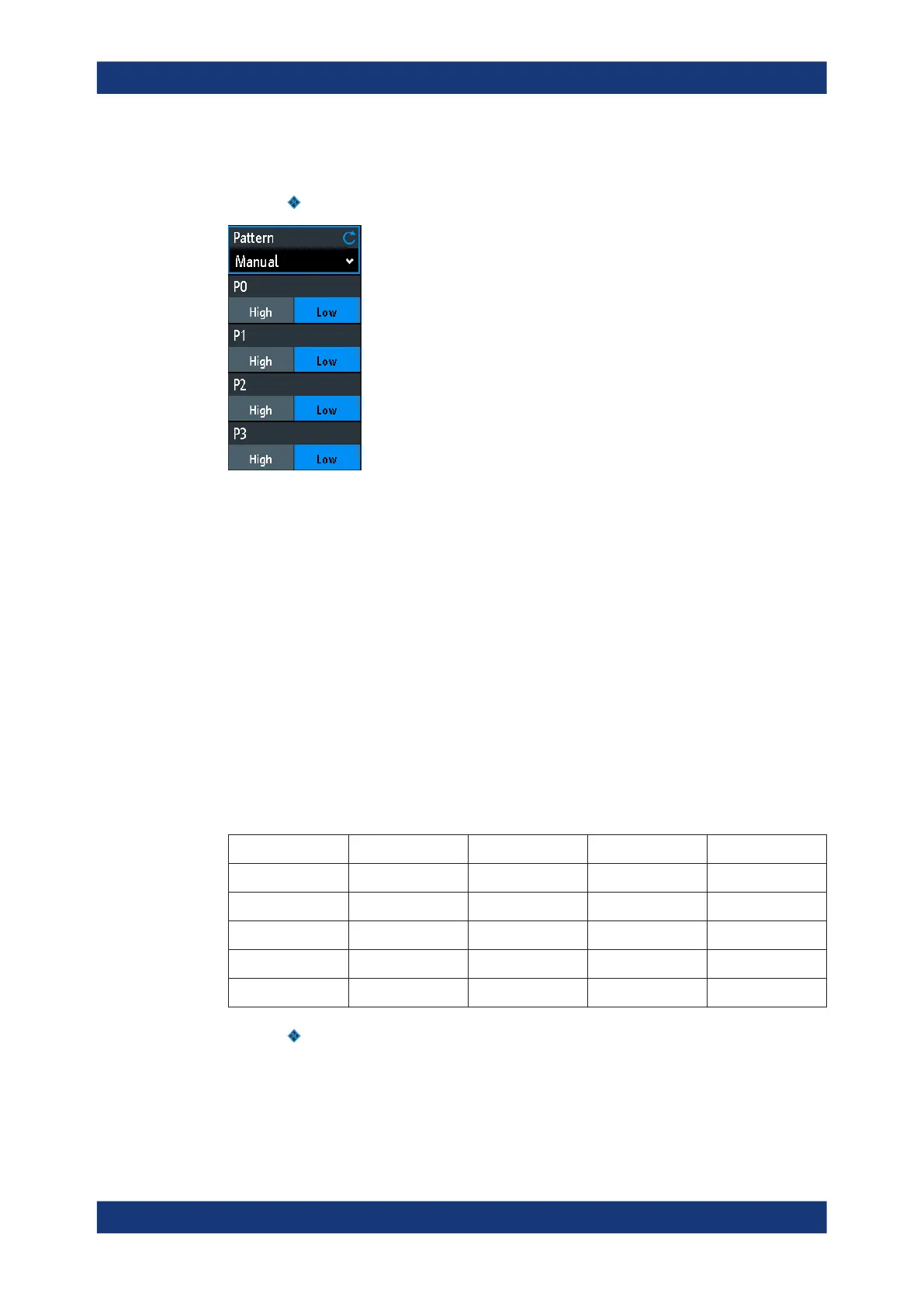

16.2.5 Settings for manual pattern
Access: "Menu" > "Pattern Gen." > "Pattern" = "Manual"
P0/P1/P2/P3
Sets the states to high or low for the respective pin of the manual pattern.
Remote command:
PGENerator:MANual:STATe<s> on page 793
16.2.6 Settings for serial buses
You can use the pattern generator to generate signals according to serial protocols
(bus signals).
The genrated serial protocol signals are pseudo random pattern and are not adaptable.
Only the protocol type and the data rate can be selected.
The contact at the upper left is always ground and the signal levels are about 1 V. The
following table shows how the four outputs P0, P1, P2 and P3 are used, depending on
the signal.
Signal P0 P1 P2 P3
UART Tx Rx Unused Unused
SPI Clock Mosi Miso Chip Select
I2C Clock SCL Data SDA Unused Unused
CAN CAN H CAN L Unused Unused
LIN High Low Unused Unused
Access: "Menu" > "Pattern Gen." > "Pattern" = "UART | SPI | I2C | CAN | LIN"
Pattern generator
