Waveform analysis
R&S
®
RTM3000
107User Manual 1335.9090.02 ─ 09
– Waveform color
Remote commands:
●
CALCulate:MATH<m>:STATe on page 479
●
CALCulate:MATH<m>:POSition on page 481
●
CALCulate:MATH<m>:SCALe on page 482
●
CALCulate:MATH<m>:WCOLor on page 482
●
Waveform transfer: see Chapter 17.9.1.3, "Math waveforms", on page 574
●
History data: see Chapter 17.6.5.2, "Displaying history segments", on page 505
and Chapter 17.6.5.3, "Timestamps", on page 509
7.2.4 Mathematic functions
When you open the "Mathematics" menu, the "Equation Set Editor" opens in parallel.

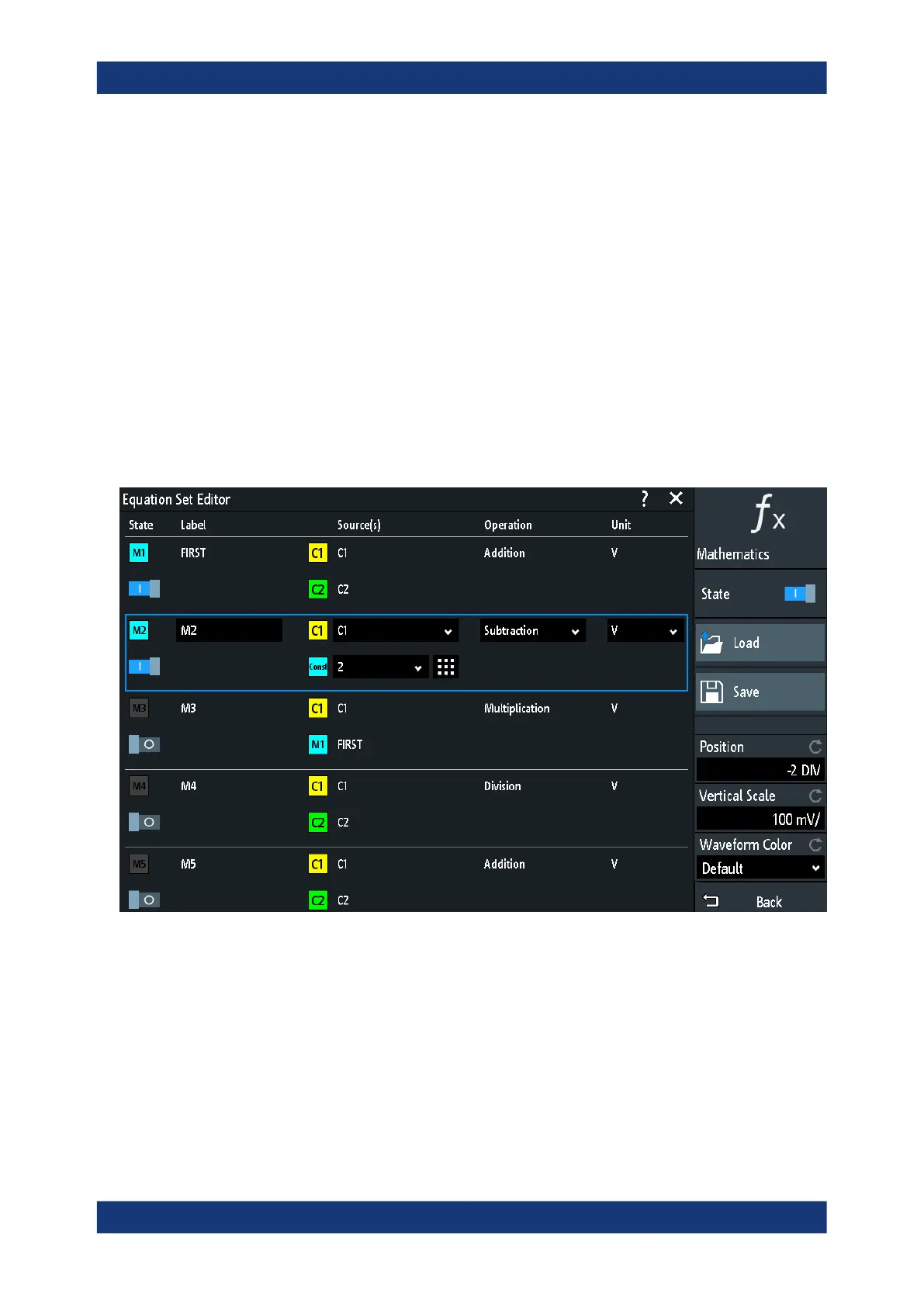

Figure 7-3: Mathematics menu and Equation Set Editor
The "Mathematics" menu is described in Chapter 7.2.3, "Settings for math waveforms",
on page 106.
In the "Equation Set Editor", you configure up to 5 math waveforms, set their visibility,
and define a label for each waveform. Each equation consists of one or two operands
and an operator. An operand (source) can be an input channel, a constant value, or a
math waveform with lower number.
The following operations are available:
Mathematics
