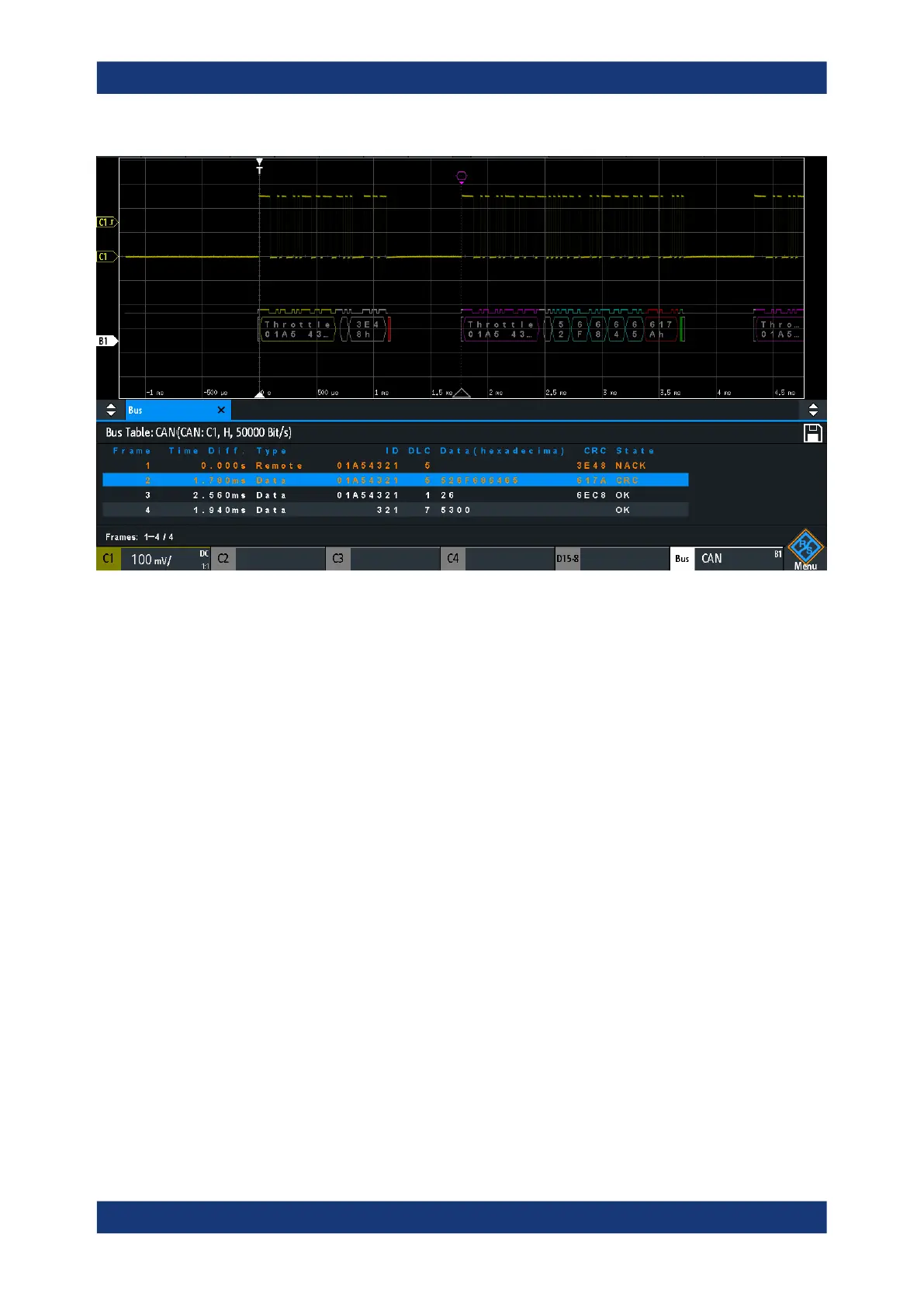

Figure 13-28: Decoded CAN signal with bus table and applied label list
13.6 LIN (option R&S RTM-K3)
The Local Interconnect Network (LIN) is a simple, low-cost bus system used within
automotive network architectures. LIN is usually a subnetwork of a CAN bus. The pri-
mary purpose of LIN is the integration of uncritical sensors and actuators with low-
bandwidth requirements. Common applications in a motor vehicle are the control of
doors, windows, wing mirrors, and wipers.
● The LIN protocol....................................................................................................298
● LIN configuration...................................................................................................300
● LIN trigger............................................................................................................. 302
● LIN decode results................................................................................................ 305
● Search on decoded LIN data................................................................................ 306
● LIN label list...........................................................................................................309
13.6.1 The LIN protocol
This chapter provides an overview of protocol characteristics, frame format, identifiers
and trigger possibilities. For detailed information, order the LIN specification on http://
www.lin-subbus.org/ (free of charge).
LIN (option R&S
RTM-K3)
