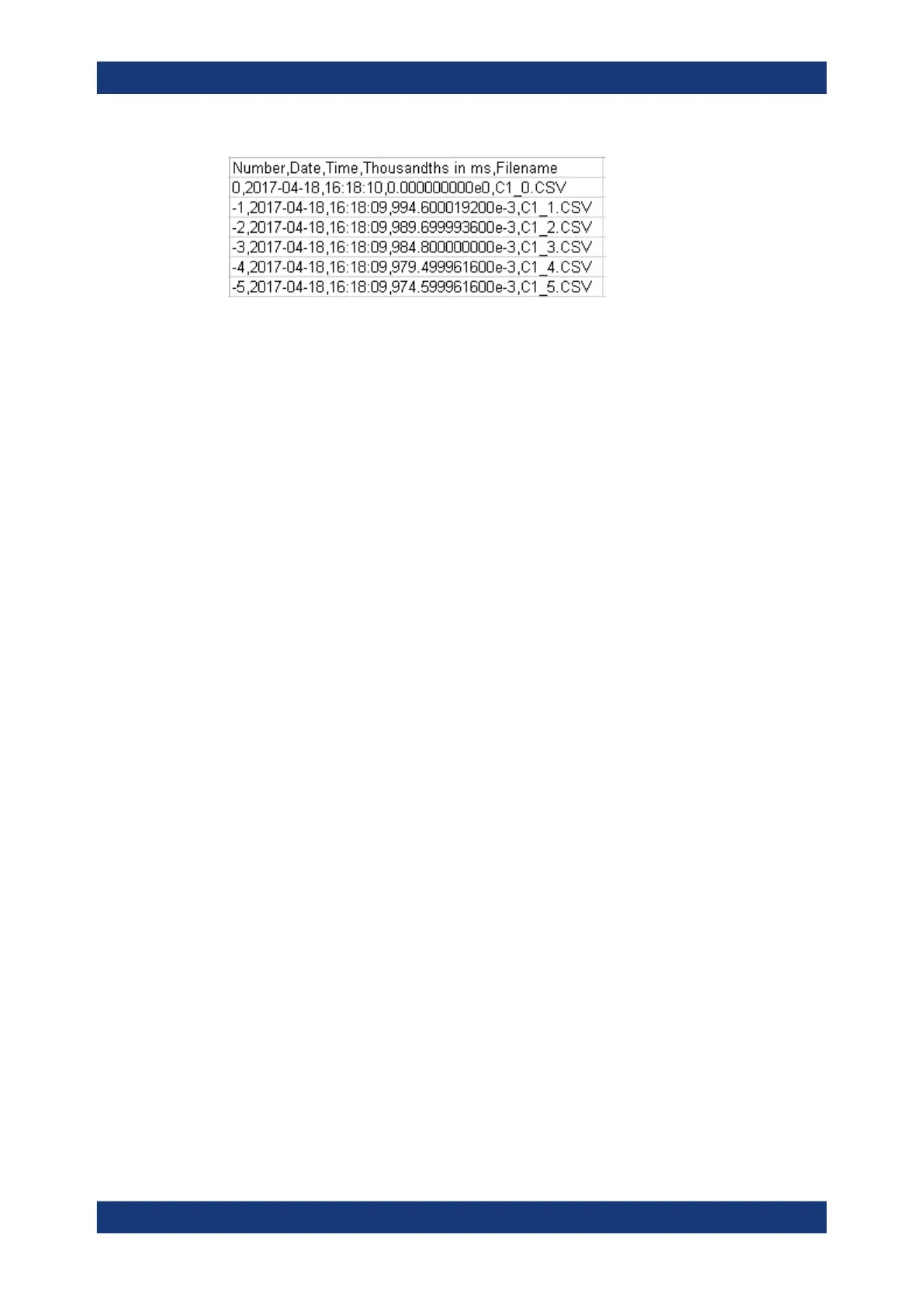

Figure 7-13: Content of a history index file
7.5 Search
7.5.1 Search conditions and results
The search functions of R&S RTM3000 can find all edges, pulse widths, peaks, or
other events in an acquisition that match the search conditions. For each search type,
specific settings are available. Searches can be performed on channel, math or refer-
ence waveforms, available sources depend on the search type.
To configure the search
1. Press the [Search] key.
2. Select the waveform that you want to search for events: "Source".
3. Select the event type that you want to find: "Search Type".
4. Configure the search conditions: "Setup".
The found events and the search conditions are shown in the result table at the bottom
of the display. The table shows the following result values: result number, time value,
and optional value depending on the search type (voltage, width).
During running acquisition, the results in the table are updated continuously, and the
events are marked at the top of the diagram by a brown triangle outline.
