Applications
R&S
®
RTM3000
192User Manual 1335.9090.02 ─ 09
The initial FFT display, usage, short menu, and FTT settings in the spectrum window
are the same as in the basic FFT. These basics are described in Chapter 9.2, "FFT
analysis", on page 173.

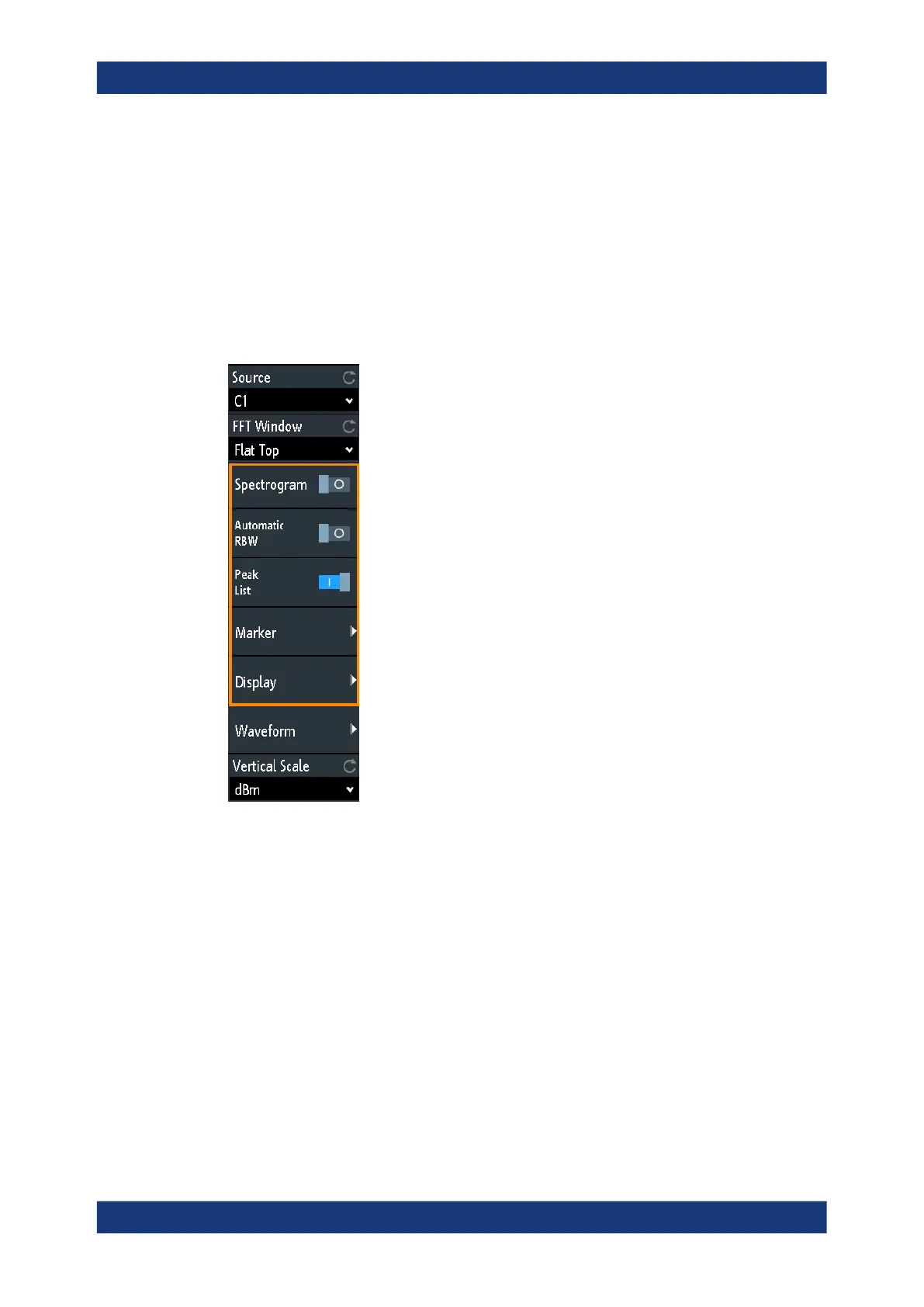

9.4.1 FFT menu with spectrum analysis
If the spectrum analysis option is installed, the FFT menu provides additional functions,
which are described in this chapter. Basic functions are described in Chapter 9.2.3.3,
"FFT menu", on page 177.
Spectogram
Enables the spectrogram.
For details, see Chapter 9.3.2, "Spectrogram", on page 183.
Remote command:
SPECtrum:DIAGram:SPECtrogram[:ENABle] on page 557
Automatic RBW
If enabled, the instrument sets an appropriate value for the resolution bandwidth. If dis-
abled, you can set a manual value, see "RBW" on page 177.
Remote command:
SPECtrum:FREQuency:BANDwidth[:RESolution]:AUTO on page 556
Peak List
Enables the peak search, and displays the peak list and the markers.
For details, see Chapter 9.3.3, "Peak list and markers", on page 185.
Spectrum analysis and spectrogram (option R&S
RTM-K37)
