Signal generation (option R&S RTM-B6)
R&S
®
RTM3000
414User Manual 1335.9090.02 ─ 09
Remote command:
PGENerator:PATTern:STATe on page 788
Output Voltage
Sets the output voltage of the generated pattern signal.
Remote command:
PGENerator:OUTPut:VOLTage on page 788
Pattern
Selects the pattern type.
"Square Wave"
Generates a square wave pattern at pin P0.
"Counter"
Generates a 4-bit wide counter pattern at pins P0 to P3.
"Arbitrary"
Creates, saves or loads an arbitrary 4-bit wide pattern and outputs it
at pins P0 to P3.
"Manual"
Sets the high or low state for each pin.
"UART, SPI, I2C, CAN, LIN, Audio-I2S, Audio-TDM"
Generate a bus signal for measurements without measurement
object.
"PWM, PWM - RGB LED, PWM-TestSignals"
Generate various pulse width modulated signals.
Remote command:
PGENerator:FUNCtion on page 787
16.2.2 Settings for square wave pattern
Access:

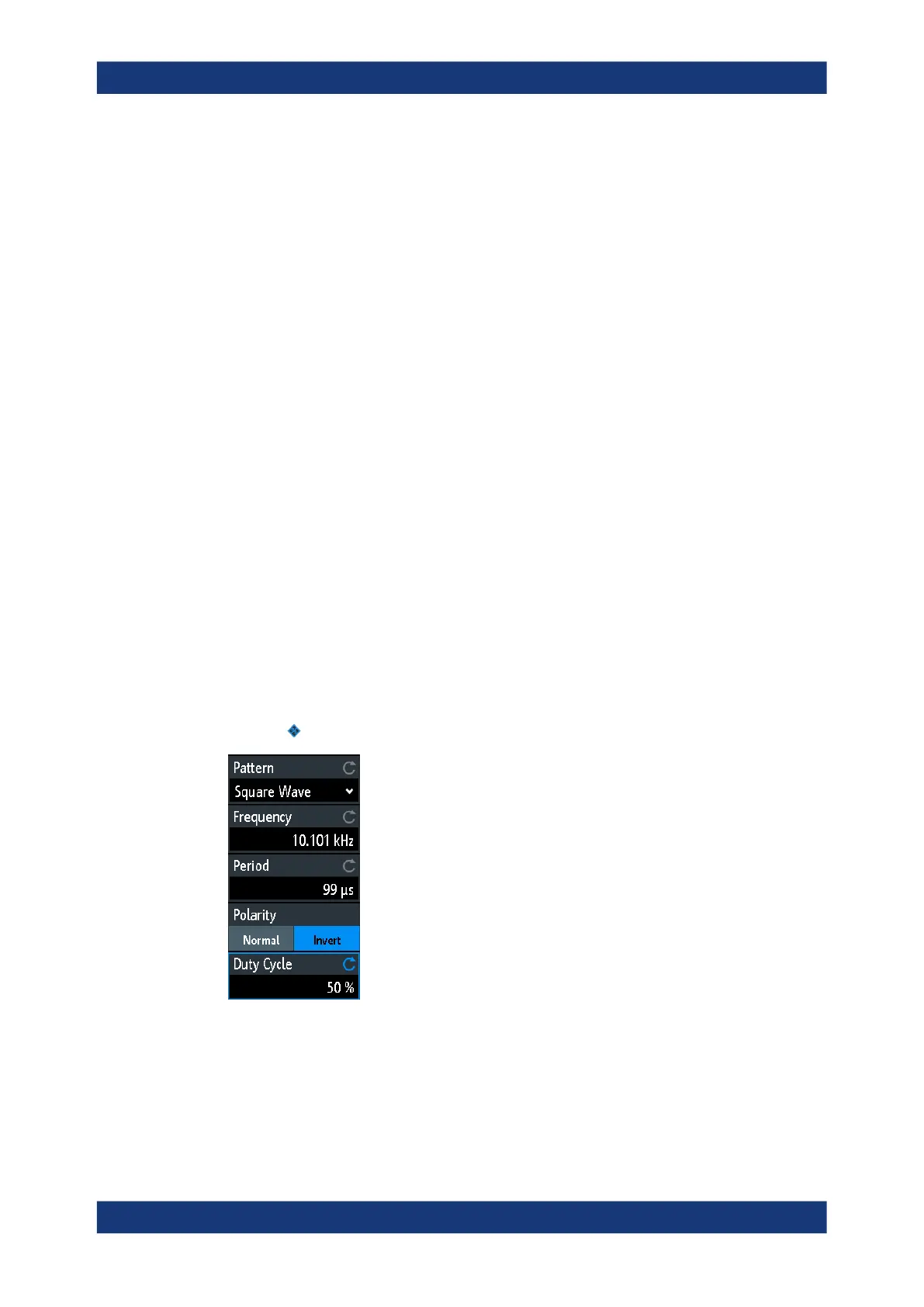

"Menu" > "Pattern Gen." > "Pattern" = "Square Wave"
Frequency
Sets the frequency of the square wave.
The values of the "Frequency" and "Period" depend on each other, as:
Period
=
1
/
Frequency
If you change the value, the "Period" is adjusted accordingly.
