Trigger
R&S
®
RTM3000
85User Manual 1335.9090.02 ─ 09

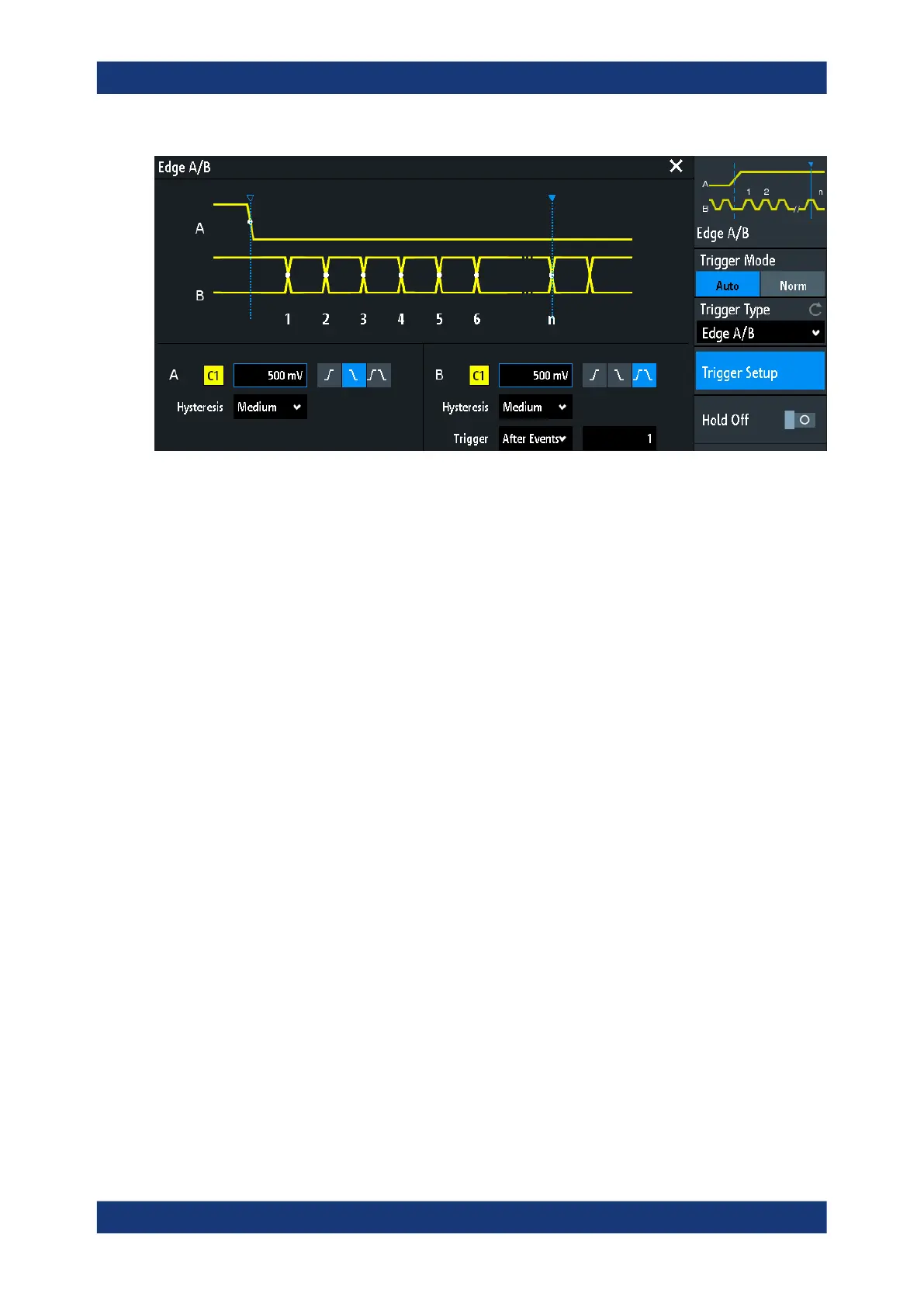

Trigger Setup
Opens a dialog where you configure the trigger sequence. On the left, the first edge
trigger (A) is defined as usual. On the right, a second edge trigger (B) is defined with
the same parameters: source, level, edge, and hysteresis. The conditions of the B-trig-
ger are considered when the conditions of the A-trigger are met.
In addition, you can set a delay for the B-trigger ("Trigger").
Remote command:
TRIGger:B:ENABle on page 464
TRIGger:B:SOURce on page 464
TRIGger:B:EDGE:SLOPe on page 464
Trigger
Sets a time delay or event delay for the B-trigger. The instrument waits for that delay
after an A-trigger until it recognizes the B-trigger.
"After time"
Sets the time the instrument waits until it checks the B-trigger condi-
tion.
"After events"
Sets a number of B-trigger events that fulfill the B-trigger condition
but do not cause the trigger. The oscilloscope triggers on the n-th
event, the last of the specified number of events.
Remote command:
TRIGger:B:MODE on page 465
TRIGger:B:DELay on page 465
TRIGger:B:EVENt:COUNt on page 465
6.6 Width trigger
The width trigger compares the pulse width (duration) with given time limits. It detects
pulses with an exact pulse width, pulses shorter or longer than a given time, and also
pulses inside or outside the allowable time range. The pulse width is measured at the
trigger level.
Width trigger
