2. Press the [Save Load] key.
3. Select "Waveforms".

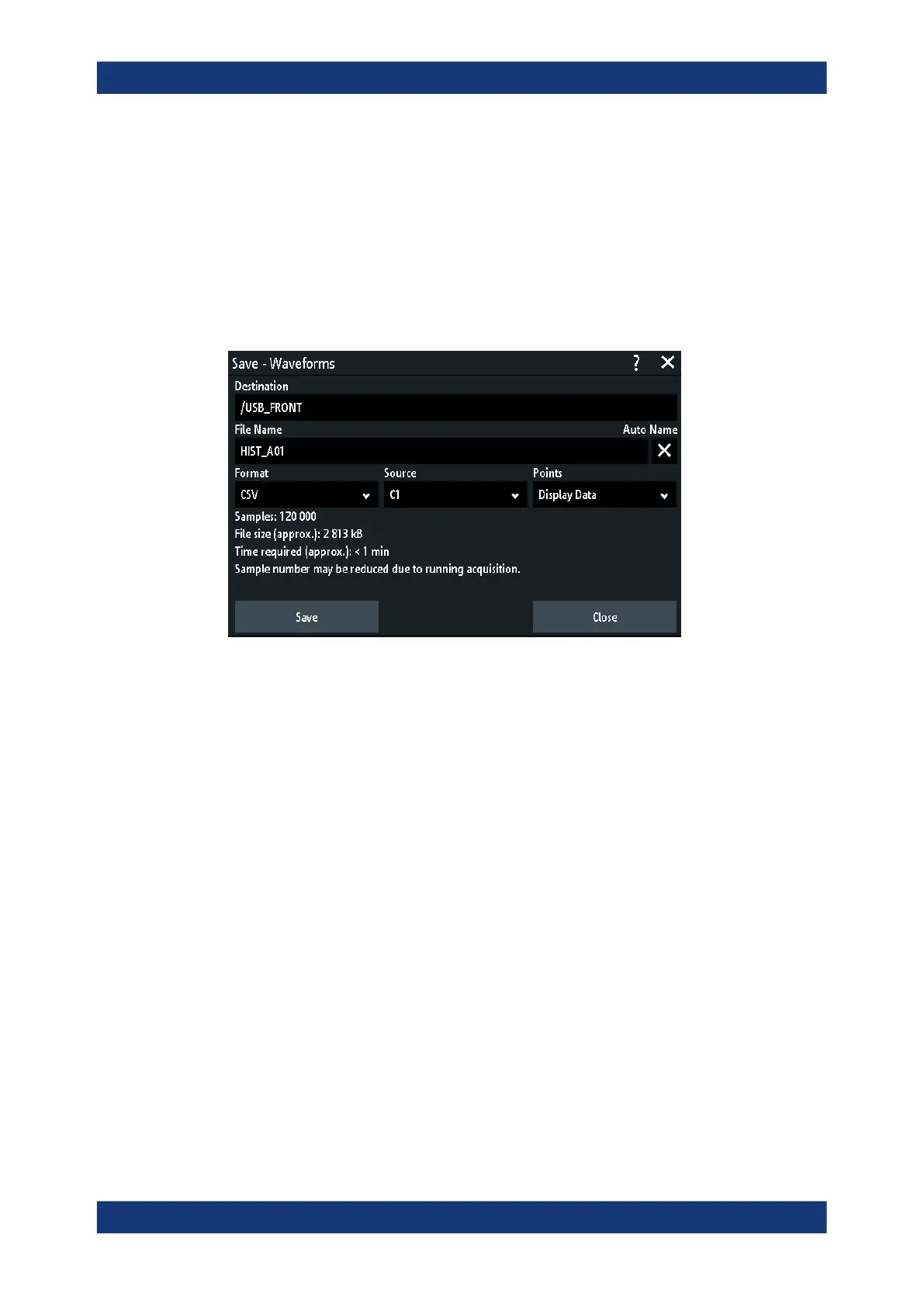

4. Adjust the settings in the dialog box.
5. Tap "Save".
10.2.1 Waveform export settings
Destination
The destination /USB_FRONT is only active, if a USB flash drive is connected to the
front USB port.
Tap and select the target folder. Tap "Accept Dir." to confirm selection. Existing files in
the selected folder are listed and can be deleted here.
Remote command:
EXPort:WFMSave:DESTination on page 581
File Name
Specifies the name of the file to be saved. The default is TRACE01 or a higher number,
depending on existing files in the target directory.
Remote command:
EXPort:WAVeform:NAME on page 582
Format
Selects the file format.
●
"BIN - MSB": Binary data, most significant byte first
●
"BIN - LSB": Binary data, least significant byte first
●
"FLT - MSB": Floating point format, most significant byte first
●
"FLT - LSB": Floating point format, least significant byte first
●
"CSV": Comma-separated values (= default)
●
"TXT": Text file format
To reload waveform data as a reference waveform, it must be stored in CSV format.
Saving waveform data
