Measurements
R&S
®
RTM3000
161User Manual 1335.9090.02 ─ 09
The keypad opens, and you can enter an exact value.
8.3.1 Cursor settings
To open the "Cursor" menu:
a)
Tap the
"Menu" icon in the lower right corner of the screen.
b) Scroll down. Select "Cursor".

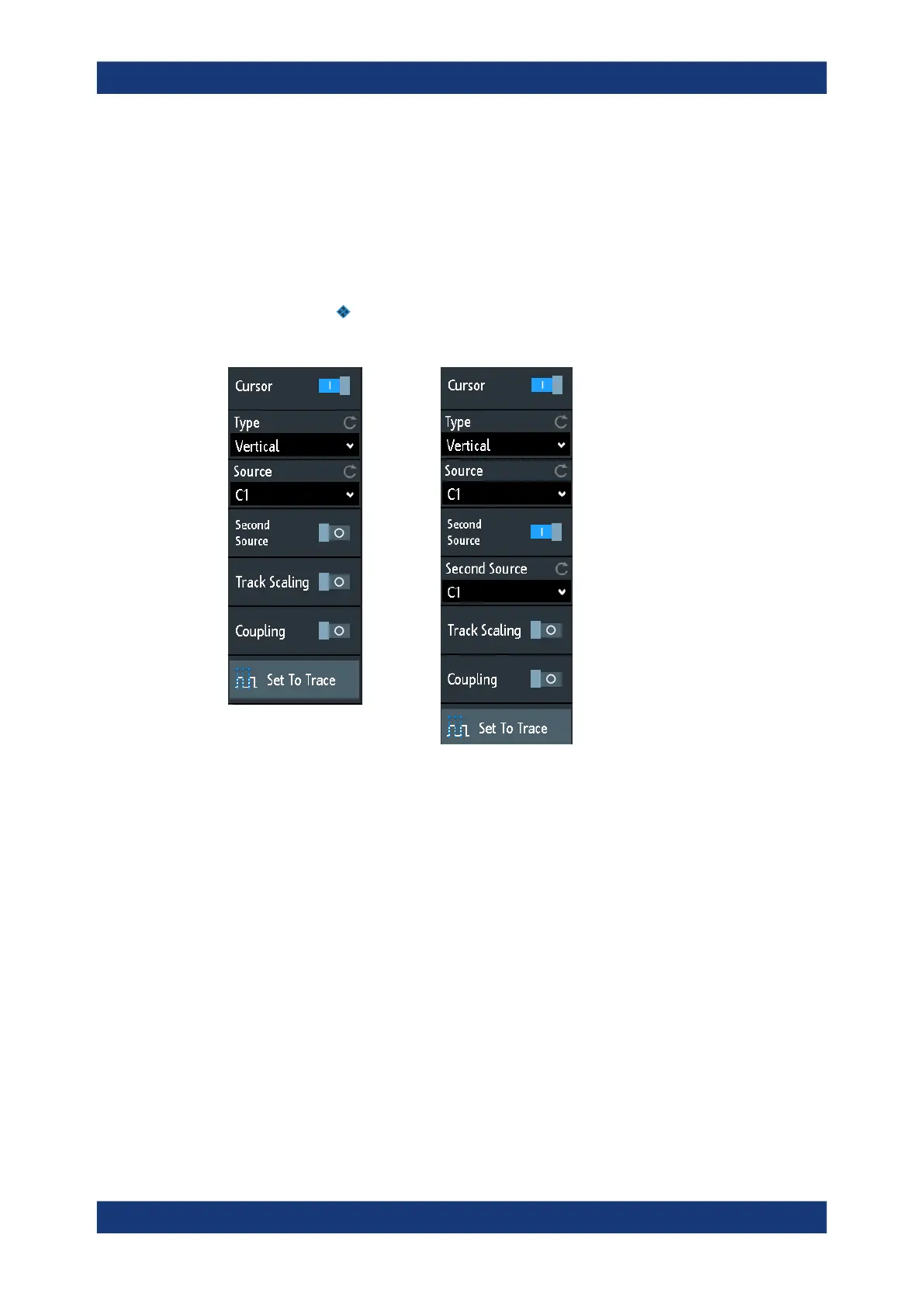

Figure 8-6: Cursor menu, cursor on one source (left), cursor on two sources (right)
Cursor
Activates or deactivates the cursor measurement.
Remote command:
CURSor<m>:STATe on page 530
Type
Selects the cursor type. Depending on the type, different results are displayed in the
result line at the bottom of the display.
The cursor lines can be set to the required position using the "Navigation" rotary knob,
or by dragging a cursor line on the screen.
"Horizontal"
Sets two horizontal cursor lines and measures the voltage values at
the cursor positions, and the difference between the cursor lines.
Results: V1, V2, ΔV (for current measurements: A1, A2, ΔA, for FFT
measurements: L in dBm)
Cursor measurements
