Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
370User Manual 1335.9090.02 ─ 09
e) Scroll down. Select "Power".
To adjust the probes, open the "Probe" menu. For details, see Chapter 14.1.2, "Probe
settings for power measurements", on page 344.

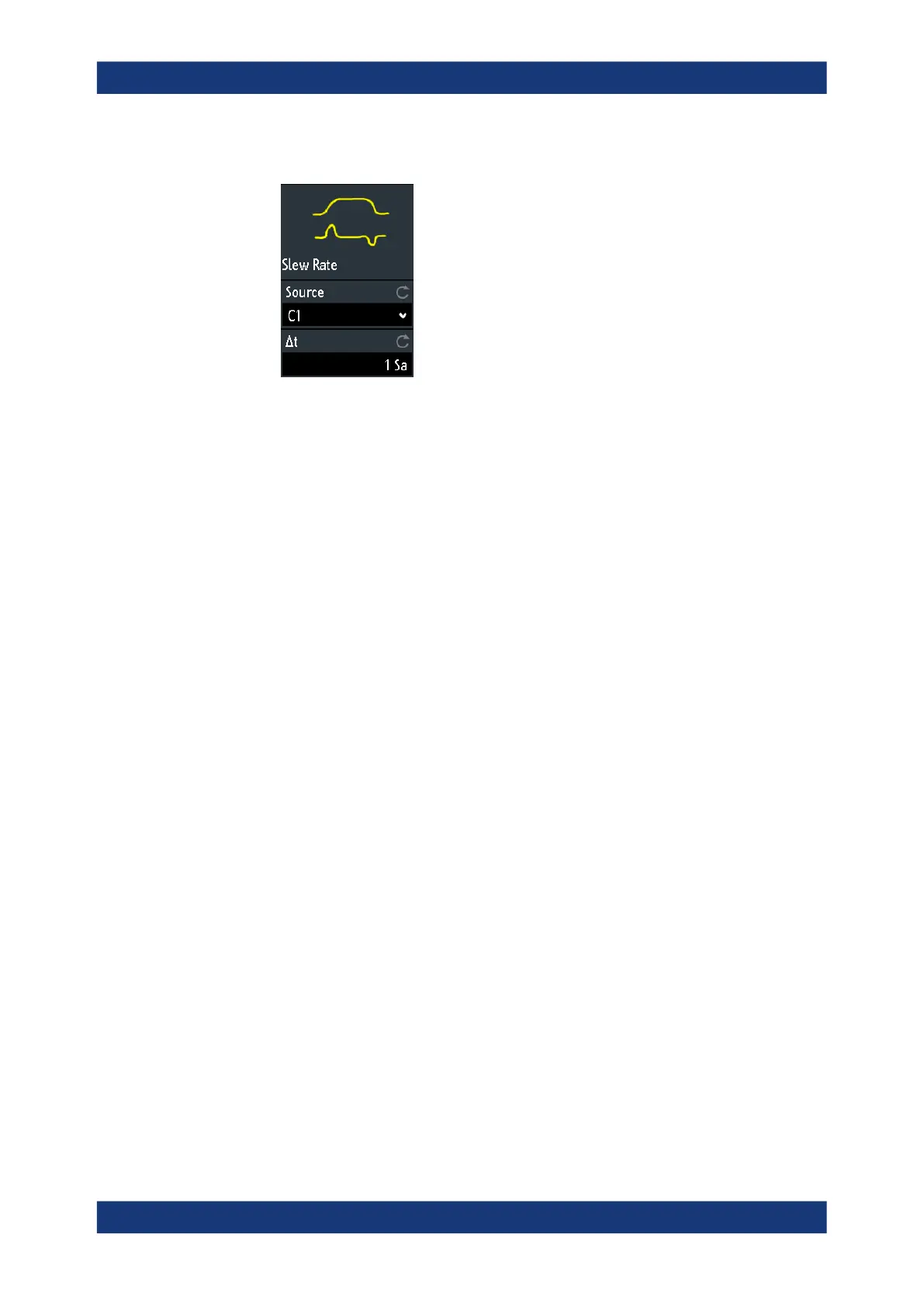

Source
Sets the channel for the source. This can be either a current or a voltage source.
∆t
Sets the delta time.
Remote command:
POWer:SLEWrate:DTIMe on page 746
14.6.2 Modulation
The modulation analysis measures the control pulse signal to a switching device.
14.6.2.1 Modulation results
The results of "Modulation" measurements are:
●
The voltage or the current waveform
●
Numeric measurement results
For a detailed description of the numeric results, see Chapter 14.5.1.1, "Ripple
results", on page 359.
Also, for each measurement result you can enable a statistic evaluation of the mea-
surement results. It returns the current, minimum and maximum measurement values,
the average and standard deviation, and the number of measured waveforms.
14.6.2.2 Configuring modulation measurements
For details of the configuration settings, see Chapter 14.6.2.3, "Modulation analysis
settings", on page 371.
1. Press the Apps Selection key. Tap "Power Analysis".
2. In the "Switching" tab, tap "Modulation".
Switching power measurements
