Signal generation (option R&S RTM-B6)
R&S
®
RTM3000
415User Manual 1335.9090.02 ─ 09
Remote command:
PGENerator:PATTern:FREQuency on page 790
Period
Sets the period of the square wave. If you change the value, the "Frequency" is adjus-
ted accordingly.
Remote command:
PGENerator:PATTern:PERiod on page 789
Polarity
Sets normal or inverted polarity.
Remote command:
PGENerator:PATTern:SQUarewave:POLarity on page 789
Duty Cycle
Sets the duty cycle of the square wave from 1% to 99%.The duty cycle expresses for
what percentage of the period, the signal state is high.
Remote command:
PGENerator:PATTern:SQUarewave:DCYCle on page 789
16.2.3 Settings for counter pattern

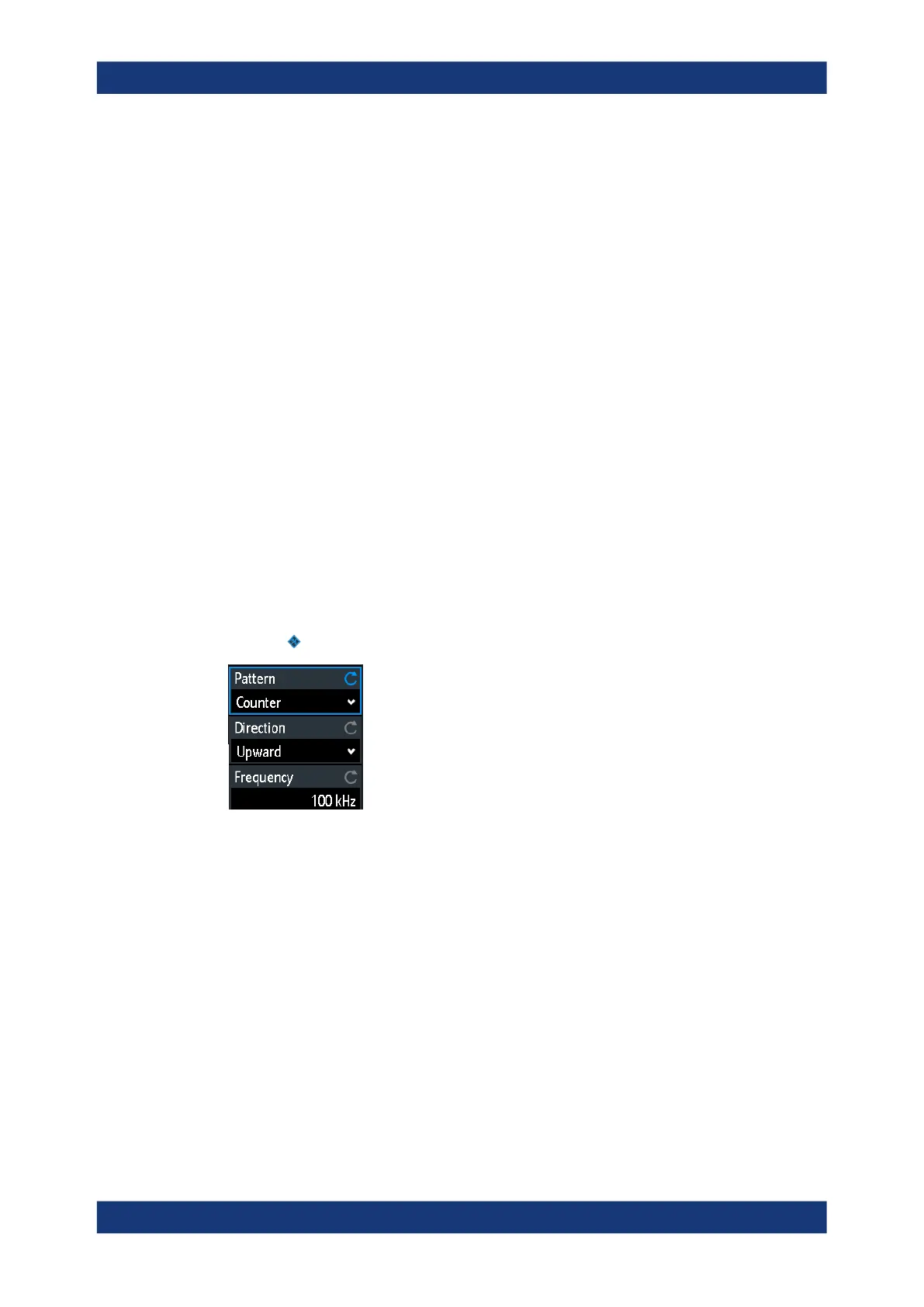

Access:
"Menu" > "Pattern Gen." > "Pattern" = "Counter"
Frequency
Sets the switching frequency, how fast the pattern condition changes. The square
waveforms at the pins have the following resulting frequencies:
●
P0: f/2
●
P1: f/4
●
P2: f/8
●
P3: f/16
Remote command:
PGENerator:PATTern:COUNter:FREQuency on page 790
Direction
Changes the counting direction.
Remote command:
PGENerator:PATTern:COUNter:DIRection on page 790
