Waveform setup
R&S
®
RTM3000
60User Manual 1335.9090.02 ─ 09

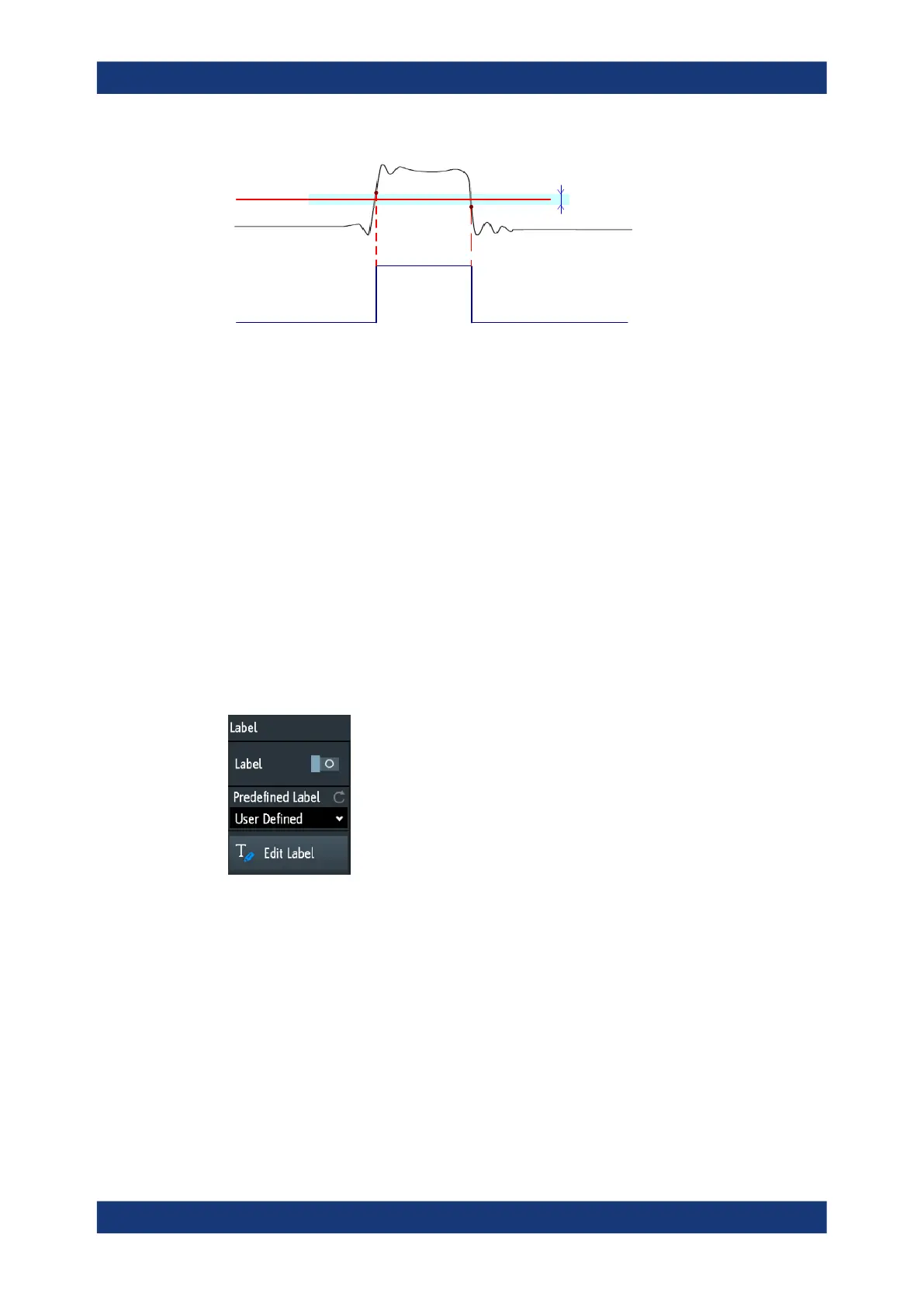

Threshold
Logic 0 Logic 1 Logic 0
Hysteresis
The numerical values of "Small", "Medium", and "Large" hysteresis correspond to the
vertical scale.
Remote command:
CHANnel<m>:THReshold:HYSTeresis on page 441
Find Threshold
The instrument analyzes the channel and sets the threshold for digitization. If no level
can be found, the existing value remains unchanged, and you can set the thresholds
manually.
Remote command:
CHANnel<m>:THReshold:FINDlevel on page 441
5.3.5 Label settings
In the "Label" menu, you can define a name label for the selected waveform.
Access: [Ch <n>] > "Label" (scroll down).
Label
Activates or deactivates the label display. The label is shown at the waveform on the
right edge of the display.
Remote command:
CHANnel<m>:LABel:STATe on page 441
CHANnel<m>:LABel on page 441
Predefined Label
Selects a predefined label text. You can edit the text with "Edit Label".
Vertical setup
