The comparison works like the comparison of the width trigger, see Chapter 6.6, "Width
trigger", on page 85.
Remote command:
SEARch:TRIGger:WIDTh:RANGe on page 491
Width
Sets the reference pulse width, the nominal value for comparisons.
Remote command:
SEARch:TRIGger:WIDTh:WIDTh on page 491
Variation
Sets a range Δt to the reference "Width" if comparison is set to "Equal" or "Not equal".
The instrument finds pulses inside or outside the range width ± Δt.
Remote command:
SEARch:TRIGger:WIDTh:DELTa on page 491
7.5.5 Peak search
The peak search finds pulses exceeding a given peak-to-peak value (magnitude).

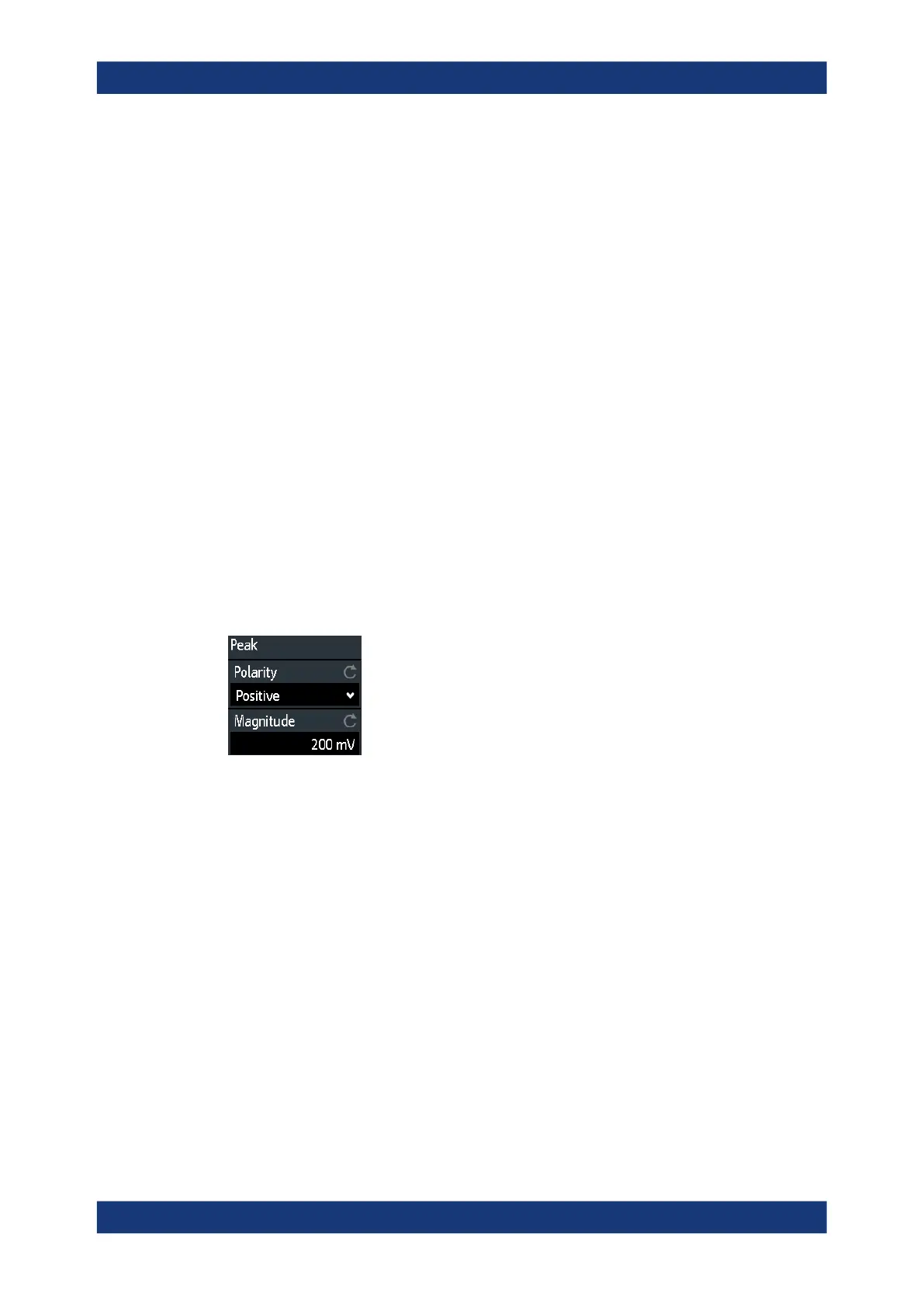

► [Search] > "Search Type" = "Peak" > "Setup"
Polarity
Indicates the polarity of the pulse to be searched for a peak.
Remote command:
SEARch:MEASure:PEAK:POLarity on page 492
Magnitude
Sets the peak-to-peak limit. If the signal exceeds this limit, a search event is listed.
Remote command:
SEARch:MEASure:LEVel:PEAK:MAGNitude on page 492
7.5.6 Rise/fall time search
The rise or fall time search finds slopes with an exact rise or fall time, or rise/fall times
shorter or longer than a given limit, or rise/fall times inside or outside the allowable time
range.
Search
