Signal generation (option R&S RTM-B6)
R&S
®
RTM3000
411User Manual 1335.9090.02 ─ 09
Trigger
Selects the trigger mode. Each time the generator receives a trigger, it outputs a burst
with the number of cycles defined with "N-Cycle".
In the continuous mode, the oscilloscope outputs continuously when the burst is
enabled.
In the manual mode, you have to press "Manual" to output a burst.
16.1.6 Arbitrary setup settings

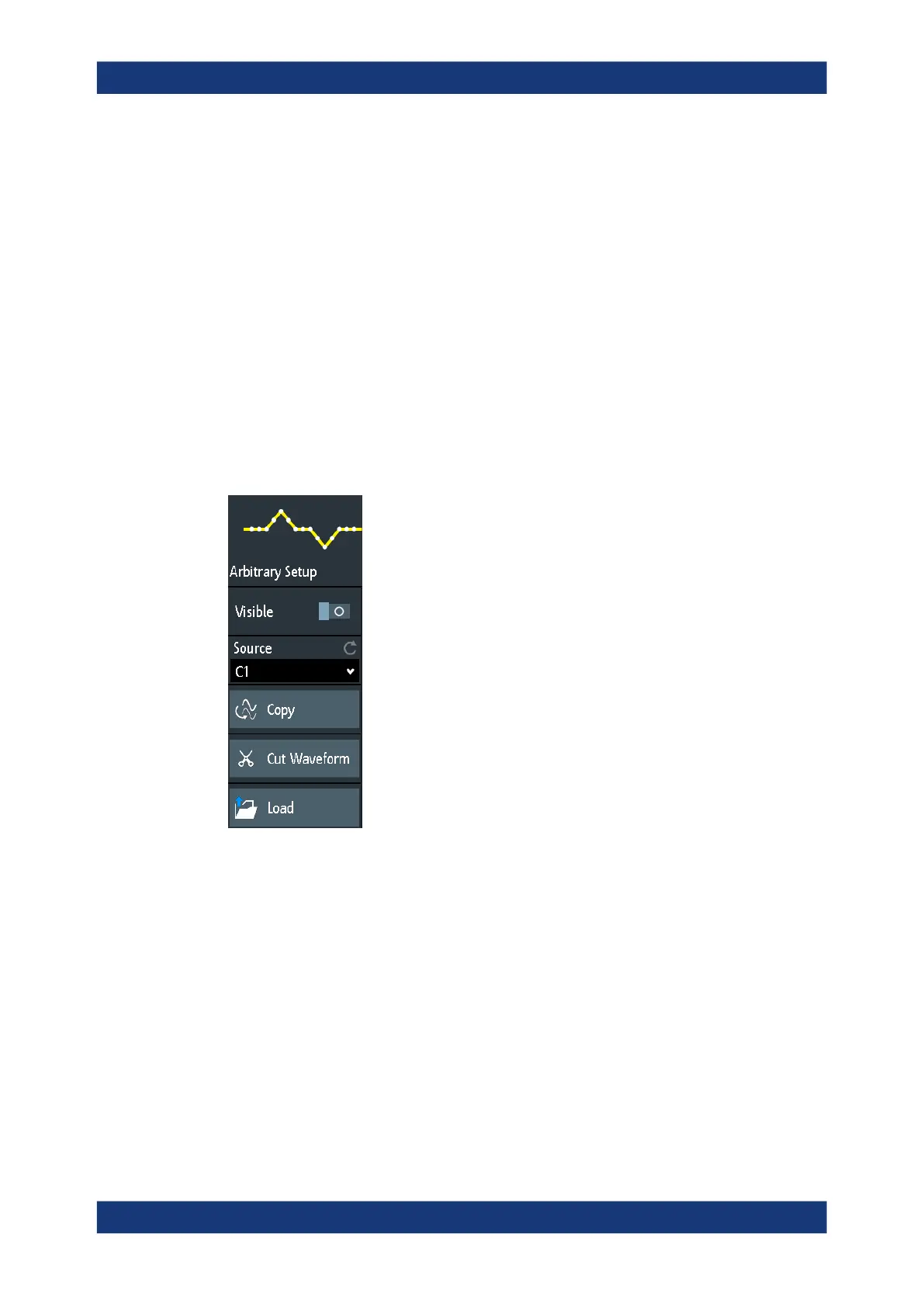

Access: [Gen] key > "Arbitrary Setup"
An arbitrary waveform is copied from an existing waveform on the instrument, or loa-
ded from file. You can display the arbitrary waveform on the screen.
For a step-by-step description of the modulation setup, see "To generate an arbitrary
waveform using the comprehensive menu" on page 402.
Visible
Enables the display of the arbitrary waveform.
Remote command:
WGENerator:ARBitrary:VISible on page 783
Source
Selects the source of the arbitrary waveform. You can load an existing file or load the
current oscilloscope waveform.
Remote command:
WGENerator:ARBitrary:SOURce on page 782
Copy
Loads the waveform from the selected "Signal source" or the waveform part selected
with "Cut Waveform".
