Logic analyzer (option R&S RTM-B1, MSO)
R&S
®
RTM3000
397User Manual 1335.9090.02 ─ 09
15.5 Parallel buses
The R&S RTM3000 can display and decode up to 16 lines of a parallel bus. You can
assign the logic channels to the bus bits individually.
To trigger on parallel buses, use the pattern trigger, see Chapter 6.8, "Pattern trigger",
on page 90.
● Parallel bus configuration......................................................................................397
● Decode results...................................................................................................... 399
15.5.1 Parallel bus configuration
You can configure a parallel bus or a parallel clocked bus. For the parallel clocked bus,
a clock line and an optional chip select line are defined in addition to the other settings.
Access: [Protocol] > "Bus Type" = "Parallel" / "Parallel Clocked" > "Configuration"
The following configuration menu opens:

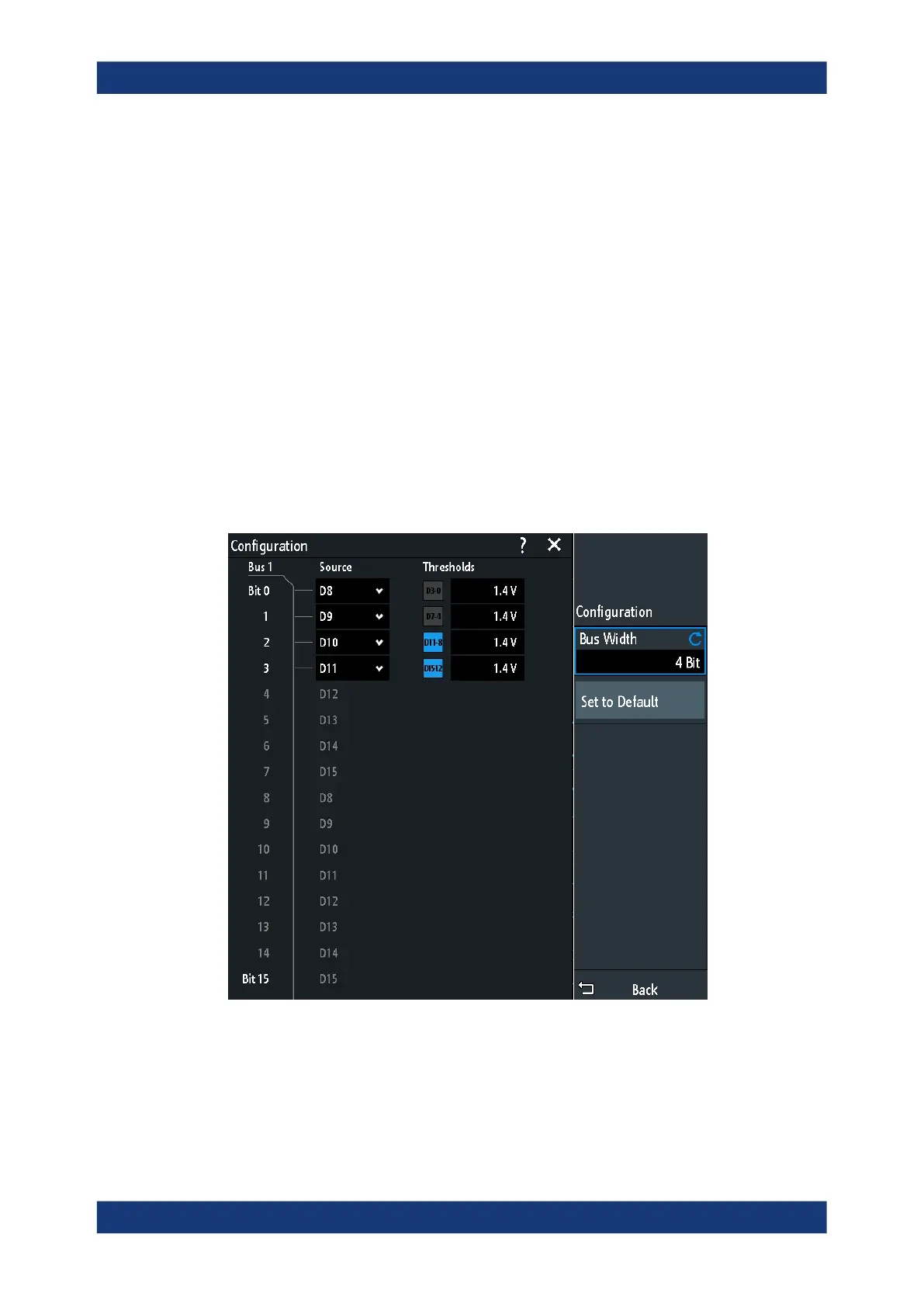

Figure 15-1: Configuration menu Parallel bus
